Hewlett Packard Enterprise ProLiant DL110 Gen11 SPECpower_ssj2008 = 10,523 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 28, 2023
Hardware Availability: Oct-2023 Software Availability: Aug-2023 Publication: Sep 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 4,229,874 304 13,924
90% 90.1% 3,828,327 278 13,759
80% 80.0% 3,397,569 244 13,904
70% 70.0% 2,975,290 224 13,261
60% 59.9% 2,545,811 208 12,241
50% 50.0% 2,123,801 194 10,929
40% 40.0% 1,700,616 182 9,334
30% 30.0% 1,273,306 170 7,486
20% 20.0% 851,557 159 5,367
10% 10.0% 425,591 147 2,903
Active Idle 0 108 0
∑ssj_ops / ∑power = 10,523

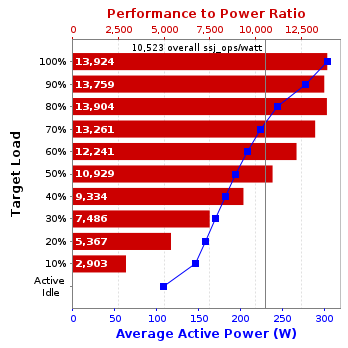

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL110 Gen11
Form Factor: 1U
CPU Name: Intel Xeon Gold 6438N 2.00 GHz (Intel Turbo Boost Technology up to 3.60 GHz)
CPU Characteristics: 32-Core, 2.00 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 32 cores, 1 chip, 32 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 8 x 16GB 1Rx8 PC5-4800; slots 1, 2, 3, 4, 5, 6, 7 and 8
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: HPE 700W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (P44975-B21)
Disk Drive: 1 x 240GB M.2 SSD SATA (P47817-B21)
Disk Controller: embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) Ethernet Server Adapter I350-T4 (P08449-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.8+9-LTS-211, mixed mode)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 32 }
JVM Instances: 32
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: U62 v1.50 (08/09/2023)
Management Firmware Version: 1.50 Jul 19 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
  • Maximum Memory Bus Frequency: 4800
  • Access Control Service: Disabled
  • Workload Profile: Custom
  • Power Regulator: OS control Mode
  • Energy/Performance Bias: Balanced Power
  • Intel DMI Link Frequency: Gen 1 Speed
  • Sub-NUMA Clustering: Enabled SNC2 (2-clusters)
  • Intel UPI Link Enablement: Single Link Operation
  • Intel UPI Link Frequency: Min UPI speed
  • Adjacent Sector Prefetcher: Disabled
  • Maximum PCI Express Speed: PCIe Generation 1.0
    • Management Firmware Settings
    See SUT Notes
    System Under Test Notes
    Controller System
    Hardware
    Hardware Vendor: Hewlett-Packard Company
    Model: ProLiant DL360p Gen8
    CPU Description: Intel Xeon E5-2660 v3
    Memory amount (GB): 128
    Software
    Operating System (OS): Windows Server 2019
    JVM Vendor: Oracle Corporation
    JVM Version: 1.8.0_251-b08
    CCS Version: 1.2.6
    Measurement Devices
    Power Analyzer pwr1
    Hardware Vendor: Yokogawa
    Model: WT210
    Serial Number: 91GB45372
    Connectivity: GPIB vi NI GPIB-USB-HS
    Input Connection: Default
    Metrology Institute: NIST
    Accredited by: TRANSCAT
    Calibration Label: 5-HC75N-60-1
    Date of Calibration: 16-May-2023
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    PTDaemon Version: 1.10.0-82175bac-20220817
    Setup Description: SUT Power Supply
    Temperature Sensor temp1
    Hardware Vendor: Digi International Inc.
    Model: Watchport/H
    Driver Version: 5.70.105.0
    Connectivity: USB
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    Setup Description: 5 mm in front of SUT main intake
    Notes
    None
    Aggregate Electrical and Environmental Data
    Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
    100% 304 25.4
    90% 278 24.9
    80% 244 24.8
    70% 224 24.9
    60% 208 24.7
    50% 194 24.8
    40% 182 25.1
    30% 170 25.2
    20% 159 24.9
    10% 147 24.9
    Active Idle 108 25.2
    Line Standard Minimum Temperature (°C) Elevation (m)
    208V / 60 Hz / 1 phase / 2 wires 24.7 132
    See the Power/Temperature Details Report for additional details.
    Aggregate Performance Data
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     3,747,497
    Calibration 2     4,251,142
    Calibration 3     4,244,851
    ssj_ops@calibrated=4,247,997
    100% 99.6% 4,247,997 4,229,874
    90% 90.1% 3,823,197 3,828,327
    80% 80.0% 3,398,397 3,397,569
    70% 70.0% 2,973,598 2,975,290
    60% 59.9% 2,548,798 2,545,811
    50% 50.0% 2,123,998 2,123,801
    40% 40.0% 1,699,199 1,700,616
    30% 30.0% 1,274,399 1,273,306
    20% 20.0% 849,599 851,557
    10% 10.0% 424,800 425,591
    Active Idle   0 0

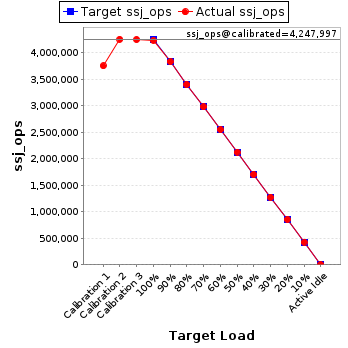

    Graph of results
    See the Host Performance Report for additional details.
