SPECpower_ssj2008

ASUSTeK Computer Inc. RS720A-E12-RS12			SPECpower_ssj2008 = 33,609 overall ssj_ops/watt
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Single Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	May 30, 2023
Hardware Availability:	Jun-2023	Software Availability:	Jan-2023	Publication:	Jun 21, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS720A-E12-RS12
Form Factor:	2U
CPU Name:	AMD EPYC 9754
CPU Characteristics:	128-Core, 2.25GHz, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-R ECC RDIMM; all DIMM slots populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	CHICONY R18-1K6P1WA REV:01 P/N: 0A100-00250800
Disk Drive:	1 x 512GB Samsung P4X4 M.2 PCIE SSD P/N: 03B03-00378600
Disk Controller:	Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed:	1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (See SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP4
OS Version:	5.14.21-150400.22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode), version 11.0.18
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity:	for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 256, physicalCoreId + 257 --membind=0-31}
JVM Instances:	128
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	0902
Management Firmware Version:	1.1.37
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	ASUS Control Center V1.4.3.5

None

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave
Benchmark started via ssh
cpupower frequency-set -g ondemand
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
echo 0 > /proc/sys/kernel/nmi_watchdog
sysctl -w kernel.sched_migration_cost_ns=6000
sysctl -w kernel.sched_min_granularity_ns=10000000
sysctl -w vm.swappiness=50
N/A:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0xAA00205 for the AMD EPYC 9754 processor

Software
Operating System (OS):	Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA, Inc.
Model:	WT210
Serial Number:	91J615902
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	National Measurement Laboratory of the R.O.C.
Accredited by:	OMNIO Calibration Laboratory Ltd.
Calibration Label:	OCL-220624F02901
Date of Calibration:	24-Jun-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to PSU1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50 mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

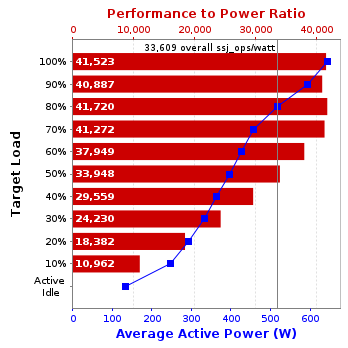

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	644	22.6
90%	593	22.6
80%	517	22.4
70%	456	22.0
60%	426	21.8
50%	397	21.6
40%	365	21.4
30%	333	21.3
20%	293	21.2
10%	246	21.1
Active Idle	132	20.9

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	20.9	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
