ASUSTeK Computer Inc. RS720A-E12-RS12 | SPECpower_ssj2008 = 33,609 overall ssj_ops/watt | ||||
Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | May 30, 2023 |
Hardware Availability: | Jun-2023 | Software Availability: | Jan-2023 | Publication: | Jun 21, 2023 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

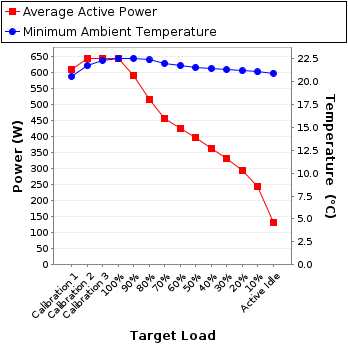

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 611 | 20.6 |
Calibration 2 | 645 | 21.8 |
Calibration 3 | 646 | 22.3 |
100% | 644 | 22.6 |
90% | 593 | 22.6 |
80% | 517 | 22.4 |
70% | 456 | 22.0 |
60% | 426 | 21.8 |
50% | 397 | 21.6 |
40% | 365 | 21.4 |
30% | 333 | 21.3 |
20% | 293 | 21.2 |
10% | 246 | 21.1 |
Active Idle | 132 | 20.9 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | YOKOGAWA, Inc. |
Model: | WT210 |
Serial Number: | 91J615902 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | National Measurement Laboratory of the R.O.C. |
Accredited by: | OMNIO Calibration Laboratory Ltd. |
Calibration Label: | OCL-220624F02901 |
Date of Calibration: | 24-Jun-2022 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.10.0-82175bac-20220817 |
Setup Description: | Connected to PSU1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 223 | 300.0 | 2.78 | 5.0 | 0.995 | 611 | 0.4% |
Calibration 2 | 222 | 300.0 | 2.92 | 5.0 | 0.995 | 645 | 0.4% |
Calibration 3 | 222 | 300.0 | 2.92 | 5.0 | 0.995 | 646 | 0.4% |
100% | 222 | 300.0 | 2.92 | 5.0 | 0.995 | 644 | 0.4% |
90% | 222 | 300.0 | 2.69 | 5.0 | 0.995 | 593 | 0.4% |
80% | 222 | 300.0 | 2.34 | 5.0 | 0.994 | 517 | 0.5% |
70% | 222 | 300.0 | 2.07 | 5.0 | 0.994 | 456 | 0.5% |
60% | 222 | 300.0 | 1.93 | 5.0 | 0.993 | 426 | 0.5% |
50% | 222 | 300.0 | 1.80 | 5.0 | 0.992 | 397 | 0.6% |
40% | 223 | 300.0 | 1.65 | 5.0 | 0.991 | 365 | 0.6% |
30% | 223 | 300.0 | 1.51 | 5.0 | 0.990 | 333 | 0.6% |
20% | 224 | 300.0 | 1.32 | 2.0 | 0.988 | 293 | 0.4% |
10% | 224 | 300.0 | 1.11 | 2.0 | 0.986 | 246 | 0.4% |
Active Idle | 225 | 300.0 | 0.622 | 2.0 | 0.954 | 132 | 0.7% |
