Hewlett Packard Company DL380p Gen8 (Historical System) SPECpower_ssj2008 = 1,603 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jun 6, 2023
Hardware Availability: May-2019 Software Availability: Apr-2023 Publication: Jun 21, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.9% 681,071 280 2,433
90% 89.5% 616,891 266 2,321
80% 79.9% 550,171 248 2,217
70% 69.9% 481,765 232 2,077
60% 59.8% 411,892 218 1,888
50% 49.7% 342,462 206 1,659
40% 40.0% 275,775 198 1,396
30% 30.1% 207,591 190 1,095
20% 20.1% 138,245 182 760
10% 10.1% 69,314 174 399
Active Idle 0 162 0
∑ssj_ops / ∑power = 1,603

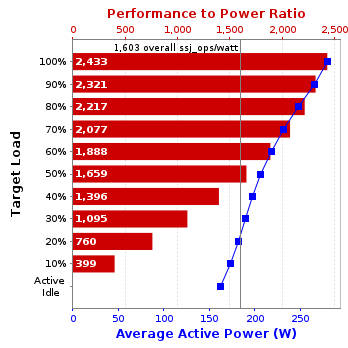

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Hewlett Packard Company
Model: DL380p Gen8 (Historical System)
Form Factor: 2U
CPU Name: Intel Xeon Processor E5-2620
CPU Characteristics: 6-Core, 2.00GHz, 15MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 16GB 2Rx4 PC3-14900; slots 1, 4, 9 and 12 populated on each processor
Power Supply Quantity and Rating (W): 2 x 750
Power Supply Details: HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit
Disk Drive: 5 x HP 600GB 2.5-inch SFF SAS 6Gb/s 10K RPM; 1 x 300GB 2.5-inch SFF SAS 6Gb/s 10K RPM
Disk Controller: 1 x Smart Array P420i Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 10Gb 2-port 561FLR-T Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.19+9-LTS-224, mixed mode)
JVM Command-line Options: -server -Xmx1550m -Xms1800m -Xmn1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAdaptiveSizePolicy -XX:+ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 12 }
JVM Instances: 12
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: P70 (05/24/2019)
Management Firmware Version: 2.79 Oct 26 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_74-b02 (build 25.74-b02, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT500
Serial Number: C3RB03007E
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GW09Z-20-1
Date of Calibration: 27-Jul-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 280 25.8
90% 266 25.4
80% 248 25.2
70% 232 25.5
60% 218 25.1
50% 206 25.1
40% 198 25.5
30% 190 25.2
20% 182 25.2
10% 174 25.6
Active Idle 162 25.9
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 25.1 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     644,829
Calibration 2     690,881
Calibration 3     686,879
ssj_ops@calibrated=688,880
100% 98.9% 688,880 681,071
90% 89.5% 619,992 616,891
80% 79.9% 551,104 550,171
70% 69.9% 482,216 481,765
60% 59.8% 413,328 411,892
50% 49.7% 344,440 342,462
40% 40.0% 275,552 275,775
30% 30.1% 206,664 207,591
20% 20.1% 137,776 138,245
10% 10.1% 68,888 69,314
Active Idle   0 0

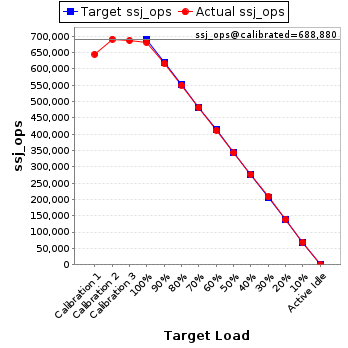

Graph of results
See the Host Performance Report for additional details.
