Hewlett Packard Company DL380p Gen8 (Historical System) ssj_ops@100% = 681,071
ssj_ops@100% per JVM = 56,756
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jun 6, 2023
Hardware Availability: May-2019 Software Availability: Apr-2023 Publication: Jun 21, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     644,829
Calibration 2     690,881
Calibration 3     686,879
ssj_ops@calibrated=688,880
100% 98.9% 688,880 681,071
90% 89.5% 619,992 616,891
80% 79.9% 551,104 550,171
70% 69.9% 482,216 481,765
60% 59.8% 413,328 411,892
50% 49.7% 344,440 342,462
40% 40.0% 275,552 275,775
30% 30.1% 206,664 207,591
20% 20.1% 137,776 138,245
10% 10.1% 68,888 69,314
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Hewlett Packard Company
Model: DL380p Gen8 (Historical System)
Form Factor: 2U
CPU Name: Intel Xeon Processor E5-2620
CPU Characteristics: 6-Core, 2.00GHz, 15MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 16GB 2Rx4 PC3-14900; slots 1, 4, 9 and 12 populated on each processor
Power Supply Quantity and Rating (W): 2 x 750
Power Supply Details: HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit
Disk Drive: 5 x HP 600GB 2.5-inch SFF SAS 6Gb/s 10K RPM; 1 x 300GB 2.5-inch SFF SAS 6Gb/s 10K RPM
Disk Controller: 1 x Smart Array P420i Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 10Gb 2-port 561FLR-T Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.19+9-LTS-224, mixed mode)
JVM Command-line Options: -server -Xmx1550m -Xms1800m -Xmn1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAdaptiveSizePolicy -XX:+ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 12 }
JVM Instances: 12
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: P70 (05/24/2019)
Management Firmware Version: 2.79 Oct 26 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
DL380gen8.001 52,200
DL380gen8.002 57,137
DL380gen8.003 58,212
DL380gen8.004 58,583
DL380gen8.005 59,008
DL380gen8.006 58,280
DL380gen8.007 60,743
DL380gen8.008 55,694
DL380gen8.009 57,128
DL380gen8.010 51,392
DL380gen8.011 60,498
DL380gen8.012 52,198
ssj_ops@100% 681,071
ssj_ops@100% per JVM 56,756

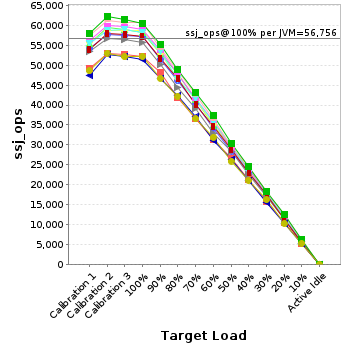

Graph of per-instance results

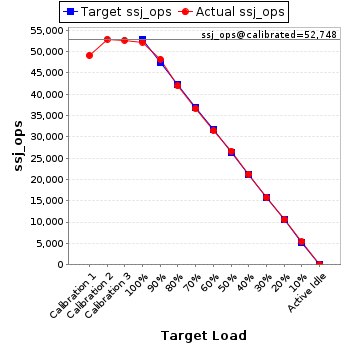

JVM 'DL380gen8.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     49,082
Calibration 2     52,860
Calibration 3     52,636
ssj_ops@calibrated=52,748
100% 99.0% 52,748 52,200
90% 91.3% 47,473 48,169
80% 79.5% 42,199 41,923
70% 69.5% 36,924 36,650
60% 59.7% 31,649 31,485
50% 50.4% 26,374 26,601
40% 40.3% 21,099 21,259
30% 30.0% 15,824 15,817
20% 20.0% 10,550 10,561
10% 10.1% 5,275 5,353
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL380gen8.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     54,243
Calibration 2     57,721
Calibration 3     57,362
ssj_ops@calibrated=57,542
100% 99.3% 57,542 57,137
90% 89.4% 51,787 51,466
80% 80.0% 46,033 46,041
70% 70.4% 40,279 40,507
60% 59.4% 34,525 34,194
50% 49.5% 28,771 28,471
40% 40.0% 23,017 23,000
30% 30.3% 17,262 17,444
20% 20.3% 11,508 11,690
10% 9.8% 5,754 5,613
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL380gen8.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     55,504
Calibration 2     59,331
Calibration 3     58,981
ssj_ops@calibrated=59,156
100% 98.4% 59,156 58,212
90% 89.5% 53,240 52,952
80% 80.9% 47,325 47,876
70% 69.8% 41,409 41,270
60% 59.2% 35,494 34,997
50% 49.6% 29,578 29,331
40% 40.6% 23,662 24,029
30% 30.0% 17,747 17,737
20% 20.5% 11,831 12,120
10% 10.2% 5,916 6,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

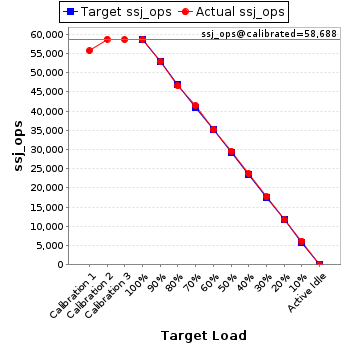

JVM 'DL380gen8.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     55,702
Calibration 2     58,741
Calibration 3     58,635
ssj_ops@calibrated=58,688
100% 99.8% 58,688 58,583
90% 90.1% 52,820 52,865
80% 79.4% 46,951 46,592
70% 70.6% 41,082 41,444
60% 60.1% 35,213 35,244
50% 50.4% 29,344 29,555
40% 40.4% 23,475 23,691
30% 30.1% 17,607 17,650
20% 19.9% 11,738 11,653
10% 10.5% 5,869 6,150
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

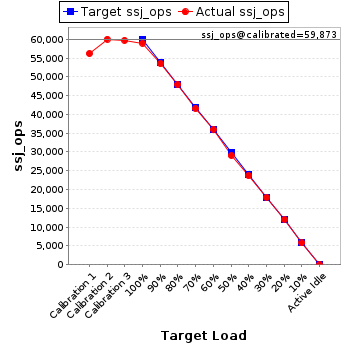

JVM 'DL380gen8.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     56,205
Calibration 2     60,021
Calibration 3     59,725
ssj_ops@calibrated=59,873
100% 98.6% 59,873 59,008
90% 89.5% 53,886 53,559
80% 80.1% 47,899 47,947
70% 69.4% 41,911 41,565
60% 60.1% 35,924 35,988
50% 48.6% 29,937 29,069
40% 39.6% 23,949 23,738
30% 30.0% 17,962 17,950
20% 20.1% 11,975 12,011
10% 9.7% 5,987 5,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

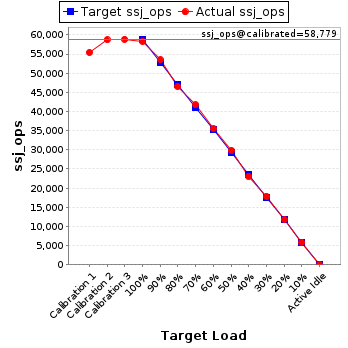

JVM 'DL380gen8.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     55,398
Calibration 2     58,699
Calibration 3     58,859
ssj_ops@calibrated=58,779
100% 99.2% 58,779 58,280
90% 91.0% 52,901 53,506
80% 79.1% 47,023 46,516
70% 71.0% 41,145 41,752
60% 60.5% 35,267 35,534
50% 50.8% 29,390 29,842
40% 39.2% 23,512 23,035
30% 30.4% 17,634 17,861
20% 20.0% 11,756 11,771
10% 10.0% 5,878 5,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL380gen8.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,524
Calibration 2     61,214
Calibration 3     60,805
ssj_ops@calibrated=61,009
100% 99.6% 61,009 60,743
90% 88.9% 54,908 54,259
80% 79.8% 48,807 48,702
70% 69.9% 42,706 42,618
60% 59.7% 36,606 36,426
50% 48.4% 30,505 29,551
40% 40.4% 24,404 24,655
30% 29.9% 18,303 18,235
20% 20.1% 12,202 12,245
10% 10.5% 6,101 6,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL380gen8.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     53,455
Calibration 2     56,649
Calibration 3     56,327
ssj_ops@calibrated=56,488
100% 98.6% 56,488 55,694
90% 88.7% 50,839 50,093
80% 78.6% 45,191 44,382
70% 69.2% 39,542 39,091
60% 58.4% 33,893 32,986
50% 50.3% 28,244 28,434
40% 39.9% 22,595 22,558
30% 30.3% 16,946 17,099
20% 20.2% 11,298 11,390
10% 10.3% 5,649 5,836
Active Idle   0 0

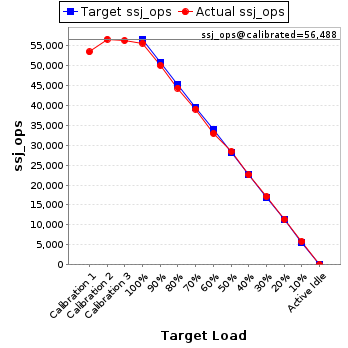

Graph of results
See the JVM Instance Performance Report for additional details.

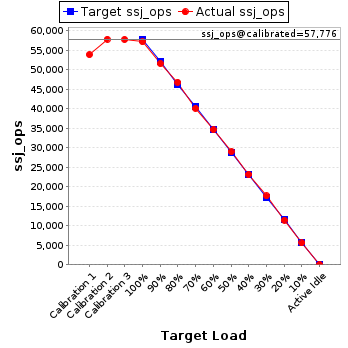

JVM 'DL380gen8.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     53,827
Calibration 2     57,807
Calibration 3     57,745
ssj_ops@calibrated=57,776
100% 98.9% 57,776 57,128
90% 89.2% 51,998 51,551
80% 80.9% 46,221 46,763
70% 69.4% 40,443 40,082
60% 59.9% 34,666 34,596
50% 50.1% 28,888 28,946
40% 40.1% 23,110 23,144
30% 30.5% 17,333 17,617
20% 19.8% 11,555 11,429
10% 9.6% 5,778 5,567
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

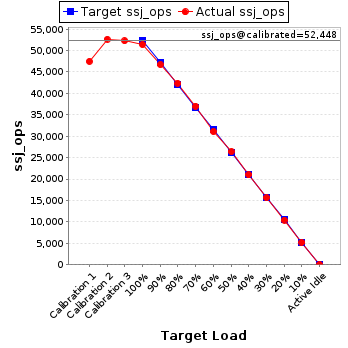

JVM 'DL380gen8.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,481
Calibration 2     52,640
Calibration 3     52,256
ssj_ops@calibrated=52,448
100% 98.0% 52,448 51,392
90% 89.0% 47,203 46,689
80% 80.8% 41,958 42,358
70% 70.6% 36,713 37,029
60% 59.2% 31,469 31,072
50% 50.3% 26,224 26,392
40% 40.0% 20,979 20,976
30% 29.7% 15,734 15,575
20% 19.9% 10,490 10,428
10% 9.9% 5,245 5,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

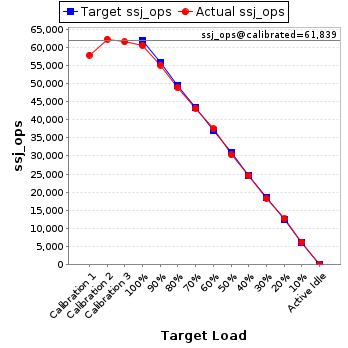

JVM 'DL380gen8.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,852
Calibration 2     62,208
Calibration 3     61,471
ssj_ops@calibrated=61,839
100% 97.8% 61,839 60,498
90% 89.1% 55,655 55,091
80% 79.0% 49,472 48,880
70% 69.8% 43,288 43,190
60% 60.6% 37,104 37,477
50% 49.0% 30,920 30,329
40% 39.7% 24,736 24,536
30% 29.6% 18,552 18,316
20% 20.4% 12,368 12,645
10% 10.1% 6,184 6,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

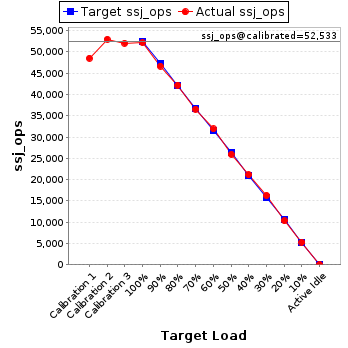

JVM 'DL380gen8.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     48,557
Calibration 2     52,989
Calibration 3     52,077
ssj_ops@calibrated=52,533
100% 99.4% 52,533 52,198
90% 88.9% 47,280 46,691
80% 80.3% 42,026 42,192
70% 69.6% 36,773 36,566
60% 60.7% 31,520 31,893
50% 49.4% 26,266 25,941
40% 40.3% 21,013 21,155
30% 31.0% 15,760 16,289
20% 19.6% 10,507 10,300
10% 10.1% 5,253 5,292
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
