SPECpower_ssj2008

FOXCONN (FII) Mt. Collins			SPECpower_ssj2008 = 10,917 overall ssj_ops/watt
Test Sponsor:	Infobell IT Solutions Pvt. Ltd.	SPEC License #:	6723	Test Method:	Single Node
Tested By:	Infobell IT Solutions Pvt. Ltd.	Test Location:	San Jose, CA, USA	Test Date:	May 22, 2023
Hardware Availability:	Feb-2023	Software Availability:	Jan-2022	Publication:	Jun 9, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	FOXCONN (FII)
Model:	Mt. Collins
Form Factor:	2U
CPU Name:	Ampere Altra Max 64-Bit Multi-Core Processor M128-30
CPU Characteristics:	128 Core, 3.0GHz
CPU Frequency (MHz):	3000
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	256 (1 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	None
Other Cache:	16 MB I+D on chip per chip (SLC)
Memory Amount (GB):	256
# and size of DIMM:	16 x 16 GB
Memory Details:	16 x 16GB 2Rx8 PC4-3200; slots 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 slots populated
Power Supply Quantity and Rating (W):	1 x 650
Power Supply Details:	3Y Power Technology P/N: YM-2651YA10R
Disk Drive:	1 x 960GB M.2 NVMe SSD (SAMSUNG MZ1LB960HAJQ-00007)
Disk Controller:	Non-Volatile Memory Host Controller Interface
# and type of Network Interface Cards (NICs) Installed:	1 x 1Gbps with Intel Corporation I350 Gigabit Network Connection
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Ubuntu 20.04
OS Version:	Kernel 5.4.0-148-generic
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options:	-server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity:	for each i=1-64 {numactl --physcpubind=$(i-1)4,$(i-1)4+1,$(i-1)4+2,$(i-1)4+3 --localalloc }
JVM Instances:	64
JVM Initial Heap (MB):	1500
JVM Maximum Heap (MB):	1500
JVM Address Bits:	64
Boot Firmware Version:	0ACOD013 (SCP: 2.10.20221028)
Management Firmware Version:	0.43.4
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

None

None

Software
Operating System (OS):	Microsoft Windows Server 2019 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	OpenJDK 64-Bit Server VM 18.9 (build 11.0.2+9, mixed mode)
CCS Version:	1.2.6

None

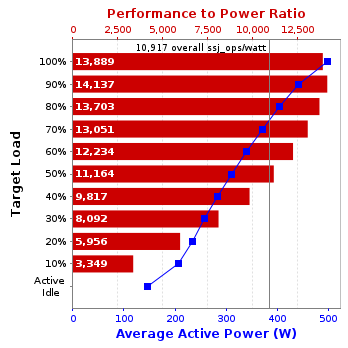

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	499	23.1
90%	442	23.1
80%	406	23.0
70%	372	23.0
60%	341	23.0
50%	311	23.1
40%	283	23.1
30%	257	23.1
20%	234	23.1
10%	207	23.1
Active Idle	145	23.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	23.0	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
