SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| FOXCONN (FII) Mt. Collins | SPECpower_ssj2008 = 10,917 overall ssj_ops/watt | ||||
| Test Sponsor: | Infobell IT Solutions Pvt. Ltd. | SPEC License #: | 6723 | Test Method: | Single Node |
| Tested By: | Infobell IT Solutions Pvt. Ltd. | Test Location: | San Jose, CA, USA | Test Date: | May 22, 2023 |
| Hardware Availability: | Feb-2023 | Software Availability: | Jan-2022 | Publication: | Jun 9, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

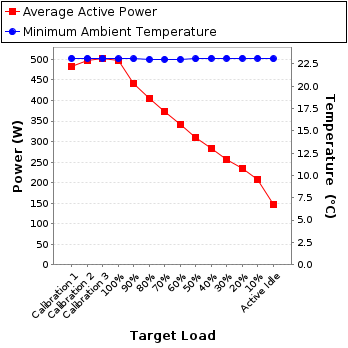

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 483 | 23.1 |
| Calibration 2 | 499 | 23.1 |
| Calibration 3 | 503 | 23.1 |
| 100% | 499 | 23.1 |
| 90% | 442 | 23.1 |
| 80% | 406 | 23.0 |
| 70% | 372 | 23.0 |
| 60% | 341 | 23.0 |
| 50% | 311 | 23.1 |
| 40% | 283 | 23.1 |
| 30% | 257 | 23.1 |
| 20% | 234 | 23.1 |
| 10% | 207 | 23.1 |
| Active Idle | 145 | 23.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C2XM03068V |
| Connectivity: | USB2 |
| Input Connection: | Default |
| Metrology Institute: | TESCOM |
| Accredited by: | 12-May-2023 |
| Calibration Label: | T114528 |
| Date of Calibration: | 12-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButtonLink, Inc. |
| Model: | LinkUSBi + T-Probe |
| Driver Version: | FTDI USB Serial Device 1.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |

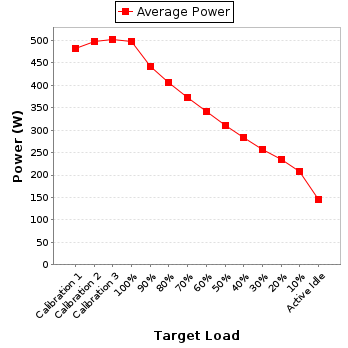

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 2.33 | 5.0 | 0.984 | 483 | 0.3% |
| Calibration 2 | 211 | 300.0 | 2.40 | 5.0 | 0.985 | 499 | 0.3% |
| Calibration 3 | 211 | 300.0 | 2.42 | 5.0 | 0.985 | 503 | 0.3% |
| 100% | 211 | 300.0 | 2.40 | 5.0 | 0.985 | 499 | 0.3% |
| 90% | 211 | 300.0 | 2.13 | 2.0 | 0.982 | 442 | 0.2% |
| 80% | 211 | 300.0 | 1.96 | 2.0 | 0.980 | 406 | 0.2% |
| 70% | 211 | 300.0 | 1.81 | 2.0 | 0.977 | 372 | 0.2% |
| 60% | 211 | 300.0 | 1.66 | 2.0 | 0.973 | 341 | 0.2% |
| 50% | 211 | 300.0 | 1.52 | 2.0 | 0.970 | 311 | 0.2% |
| 40% | 211 | 300.0 | 1.39 | 2.0 | 0.966 | 283 | 0.3% |
| 30% | 211 | 300.0 | 1.27 | 2.0 | 0.961 | 257 | 0.3% |
| 20% | 211 | 300.0 | 1.16 | 2.0 | 0.956 | 234 | 0.3% |
| 10% | 211 | 300.0 | 1.03 | 1.0 | 0.950 | 207 | 0.2% |
| Active Idle | 211 | 300.0 | 0.744 | 1.0 | 0.926 | 145 | 0.3% |
