FOXCONN (FII) Mt. Collins | ssj_ops@100% = 5,224,289 ssj_ops@100% per JVM = 81,630 |
||||
Test Sponsor: | Infobell IT Solutions Pvt. Ltd. | SPEC License #: | 6723 | Test Method: | Single Node |
Tested By: | Infobell IT Solutions Pvt. Ltd. | Test Location: | San Jose, CA, USA | Test Date: | May 22, 2023 |
Hardware Availability: | Feb-2023 | Software Availability: | Jan-2022 | Publication: | Jun 9, 2023 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

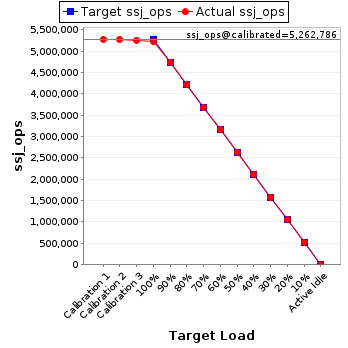

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 5,276,299 | ||
Calibration 2 | 5,271,987 | ||
Calibration 3 | 5,253,585 | ||
ssj_ops@calibrated=5,262,786 | |||
100% | 99.3% | 5,262,786 | 5,224,289 |
90% | 90.0% | 4,736,508 | 4,734,743 |
80% | 80.2% | 4,210,229 | 4,221,999 |
70% | 69.9% | 3,683,950 | 3,677,485 |
60% | 60.0% | 3,157,672 | 3,157,749 |
50% | 50.1% | 2,631,393 | 2,636,717 |
40% | 40.1% | 2,105,115 | 2,110,714 |
30% | 30.0% | 1,578,836 | 1,576,520 |
20% | 20.0% | 1,052,557 | 1,052,971 |
10% | 10.0% | 526,279 | 526,188 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | sut |
Hardware | |
---|---|
Hardware Vendor: | FOXCONN (FII) |
Model: | Mt. Collins |
Form Factor: | 2U |
CPU Name: | Ampere Altra Max 64-Bit Multi-Core Processor M128-30 |
CPU Characteristics: | 128 Core, 3.0GHz |
CPU Frequency (MHz): | 3000 |
CPU(s) Enabled: | 256 cores, 2 chips, 128 cores/chip |
Hardware Threads: | 256 (1 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | None |
Other Cache: | 16 MB I+D on chip per chip (SLC) |
Memory Amount (GB): | 256 |
# and size of DIMM: | 16 x 16 GB |
Memory Details: | 16 x 16GB 2Rx8 PC4-3200; slots 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 slots populated |
Power Supply Quantity and Rating (W): | 1 x 650 |
Power Supply Details: | 3Y Power Technology P/N: YM-2651YA10R |
Disk Drive: | 1 x 960GB M.2 NVMe SSD (SAMSUNG MZ1LB960HAJQ-00007) |
Disk Controller: | Non-Volatile Memory Host Controller Interface |
# and type of Network Interface Cards (NICs) Installed: | 1 x 1Gbps with Intel Corporation I350 Gigabit Network Connection |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Ubuntu 20.04 |
OS Version: | Kernel 5.4.0-148-generic |
Filesystem: | xfs |
JVM Vendor: | Oracle Corporation |
JVM Version: | OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing) |
JVM Command-line Options: | -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap |
JVM Affinity: | for each i=1-64 {numactl --physcpubind=$(i-1)*4,$(i-1)*4+1,$(i-1)*4+2,$(i-1)*4+3 --localalloc } |
JVM Instances: | 64 |
JVM Initial Heap (MB): | 1500 |
JVM Maximum Heap (MB): | 1500 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 0ACOD013 (SCP: 2.10.20221028) |
Management Firmware Version: | 0.43.4 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | None |

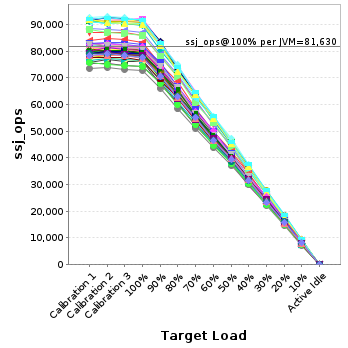

JVM Instance | ssj_ops@100% |
---|---|
amd.001 | 80,431 |
amd.002 | 80,218 |
amd.003 | 81,625 |
amd.004 | 91,197 |
amd.005 | 92,362 |
amd.006 | 80,008 |
amd.007 | 90,795 |
amd.008 | 79,441 |
amd.009 | 79,241 |
amd.010 | 78,223 |
amd.011 | 89,845 |
amd.012 | 90,555 |
amd.013 | 79,118 |
amd.014 | 89,768 |
amd.015 | 76,093 |
amd.016 | 85,971 |
amd.017 | 80,117 |
amd.018 | 81,007 |
amd.019 | 81,841 |
amd.020 | 80,572 |
amd.021 | 80,709 |
amd.022 | 79,525 |
amd.023 | 79,843 |
amd.024 | 91,461 |
amd.025 | 79,963 |
amd.026 | 80,506 |
amd.027 | 74,216 |
amd.028 | 78,588 |
amd.029 | 80,293 |
amd.030 | 87,120 |
amd.031 | 85,682 |
amd.032 | 76,298 |
amd.033 | 81,771 |
amd.034 | 91,432 |
amd.035 | 80,986 |
amd.036 | 82,296 |
amd.037 | 78,941 |
amd.038 | 79,906 |
amd.039 | 81,476 |
amd.040 | 90,229 |
amd.041 | 80,809 |
amd.042 | 72,752 |
amd.043 | 79,097 |
amd.044 | 79,154 |
amd.045 | 78,411 |
amd.046 | 78,182 |
amd.047 | 80,070 |
amd.048 | 76,592 |
amd.049 | 81,756 |
amd.050 | 83,289 |
amd.051 | 81,689 |
amd.052 | 74,281 |
amd.053 | 90,136 |
amd.054 | 81,896 |
amd.055 | 91,778 |
amd.056 | 80,786 |
amd.057 | 76,551 |
amd.058 | 79,081 |
amd.059 | 78,934 |
amd.060 | 78,456 |
amd.061 | 78,370 |
amd.062 | 77,489 |
amd.063 | 77,413 |
amd.064 | 77,648 |
ssj_ops@100% | 5,224,289 |
ssj_ops@100% per JVM | 81,630 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,658 | ||
Calibration 2 | 80,843 | ||
Calibration 3 | 80,307 | ||
ssj_ops@calibrated=80,575 | |||
100% | 99.8% | 80,575 | 80,431 |
90% | 90.2% | 72,518 | 72,703 |
80% | 80.8% | 64,460 | 65,070 |
70% | 70.7% | 56,403 | 56,971 |
60% | 60.8% | 48,345 | 48,975 |
50% | 49.8% | 40,288 | 40,133 |
40% | 40.8% | 32,230 | 32,839 |
30% | 29.9% | 24,173 | 24,094 |
20% | 20.1% | 16,115 | 16,221 |
10% | 10.0% | 8,058 | 8,021 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,866 | ||
Calibration 2 | 80,629 | ||
Calibration 3 | 80,725 | ||
ssj_ops@calibrated=80,677 | |||
100% | 99.4% | 80,677 | 80,218 |
90% | 89.9% | 72,609 | 72,530 |
80% | 80.0% | 64,541 | 64,575 |
70% | 69.7% | 56,474 | 56,202 |
60% | 59.5% | 48,406 | 47,964 |
50% | 50.2% | 40,338 | 40,512 |
40% | 40.2% | 32,271 | 32,437 |
30% | 29.6% | 24,203 | 23,881 |
20% | 20.2% | 16,135 | 16,257 |
10% | 9.5% | 8,068 | 7,629 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,598 | ||
Calibration 2 | 82,268 | ||
Calibration 3 | 81,984 | ||
ssj_ops@calibrated=82,126 | |||
100% | 99.4% | 82,126 | 81,625 |
90% | 90.4% | 73,914 | 74,270 |
80% | 79.6% | 65,701 | 65,402 |
70% | 70.1% | 57,488 | 57,567 |
60% | 60.4% | 49,276 | 49,609 |
50% | 50.6% | 41,063 | 41,579 |
40% | 39.6% | 32,851 | 32,495 |
30% | 30.0% | 24,638 | 24,641 |
20% | 20.1% | 16,425 | 16,472 |
10% | 10.0% | 8,213 | 8,253 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,132 | ||
Calibration 2 | 91,637 | ||
Calibration 3 | 91,940 | ||
ssj_ops@calibrated=91,789 | |||
100% | 99.4% | 91,789 | 91,197 |
90% | 91.1% | 82,610 | 83,642 |
80% | 80.0% | 73,431 | 73,423 |
70% | 69.0% | 64,252 | 63,363 |
60% | 60.0% | 55,073 | 55,101 |
50% | 50.9% | 45,894 | 46,711 |
40% | 40.0% | 36,715 | 36,677 |
30% | 29.9% | 27,537 | 27,436 |
20% | 19.8% | 18,358 | 18,187 |
10% | 10.1% | 9,179 | 9,275 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,189 | ||
Calibration 2 | 92,129 | ||
Calibration 3 | 91,889 | ||
ssj_ops@calibrated=92,009 | |||
100% | 100.4% | 92,009 | 92,362 |
90% | 90.6% | 82,808 | 83,375 |
80% | 80.9% | 73,607 | 74,434 |
70% | 70.4% | 64,406 | 64,769 |
60% | 60.0% | 55,205 | 55,203 |
50% | 49.7% | 46,005 | 45,719 |
40% | 39.8% | 36,804 | 36,663 |
30% | 30.3% | 27,603 | 27,915 |
20% | 19.9% | 18,402 | 18,347 |
10% | 9.6% | 9,201 | 8,804 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,176 | ||
Calibration 2 | 80,416 | ||
Calibration 3 | 80,614 | ||
ssj_ops@calibrated=80,515 | |||
100% | 99.4% | 80,515 | 80,008 |
90% | 90.4% | 72,464 | 72,794 |
80% | 79.4% | 64,412 | 63,940 |
70% | 70.4% | 56,361 | 56,713 |
60% | 60.2% | 48,309 | 48,480 |
50% | 50.5% | 40,258 | 40,670 |
40% | 40.5% | 32,206 | 32,595 |
30% | 29.7% | 24,155 | 23,880 |
20% | 20.1% | 16,103 | 16,183 |
10% | 9.8% | 8,052 | 7,896 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,732 | ||
Calibration 2 | 91,629 | ||
Calibration 3 | 91,330 | ||
ssj_ops@calibrated=91,480 | |||
100% | 99.3% | 91,480 | 90,795 |
90% | 89.7% | 82,332 | 82,099 |
80% | 80.8% | 73,184 | 73,927 |
70% | 69.2% | 64,036 | 63,295 |
60% | 59.7% | 54,888 | 54,643 |
50% | 50.4% | 45,740 | 46,088 |
40% | 40.0% | 36,592 | 36,626 |
30% | 30.3% | 27,444 | 27,722 |
20% | 19.6% | 18,296 | 17,974 |
10% | 10.0% | 9,148 | 9,110 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,126 | ||
Calibration 2 | 80,355 | ||
Calibration 3 | 79,776 | ||
ssj_ops@calibrated=80,066 | |||
100% | 99.2% | 80,066 | 79,441 |
90% | 90.5% | 72,059 | 72,461 |
80% | 80.4% | 64,053 | 64,412 |
70% | 70.4% | 56,046 | 56,342 |
60% | 60.4% | 48,039 | 48,377 |
50% | 50.0% | 40,033 | 40,014 |
40% | 40.0% | 32,026 | 32,066 |
30% | 29.6% | 24,020 | 23,725 |
20% | 20.0% | 16,013 | 16,052 |
10% | 10.1% | 8,007 | 8,071 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,567 | ||
Calibration 2 | 80,236 | ||
Calibration 3 | 79,820 | ||
ssj_ops@calibrated=80,028 | |||
100% | 99.0% | 80,028 | 79,241 |
90% | 89.9% | 72,025 | 71,951 |
80% | 80.5% | 64,022 | 64,442 |
70% | 70.2% | 56,020 | 56,153 |
60% | 59.7% | 48,017 | 47,788 |
50% | 50.3% | 40,014 | 40,284 |
40% | 39.2% | 32,011 | 31,411 |
30% | 30.4% | 24,008 | 24,368 |
20% | 20.0% | 16,006 | 16,005 |
10% | 9.6% | 8,003 | 7,645 |
Active Idle | 0 | 0 |

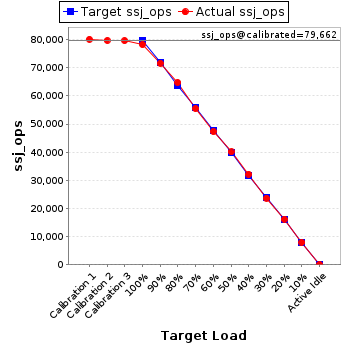

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,133 | ||
Calibration 2 | 79,699 | ||
Calibration 3 | 79,625 | ||
ssj_ops@calibrated=79,662 | |||
100% | 98.2% | 79,662 | 78,223 |
90% | 89.9% | 71,696 | 71,608 |
80% | 81.3% | 63,730 | 64,749 |
70% | 69.6% | 55,764 | 55,464 |
60% | 59.4% | 47,797 | 47,280 |
50% | 50.3% | 39,831 | 40,054 |
40% | 40.4% | 31,865 | 32,188 |
30% | 29.7% | 23,899 | 23,679 |
20% | 20.3% | 15,932 | 16,180 |
10% | 10.0% | 7,966 | 7,948 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,461 | ||
Calibration 2 | 90,813 | ||
Calibration 3 | 90,372 | ||
ssj_ops@calibrated=90,593 | |||
100% | 99.2% | 90,593 | 89,845 |
90% | 90.8% | 81,533 | 82,221 |
80% | 80.5% | 72,474 | 72,885 |
70% | 70.2% | 63,415 | 63,599 |
60% | 60.2% | 54,356 | 54,563 |
50% | 50.4% | 45,296 | 45,667 |
40% | 40.6% | 36,237 | 36,738 |
30% | 29.7% | 27,178 | 26,918 |
20% | 19.8% | 18,119 | 17,918 |
10% | 9.8% | 9,059 | 8,879 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,328 | ||
Calibration 2 | 91,241 | ||
Calibration 3 | 91,132 | ||
ssj_ops@calibrated=91,187 | |||
100% | 99.3% | 91,187 | 90,555 |
90% | 91.1% | 82,068 | 83,077 |
80% | 80.1% | 72,949 | 73,070 |
70% | 69.6% | 63,831 | 63,431 |
60% | 59.4% | 54,712 | 54,125 |
50% | 50.1% | 45,593 | 45,704 |
40% | 39.8% | 36,475 | 36,271 |
30% | 30.5% | 27,356 | 27,771 |
20% | 20.1% | 18,237 | 18,369 |
10% | 9.6% | 9,119 | 8,779 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,453 | ||
Calibration 2 | 80,090 | ||
Calibration 3 | 79,477 | ||
ssj_ops@calibrated=79,783 | |||
100% | 99.2% | 79,783 | 79,118 |
90% | 90.1% | 71,805 | 71,863 |
80% | 80.8% | 63,827 | 64,437 |
70% | 69.8% | 55,848 | 55,728 |
60% | 60.2% | 47,870 | 48,001 |
50% | 49.9% | 39,892 | 39,840 |
40% | 39.7% | 31,913 | 31,646 |
30% | 30.3% | 23,935 | 24,197 |
20% | 19.8% | 15,957 | 15,785 |
10% | 10.2% | 7,978 | 8,177 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 90,918 | ||
Calibration 2 | 90,216 | ||
Calibration 3 | 90,171 | ||
ssj_ops@calibrated=90,194 | |||
100% | 99.5% | 90,194 | 89,768 |
90% | 89.0% | 81,174 | 80,262 |
80% | 80.5% | 72,155 | 72,644 |
70% | 70.6% | 63,136 | 63,666 |
60% | 59.8% | 54,116 | 53,927 |
50% | 49.9% | 45,097 | 44,987 |
40% | 40.3% | 36,077 | 36,336 |
30% | 30.0% | 27,058 | 27,021 |
20% | 19.7% | 18,039 | 17,810 |
10% | 10.0% | 9,019 | 8,979 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 75,859 | ||
Calibration 2 | 76,744 | ||
Calibration 3 | 75,976 | ||

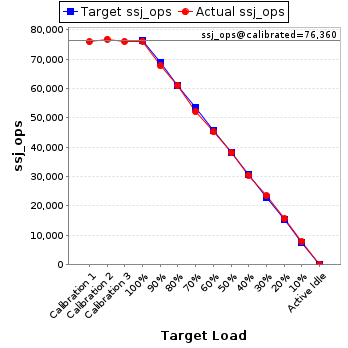

ssj_ops@calibrated=76,360 | |||
100% | 99.6% | 76,360 | 76,093 |
90% | 88.6% | 68,724 | 67,676 |
80% | 79.8% | 61,088 | 60,934 |
70% | 68.3% | 53,452 | 52,129 |
60% | 59.2% | 45,816 | 45,168 |
50% | 49.9% | 38,180 | 38,088 |
40% | 40.0% | 30,544 | 30,513 |
30% | 30.7% | 22,908 | 23,441 |
20% | 20.5% | 15,272 | 15,650 |
10% | 10.3% | 7,636 | 7,875 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 86,815 | ||
Calibration 2 | 87,138 | ||
Calibration 3 | 86,940 | ||
ssj_ops@calibrated=87,039 | |||
100% | 98.8% | 87,039 | 85,971 |
90% | 89.7% | 78,335 | 78,048 |
80% | 80.8% | 69,631 | 70,332 |
70% | 70.6% | 60,927 | 61,418 |
60% | 60.5% | 52,223 | 52,646 |
50% | 50.9% | 43,519 | 44,292 |
40% | 39.4% | 34,816 | 34,315 |
30% | 29.1% | 26,112 | 25,338 |
20% | 20.3% | 17,408 | 17,703 |
10% | 9.8% | 8,704 | 8,546 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,597 | ||
Calibration 2 | 80,543 | ||
Calibration 3 | 80,093 | ||
ssj_ops@calibrated=80,318 | |||
100% | 99.8% | 80,318 | 80,117 |
90% | 89.3% | 72,286 | 71,733 |
80% | 79.8% | 64,254 | 64,064 |
70% | 70.3% | 56,222 | 56,432 |
60% | 60.9% | 48,191 | 48,883 |
50% | 49.2% | 40,159 | 39,487 |
40% | 39.9% | 32,127 | 32,063 |
30% | 29.8% | 24,095 | 23,915 |
20% | 19.6% | 16,064 | 15,711 |
10% | 10.1% | 8,032 | 8,150 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,763 | ||
Calibration 2 | 81,499 | ||
Calibration 3 | 81,142 | ||
ssj_ops@calibrated=81,320 | |||
100% | 99.6% | 81,320 | 81,007 |
90% | 89.1% | 73,188 | 72,430 |
80% | 79.8% | 65,056 | 64,921 |
70% | 70.0% | 56,924 | 56,948 |
60% | 60.9% | 48,792 | 49,491 |
50% | 49.6% | 40,660 | 40,340 |
40% | 40.1% | 32,528 | 32,596 |
30% | 30.1% | 24,396 | 24,454 |
20% | 19.9% | 16,264 | 16,195 |
10% | 9.8% | 8,132 | 7,952 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 82,104 | ||
Calibration 2 | 82,070 | ||
Calibration 3 | 82,171 | ||
ssj_ops@calibrated=82,120 | |||
100% | 99.7% | 82,120 | 81,841 |
90% | 89.1% | 73,908 | 73,144 |
80% | 80.0% | 65,696 | 65,673 |
70% | 69.5% | 57,484 | 57,088 |
60% | 59.9% | 49,272 | 49,204 |
50% | 50.3% | 41,060 | 41,267 |
40% | 40.0% | 32,848 | 32,851 |
30% | 29.5% | 24,636 | 24,195 |
20% | 19.9% | 16,424 | 16,370 |
10% | 9.8% | 8,212 | 8,054 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,869 | ||
Calibration 2 | 81,537 | ||
Calibration 3 | 81,143 | ||
ssj_ops@calibrated=81,340 | |||
100% | 99.1% | 81,340 | 80,572 |
90% | 90.1% | 73,206 | 73,279 |
80% | 78.9% | 65,072 | 64,208 |
70% | 70.5% | 56,938 | 57,366 |
60% | 60.5% | 48,804 | 49,246 |
50% | 49.4% | 40,670 | 40,146 |
40% | 40.6% | 32,536 | 33,019 |
30% | 30.3% | 24,402 | 24,686 |
20% | 20.2% | 16,268 | 16,463 |
10% | 10.0% | 8,134 | 8,147 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 82,514 | ||
Calibration 2 | 81,521 | ||
Calibration 3 | 80,714 | ||
ssj_ops@calibrated=81,118 | |||
100% | 99.5% | 81,118 | 80,709 |
90% | 88.5% | 73,006 | 71,820 |
80% | 79.5% | 64,894 | 64,505 |
70% | 71.7% | 56,783 | 58,174 |
60% | 60.7% | 48,671 | 49,207 |
50% | 50.3% | 40,559 | 40,799 |
40% | 39.9% | 32,447 | 32,350 |
30% | 29.9% | 24,335 | 24,278 |
20% | 19.6% | 16,224 | 15,896 |
10% | 10.3% | 8,112 | 8,392 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,683 | ||
Calibration 2 | 80,245 | ||
Calibration 3 | 80,088 | ||
ssj_ops@calibrated=80,167 | |||
100% | 99.2% | 80,167 | 79,525 |
90% | 90.4% | 72,150 | 72,465 |
80% | 79.2% | 64,133 | 63,519 |
70% | 70.1% | 56,117 | 56,207 |
60% | 60.1% | 48,100 | 48,211 |
50% | 50.2% | 40,083 | 40,212 |
40% | 40.7% | 32,067 | 32,626 |
30% | 29.4% | 24,050 | 23,558 |
20% | 20.5% | 16,033 | 16,464 |
10% | 10.3% | 8,017 | 8,237 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,520 | ||
Calibration 2 | 80,281 | ||
Calibration 3 | 79,943 | ||
ssj_ops@calibrated=80,112 | |||
100% | 99.7% | 80,112 | 79,843 |
90% | 89.1% | 72,101 | 71,358 |
80% | 79.4% | 64,090 | 63,616 |
70% | 70.4% | 56,079 | 56,412 |
60% | 59.4% | 48,067 | 47,613 |
50% | 50.5% | 40,056 | 40,461 |
40% | 40.3% | 32,045 | 32,257 |
30% | 30.0% | 24,034 | 24,045 |
20% | 20.5% | 16,022 | 16,462 |
10% | 10.1% | 8,011 | 8,076 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,320 | ||
Calibration 2 | 92,432 | ||
Calibration 3 | 92,091 | ||
ssj_ops@calibrated=92,262 | |||
100% | 99.1% | 92,262 | 91,461 |
90% | 90.6% | 83,036 | 83,554 |
80% | 79.5% | 73,809 | 73,336 |
70% | 69.7% | 64,583 | 64,266 |
60% | 59.3% | 55,357 | 54,681 |
50% | 49.2% | 46,131 | 45,413 |
40% | 40.2% | 36,905 | 37,075 |
30% | 29.6% | 27,679 | 27,297 |
20% | 19.8% | 18,452 | 18,280 |
10% | 10.1% | 9,226 | 9,300 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,455 | ||
Calibration 2 | 80,506 | ||
Calibration 3 | 80,473 | ||
ssj_ops@calibrated=80,490 | |||
100% | 99.3% | 80,490 | 79,963 |
90% | 89.8% | 72,441 | 72,242 |
80% | 79.6% | 64,392 | 64,110 |
70% | 71.2% | 56,343 | 57,347 |
60% | 60.6% | 48,294 | 48,795 |
50% | 49.0% | 40,245 | 39,470 |
40% | 40.0% | 32,196 | 32,182 |
30% | 30.0% | 24,147 | 24,130 |
20% | 20.1% | 16,098 | 16,183 |
10% | 9.8% | 8,049 | 7,896 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,697 | ||
Calibration 2 | 80,455 | ||
Calibration 3 | 80,659 | ||
ssj_ops@calibrated=80,557 | |||
100% | 99.9% | 80,557 | 80,506 |
90% | 90.3% | 72,501 | 72,727 |
80% | 80.7% | 64,446 | 65,021 |
70% | 70.0% | 56,390 | 56,429 |
60% | 60.3% | 48,334 | 48,566 |
50% | 49.9% | 40,278 | 40,228 |
40% | 40.0% | 32,223 | 32,213 |
30% | 29.7% | 24,167 | 23,911 |
20% | 20.3% | 16,111 | 16,375 |
10% | 9.8% | 8,056 | 7,912 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 75,539 | ||
Calibration 2 | 75,385 | ||
Calibration 3 | 74,684 | ||
ssj_ops@calibrated=75,035 | |||
100% | 98.9% | 75,035 | 74,216 |
90% | 91.1% | 67,531 | 68,379 |
80% | 80.5% | 60,028 | 60,412 |
70% | 69.7% | 52,524 | 52,283 |
60% | 61.3% | 45,021 | 45,982 |
50% | 50.5% | 37,517 | 37,927 |
40% | 39.7% | 30,014 | 29,793 |
30% | 30.3% | 22,510 | 22,700 |
20% | 20.3% | 15,007 | 15,209 |
10% | 10.2% | 7,503 | 7,656 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,292 | ||
Calibration 2 | 79,438 | ||
Calibration 3 | 79,093 | ||
ssj_ops@calibrated=79,266 | |||
100% | 99.1% | 79,266 | 78,588 |
90% | 91.0% | 71,339 | 72,169 |
80% | 80.4% | 63,412 | 63,704 |
70% | 71.1% | 55,486 | 56,342 |
60% | 60.0% | 47,559 | 47,543 |
50% | 50.2% | 39,633 | 39,753 |
40% | 39.8% | 31,706 | 31,520 |
30% | 30.3% | 23,780 | 24,033 |
20% | 20.1% | 15,853 | 15,937 |
10% | 9.8% | 7,927 | 7,779 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,816 | ||
Calibration 2 | 80,601 | ||
Calibration 3 | 80,209 | ||
ssj_ops@calibrated=80,405 | |||
100% | 99.9% | 80,405 | 80,293 |
90% | 89.6% | 72,365 | 72,030 |
80% | 80.7% | 64,324 | 64,889 |
70% | 69.0% | 56,284 | 55,453 |
60% | 60.2% | 48,243 | 48,371 |
50% | 50.1% | 40,203 | 40,277 |
40% | 39.9% | 32,162 | 32,083 |
30% | 30.0% | 24,122 | 24,118 |
20% | 20.1% | 16,081 | 16,137 |
10% | 10.1% | 8,041 | 8,157 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,410 | ||
Calibration 2 | 88,227 | ||
Calibration 3 | 87,870 | ||
ssj_ops@calibrated=88,049 | |||
100% | 98.9% | 88,049 | 87,120 |
90% | 89.5% | 79,244 | 78,847 |
80% | 80.9% | 70,439 | 71,259 |
70% | 69.9% | 61,634 | 61,504 |
60% | 59.8% | 52,829 | 52,688 |
50% | 50.1% | 44,024 | 44,089 |
40% | 39.9% | 35,219 | 35,173 |
30% | 30.0% | 26,415 | 26,398 |
20% | 19.3% | 17,610 | 16,996 |
10% | 9.7% | 8,805 | 8,517 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,017 | ||
Calibration 2 | 87,074 | ||
Calibration 3 | 86,664 | ||
ssj_ops@calibrated=86,869 | |||
100% | 98.6% | 86,869 | 85,682 |
90% | 89.9% | 78,182 | 78,112 |
80% | 81.1% | 69,495 | 70,455 |
70% | 69.4% | 60,808 | 60,276 |
60% | 61.4% | 52,121 | 53,320 |
50% | 50.0% | 43,434 | 43,416 |
40% | 40.5% | 34,748 | 35,143 |
30% | 30.1% | 26,061 | 26,131 |
20% | 20.4% | 17,374 | 17,699 |
10% | 10.3% | 8,687 | 8,979 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 77,133 | ||
Calibration 2 | 77,524 | ||
Calibration 3 | 76,782 | ||
ssj_ops@calibrated=77,153 | |||
100% | 98.9% | 77,153 | 76,298 |
90% | 90.2% | 69,438 | 69,584 |
80% | 80.6% | 61,723 | 62,171 |
70% | 69.9% | 54,007 | 53,968 |
60% | 59.7% | 46,292 | 46,031 |
50% | 50.3% | 38,577 | 38,785 |
40% | 40.4% | 30,861 | 31,148 |
30% | 29.5% | 23,146 | 22,741 |
20% | 20.4% | 15,431 | 15,744 |
10% | 9.7% | 7,715 | 7,512 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,926 | ||
Calibration 2 | 81,976 | ||
Calibration 3 | 81,765 | ||
ssj_ops@calibrated=81,870 | |||
100% | 99.9% | 81,870 | 81,771 |
90% | 89.8% | 73,683 | 73,514 |
80% | 80.1% | 65,496 | 65,557 |
70% | 69.8% | 57,309 | 57,172 |
60% | 59.7% | 49,122 | 48,852 |
50% | 49.9% | 40,935 | 40,885 |
40% | 39.6% | 32,748 | 32,415 |
30% | 30.5% | 24,561 | 24,998 |
20% | 19.7% | 16,374 | 16,090 |
10% | 10.2% | 8,187 | 8,385 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,472 | ||
Calibration 2 | 93,003 | ||
Calibration 3 | 92,581 | ||
ssj_ops@calibrated=92,792 | |||
100% | 98.5% | 92,792 | 91,432 |
90% | 89.4% | 83,513 | 82,984 |
80% | 80.8% | 74,234 | 75,004 |
70% | 69.2% | 64,954 | 64,254 |
60% | 59.7% | 55,675 | 55,411 |
50% | 51.1% | 46,396 | 47,414 |
40% | 40.5% | 37,117 | 37,577 |
30% | 29.5% | 27,838 | 27,381 |
20% | 19.8% | 18,558 | 18,371 |
10% | 10.0% | 9,279 | 9,237 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 83,176 | ||
Calibration 2 | 81,701 | ||
Calibration 3 | 81,505 | ||
ssj_ops@calibrated=81,603 | |||
100% | 99.2% | 81,603 | 80,986 |
90% | 89.2% | 73,442 | 72,751 |
80% | 79.6% | 65,282 | 64,941 |
70% | 69.4% | 57,122 | 56,650 |
60% | 59.7% | 48,962 | 48,684 |
50% | 49.7% | 40,801 | 40,548 |
40% | 40.5% | 32,641 | 33,080 |
30% | 30.1% | 24,481 | 24,598 |
20% | 20.4% | 16,321 | 16,626 |
10% | 10.1% | 8,160 | 8,260 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 83,001 | ||
Calibration 2 | 83,160 | ||
Calibration 3 | 83,103 | ||

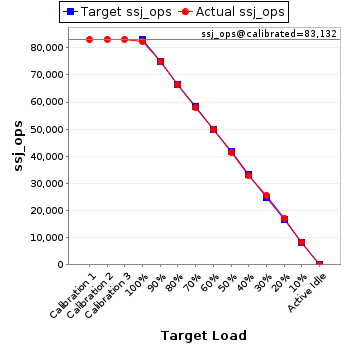

ssj_ops@calibrated=83,132 | |||
100% | 99.0% | 83,132 | 82,296 |
90% | 90.0% | 74,819 | 74,777 |
80% | 79.9% | 66,505 | 66,439 |
70% | 69.6% | 58,192 | 57,890 |
60% | 60.0% | 49,879 | 49,901 |
50% | 49.7% | 41,566 | 41,350 |
40% | 39.5% | 33,253 | 32,858 |
30% | 30.7% | 24,940 | 25,518 |
20% | 20.5% | 16,626 | 17,042 |
10% | 9.9% | 8,313 | 8,225 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,088 | ||
Calibration 2 | 79,212 | ||
Calibration 3 | 78,747 | ||
ssj_ops@calibrated=78,980 | |||
100% | 100.0% | 78,980 | 78,941 |
90% | 89.7% | 71,082 | 70,858 |
80% | 79.3% | 63,184 | 62,658 |
70% | 70.2% | 55,286 | 55,481 |
60% | 60.2% | 47,388 | 47,581 |
50% | 50.2% | 39,490 | 39,655 |
40% | 40.1% | 31,592 | 31,633 |
30% | 30.0% | 23,694 | 23,655 |
20% | 19.3% | 15,796 | 15,231 |
10% | 9.8% | 7,898 | 7,750 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,126 | ||
Calibration 2 | 80,626 | ||
Calibration 3 | 80,570 | ||
ssj_ops@calibrated=80,598 | |||
100% | 99.1% | 80,598 | 79,906 |
90% | 89.7% | 72,538 | 72,269 |
80% | 79.7% | 64,478 | 64,210 |
70% | 69.5% | 56,419 | 56,033 |
60% | 59.9% | 48,359 | 48,314 |
50% | 50.1% | 40,299 | 40,374 |
40% | 39.1% | 32,239 | 31,500 |
30% | 29.8% | 24,179 | 23,989 |
20% | 20.1% | 16,120 | 16,230 |
10% | 9.9% | 8,060 | 7,958 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,465 | ||
Calibration 2 | 81,318 | ||
Calibration 3 | 81,219 | ||
ssj_ops@calibrated=81,269 | |||
100% | 100.3% | 81,269 | 81,476 |
90% | 90.7% | 73,142 | 73,684 |
80% | 80.3% | 65,015 | 65,290 |
70% | 69.1% | 56,888 | 56,163 |
60% | 59.2% | 48,761 | 48,073 |
50% | 50.9% | 40,634 | 41,348 |
40% | 39.9% | 32,507 | 32,434 |
30% | 29.5% | 24,381 | 23,948 |
20% | 19.9% | 16,254 | 16,196 |
10% | 9.9% | 8,127 | 8,033 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,281 | ||
Calibration 2 | 90,465 | ||
Calibration 3 | 90,204 | ||
ssj_ops@calibrated=90,334 | |||
100% | 99.9% | 90,334 | 90,229 |
90% | 90.3% | 81,301 | 81,610 |
80% | 80.2% | 72,267 | 72,469 |
70% | 69.1% | 63,234 | 62,407 |
60% | 60.6% | 54,201 | 54,769 |
50% | 50.3% | 45,167 | 45,477 |
40% | 39.6% | 36,134 | 35,810 |
30% | 30.1% | 27,100 | 27,213 |
20% | 19.9% | 18,067 | 17,940 |
10% | 10.1% | 9,033 | 9,088 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,512 | ||
Calibration 2 | 81,629 | ||
Calibration 3 | 81,541 | ||
ssj_ops@calibrated=81,585 | |||
100% | 99.0% | 81,585 | 80,809 |
90% | 89.6% | 73,426 | 73,079 |
80% | 80.5% | 65,268 | 65,709 |
70% | 70.7% | 57,109 | 57,678 |
60% | 60.2% | 48,951 | 49,079 |
50% | 50.1% | 40,792 | 40,871 |
40% | 40.0% | 32,634 | 32,646 |
30% | 29.9% | 24,475 | 24,385 |
20% | 19.8% | 16,317 | 16,186 |
10% | 10.0% | 8,158 | 8,167 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 73,485 | ||
Calibration 2 | 73,898 | ||
Calibration 3 | 73,154 | ||
ssj_ops@calibrated=73,526 | |||
100% | 98.9% | 73,526 | 72,752 |
90% | 90.0% | 66,173 | 66,165 |
80% | 79.3% | 58,821 | 58,321 |
70% | 69.4% | 51,468 | 51,054 |
60% | 59.5% | 44,116 | 43,769 |
50% | 50.4% | 36,763 | 37,074 |
40% | 40.6% | 29,410 | 29,846 |
30% | 30.1% | 22,058 | 22,140 |
20% | 19.9% | 14,705 | 14,664 |
10% | 9.8% | 7,353 | 7,193 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,970 | ||
Calibration 2 | 79,429 | ||
Calibration 3 | 79,117 | ||
ssj_ops@calibrated=79,273 | |||
100% | 99.8% | 79,273 | 79,097 |
90% | 89.7% | 71,346 | 71,137 |
80% | 79.9% | 63,418 | 63,324 |
70% | 69.2% | 55,491 | 54,833 |
60% | 60.9% | 47,564 | 48,281 |
50% | 51.0% | 39,636 | 40,402 |
40% | 40.1% | 31,709 | 31,764 |
30% | 30.3% | 23,782 | 23,986 |
20% | 20.1% | 15,855 | 15,966 |
10% | 10.1% | 7,927 | 8,000 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,150 | ||
Calibration 2 | 79,720 | ||
Calibration 3 | 79,036 | ||
ssj_ops@calibrated=79,378 | |||
100% | 99.7% | 79,378 | 79,154 |
90% | 90.2% | 71,440 | 71,622 |
80% | 80.5% | 63,503 | 63,916 |
70% | 70.0% | 55,565 | 55,572 |
60% | 59.7% | 47,627 | 47,396 |
50% | 49.8% | 39,689 | 39,523 |
40% | 40.2% | 31,751 | 31,915 |
30% | 29.5% | 23,813 | 23,438 |
20% | 19.9% | 15,876 | 15,786 |
10% | 9.9% | 7,938 | 7,846 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,188 | ||
Calibration 2 | 78,906 | ||
Calibration 3 | 78,632 | ||
ssj_ops@calibrated=78,769 | |||
100% | 99.5% | 78,769 | 78,411 |
90% | 88.7% | 70,892 | 69,867 |
80% | 80.6% | 63,015 | 63,465 |
70% | 71.2% | 55,138 | 56,108 |
60% | 60.4% | 47,262 | 47,600 |
50% | 49.8% | 39,385 | 39,200 |
40% | 41.1% | 31,508 | 32,340 |
30% | 29.6% | 23,631 | 23,335 |
20% | 20.0% | 15,754 | 15,777 |
10% | 10.2% | 7,877 | 8,046 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 77,785 | ||
Calibration 2 | 78,314 | ||
Calibration 3 | 78,457 | ||
ssj_ops@calibrated=78,385 | |||
100% | 99.7% | 78,385 | 78,182 |
90% | 90.4% | 70,547 | 70,826 |
80% | 80.6% | 62,708 | 63,208 |
70% | 69.5% | 54,870 | 54,465 |
60% | 60.2% | 47,031 | 47,172 |
50% | 50.1% | 39,193 | 39,283 |
40% | 39.9% | 31,354 | 31,244 |
30% | 30.4% | 23,516 | 23,805 |
20% | 20.3% | 15,677 | 15,897 |
10% | 10.1% | 7,839 | 7,908 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,940 | ||
Calibration 2 | 81,175 | ||
Calibration 3 | 80,756 | ||
ssj_ops@calibrated=80,966 | |||
100% | 98.9% | 80,966 | 80,070 |
90% | 90.2% | 72,869 | 73,058 |
80% | 80.5% | 64,773 | 65,198 |
70% | 69.8% | 56,676 | 56,507 |
60% | 59.9% | 48,580 | 48,539 |
50% | 50.4% | 40,483 | 40,786 |
40% | 39.5% | 32,386 | 32,020 |
30% | 29.9% | 24,290 | 24,235 |
20% | 20.0% | 16,193 | 16,196 |
10% | 10.2% | 8,097 | 8,282 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 76,422 | ||
Calibration 2 | 77,079 | ||
Calibration 3 | 76,852 | ||
ssj_ops@calibrated=76,966 | |||
100% | 99.5% | 76,966 | 76,592 |
90% | 89.5% | 69,269 | 68,870 |
80% | 79.3% | 61,573 | 61,011 |
70% | 69.2% | 53,876 | 53,251 |
60% | 59.1% | 46,179 | 45,509 |
50% | 49.7% | 38,483 | 38,283 |
40% | 40.0% | 30,786 | 30,751 |
30% | 29.7% | 23,090 | 22,827 |
20% | 20.3% | 15,393 | 15,628 |
10% | 10.0% | 7,697 | 7,700 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 82,723 | ||
Calibration 2 | 81,881 | ||
Calibration 3 | 81,810 | ||
ssj_ops@calibrated=81,846 | |||
100% | 99.9% | 81,846 | 81,756 |
90% | 90.4% | 73,661 | 74,029 |
80% | 80.5% | 65,477 | 65,880 |
70% | 69.8% | 57,292 | 57,144 |
60% | 59.7% | 49,107 | 48,830 |
50% | 49.2% | 40,923 | 40,243 |
40% | 39.6% | 32,738 | 32,431 |
30% | 30.0% | 24,554 | 24,535 |
20% | 19.3% | 16,369 | 15,821 |
10% | 10.0% | 8,185 | 8,196 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 83,883 | ||
Calibration 2 | 84,665 | ||
Calibration 3 | 84,524 | ||
ssj_ops@calibrated=84,595 | |||
100% | 98.5% | 84,595 | 83,289 |
90% | 88.8% | 76,135 | 75,104 |
80% | 81.1% | 67,676 | 68,601 |
70% | 69.2% | 59,216 | 58,501 |
60% | 59.2% | 50,757 | 50,072 |
50% | 50.1% | 42,297 | 42,343 |
40% | 40.2% | 33,838 | 33,991 |
30% | 29.2% | 25,378 | 24,659 |
20% | 20.1% | 16,919 | 16,999 |
10% | 10.6% | 8,459 | 9,000 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 82,884 | ||
Calibration 2 | 83,040 | ||
Calibration 3 | 82,616 | ||
ssj_ops@calibrated=82,828 | |||
100% | 98.6% | 82,828 | 81,689 |
90% | 91.5% | 74,545 | 75,817 |
80% | 80.7% | 66,262 | 66,823 |
70% | 70.3% | 57,980 | 58,210 |
60% | 60.1% | 49,697 | 49,773 |
50% | 50.3% | 41,414 | 41,638 |
40% | 39.8% | 33,131 | 32,927 |
30% | 30.4% | 24,848 | 25,141 |
20% | 20.1% | 16,566 | 16,642 |
10% | 10.0% | 8,283 | 8,321 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 75,669 | ||
Calibration 2 | 75,108 | ||
Calibration 3 | 74,723 | ||
ssj_ops@calibrated=74,915 | |||
100% | 99.2% | 74,915 | 74,281 |
90% | 90.5% | 67,424 | 67,825 |
80% | 80.1% | 59,932 | 59,996 |
70% | 69.9% | 52,441 | 52,336 |
60% | 59.8% | 44,949 | 44,812 |
50% | 50.5% | 37,458 | 37,841 |
40% | 40.6% | 29,966 | 30,407 |
30% | 30.0% | 22,475 | 22,442 |
20% | 20.3% | 14,983 | 15,197 |
10% | 10.3% | 7,492 | 7,742 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,867 | ||
Calibration 2 | 90,678 | ||
Calibration 3 | 90,463 | ||
ssj_ops@calibrated=90,571 | |||
100% | 99.5% | 90,571 | 90,136 |
90% | 90.7% | 81,513 | 82,132 |
80% | 79.9% | 72,456 | 72,322 |
70% | 70.4% | 63,399 | 63,723 |
60% | 60.3% | 54,342 | 54,625 |
50% | 50.0% | 45,285 | 45,298 |
40% | 40.6% | 36,228 | 36,772 |
30% | 29.8% | 27,171 | 27,029 |
20% | 19.7% | 18,114 | 17,804 |
10% | 10.3% | 9,057 | 9,318 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 82,413 | ||
Calibration 2 | 82,744 | ||
Calibration 3 | 82,146 | ||

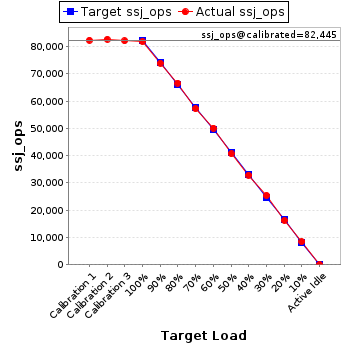

ssj_ops@calibrated=82,445 | |||
100% | 99.3% | 82,445 | 81,896 |
90% | 89.7% | 74,200 | 73,955 |
80% | 80.8% | 65,956 | 66,653 |
70% | 69.4% | 57,711 | 57,237 |
60% | 60.8% | 49,467 | 50,155 |
50% | 49.4% | 41,222 | 40,707 |
40% | 39.9% | 32,978 | 32,888 |
30% | 30.9% | 24,733 | 25,436 |
20% | 19.7% | 16,489 | 16,224 |
10% | 10.2% | 8,244 | 8,437 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,895 | ||
Calibration 2 | 92,464 | ||
Calibration 3 | 92,016 | ||
ssj_ops@calibrated=92,240 | |||
100% | 99.5% | 92,240 | 91,778 |
90% | 90.0% | 83,016 | 82,984 |
80% | 80.5% | 73,792 | 74,220 |
70% | 70.1% | 64,568 | 64,622 |
60% | 60.5% | 55,344 | 55,833 |
50% | 49.7% | 46,120 | 45,872 |
40% | 40.9% | 36,896 | 37,712 |
30% | 30.1% | 27,672 | 27,808 |
20% | 20.2% | 18,448 | 18,615 |
10% | 10.2% | 9,224 | 9,444 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 82,331 | ||
Calibration 2 | 81,982 | ||
Calibration 3 | 81,549 | ||
ssj_ops@calibrated=81,766 | |||
100% | 98.8% | 81,766 | 80,786 |
90% | 90.7% | 73,589 | 74,127 |
80% | 81.2% | 65,413 | 66,383 |
70% | 69.2% | 57,236 | 56,556 |
60% | 59.1% | 49,059 | 48,316 |
50% | 50.4% | 40,883 | 41,230 |
40% | 40.3% | 32,706 | 32,928 |
30% | 29.5% | 24,530 | 24,144 |
20% | 19.6% | 16,353 | 16,029 |
10% | 9.6% | 8,177 | 7,854 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 77,782 | ||
Calibration 2 | 77,750 | ||
Calibration 3 | 77,425 | ||
ssj_ops@calibrated=77,588 | |||
100% | 98.7% | 77,588 | 76,551 |
90% | 88.9% | 69,829 | 69,013 |
80% | 80.8% | 62,070 | 62,671 |
70% | 69.7% | 54,311 | 54,091 |
60% | 59.6% | 46,553 | 46,235 |
50% | 50.4% | 38,794 | 39,124 |
40% | 40.8% | 31,035 | 31,629 |
30% | 30.1% | 23,276 | 23,327 |
20% | 19.8% | 15,518 | 15,335 |
10% | 10.2% | 7,759 | 7,948 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,216 | ||
Calibration 2 | 79,950 | ||
Calibration 3 | 79,914 | ||
ssj_ops@calibrated=79,932 | |||
100% | 98.9% | 79,932 | 79,081 |
90% | 90.5% | 71,939 | 72,371 |
80% | 79.7% | 63,946 | 63,674 |
70% | 69.4% | 55,952 | 55,491 |
60% | 60.5% | 47,959 | 48,391 |
50% | 50.4% | 39,966 | 40,301 |
40% | 40.3% | 31,973 | 32,224 |
30% | 30.1% | 23,980 | 24,081 |
20% | 20.2% | 15,986 | 16,126 |
10% | 9.9% | 7,993 | 7,940 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,804 | ||
Calibration 2 | 80,372 | ||
Calibration 3 | 80,417 | ||
ssj_ops@calibrated=80,394 | |||
100% | 98.2% | 80,394 | 78,934 |
90% | 89.8% | 72,355 | 72,173 |
80% | 81.2% | 64,315 | 65,242 |
70% | 69.9% | 56,276 | 56,234 |
60% | 59.7% | 48,237 | 47,964 |
50% | 50.0% | 40,197 | 40,162 |
40% | 39.8% | 32,158 | 32,012 |
30% | 29.8% | 24,118 | 23,927 |
20% | 19.7% | 16,079 | 15,861 |
10% | 10.0% | 8,039 | 8,031 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,149 | ||
Calibration 2 | 79,044 | ||
Calibration 3 | 78,849 | ||

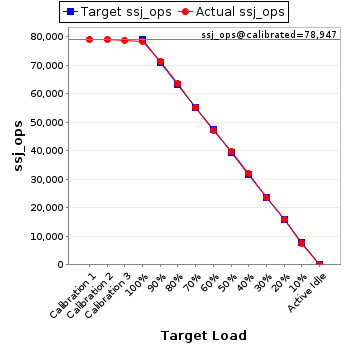

ssj_ops@calibrated=78,947 | |||
100% | 99.4% | 78,947 | 78,456 |
90% | 90.5% | 71,052 | 71,434 |
80% | 80.6% | 63,157 | 63,655 |
70% | 69.8% | 55,263 | 55,141 |
60% | 59.8% | 47,368 | 47,201 |
50% | 50.3% | 39,473 | 39,713 |
40% | 40.5% | 31,579 | 31,984 |
30% | 29.7% | 23,684 | 23,485 |
20% | 20.1% | 15,789 | 15,833 |
10% | 9.6% | 7,895 | 7,558 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,277 | ||
Calibration 2 | 79,250 | ||
Calibration 3 | 78,711 | ||
ssj_ops@calibrated=78,981 | |||
100% | 99.2% | 78,981 | 78,370 |
90% | 89.2% | 71,083 | 70,455 |
80% | 78.9% | 63,185 | 62,292 |
70% | 68.8% | 55,287 | 54,334 |
60% | 60.0% | 47,388 | 47,352 |
50% | 50.3% | 39,490 | 39,766 |
40% | 40.5% | 31,592 | 32,025 |
30% | 30.7% | 23,694 | 24,233 |
20% | 20.0% | 15,796 | 15,787 |
10% | 10.1% | 7,898 | 7,950 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,128 | ||
Calibration 2 | 78,621 | ||
Calibration 3 | 78,353 | ||
ssj_ops@calibrated=78,487 | |||
100% | 98.7% | 78,487 | 77,489 |
90% | 89.7% | 70,638 | 70,430 |
80% | 80.1% | 62,790 | 62,876 |
70% | 70.1% | 54,941 | 55,027 |
60% | 59.1% | 47,092 | 46,372 |
50% | 49.0% | 39,244 | 38,472 |
40% | 40.4% | 31,395 | 31,694 |
30% | 29.9% | 23,546 | 23,483 |
20% | 20.7% | 15,697 | 16,263 |
10% | 10.0% | 7,849 | 7,887 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 78,279 | ||
Calibration 2 | 78,446 | ||
Calibration 3 | 78,536 | ||
ssj_ops@calibrated=78,491 | |||
100% | 98.6% | 78,491 | 77,413 |
90% | 90.3% | 70,642 | 70,877 |
80% | 79.7% | 62,793 | 62,577 |
70% | 69.7% | 54,944 | 54,743 |
60% | 59.4% | 47,095 | 46,656 |
50% | 50.6% | 39,246 | 39,698 |
40% | 40.6% | 31,397 | 31,892 |
30% | 30.0% | 23,547 | 23,576 |
20% | 19.8% | 15,698 | 15,514 |
10% | 9.9% | 7,849 | 7,746 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 78,273 | ||
Calibration 2 | 78,952 | ||
Calibration 3 | 78,397 | ||
ssj_ops@calibrated=78,675 | |||
100% | 98.7% | 78,675 | 77,648 |
90% | 89.6% | 70,807 | 70,493 |
80% | 79.9% | 62,940 | 62,874 |
70% | 70.3% | 55,072 | 55,272 |
60% | 59.2% | 47,205 | 46,554 |
50% | 50.1% | 39,337 | 39,428 |
40% | 40.0% | 31,470 | 31,455 |
30% | 29.4% | 23,602 | 23,144 |
20% | 20.2% | 15,735 | 15,857 |
10% | 10.3% | 7,867 | 8,133 |
Active Idle | 0 | 0 |
