FOXCONN (FII) Mt. Collins ssj_ops@100% = 79,118
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 22, 2023
Hardware Availability: Feb-2023 Software Availability: Jan-2022 Publication: Jun 9, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,453
Calibration 2     80,090
Calibration 3     79,477
ssj_ops@calibrated=79,783
100% 99.2% 79,783 79,118
90% 90.1% 71,805 71,863
80% 80.8% 63,827 64,437
70% 69.8% 55,848 55,728
60% 60.2% 47,870 48,001
50% 49.9% 39,892 39,840
40% 39.7% 31,913 31,646
30% 30.3% 23,935 24,197
20% 19.8% 15,957 15,785
10% 10.2% 7,978 8,177
Active Idle   0 0

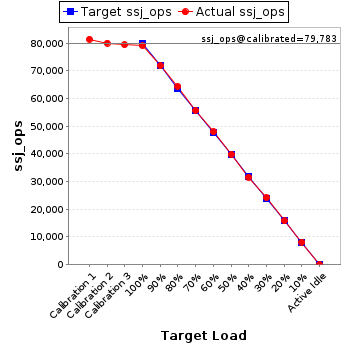

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: sut
Hardware
Hardware Vendor: FOXCONN (FII)
Model: Mt. Collins
Form Factor: 2U
CPU Name: Ampere Altra Max 64-Bit Multi-Core Processor M128-30
CPU Characteristics: 128 Core, 3.0GHz
CPU Frequency (MHz): 3000
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 256 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: None
Other Cache: 16 MB I+D on chip per chip (SLC)
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 x 16GB 2Rx8 PC4-3200; slots 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 slots populated
Power Supply Quantity and Rating (W): 1 x 650
Power Supply Details: 3Y Power Technology P/N: YM-2651YA10R
Disk Drive: 1 x 960GB M.2 NVMe SSD (SAMSUNG MZ1LB960HAJQ-00007)
Disk Controller: Non-Volatile Memory Host Controller Interface
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with Intel Corporation I350 Gigabit Network Connection
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Ubuntu 20.04
OS Version: Kernel 5.4.0-148-generic
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each i=1-64 {numactl --physcpubind=$(i-1)*4,$(i-1)*4+1,$(i-1)*4+2,$(i-1)*4+3 --localalloc }
JVM Instances: 64
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 0ACOD013 (SCP: 2.10.20221028)
Management Firmware Version: 0.43.4
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 5,923,952 1,482
Payment 5,923,951
Order Status 592,395
Delivery 592,395
Stock Level 592,397
Customer Report 5,923,956
Calibration 2 New Order 5,824,745 1,482
Payment 5,824,752
Order Status 582,476
Delivery 582,475
Stock Level 582,476
Customer Report 5,824,748
Calibration 3 New Order 5,780,144 1,482
Payment 5,780,134
Order Status 578,013
Delivery 578,015
Stock Level 578,012
Customer Report 5,780,136
100% 99.2% New Order 5,754,046 1,482
Payment 5,754,040
Order Status 575,405
Delivery 575,404
Stock Level 575,404
Customer Report 5,754,041
90% 90.1% New Order 5,226,421 1,482
Payment 5,226,430
Order Status 522,642
Delivery 522,642
Stock Level 522,643
Customer Report 5,226,434
80% 80.8% New Order 4,686,353 1,482
Payment 4,686,359
Order Status 468,636
Delivery 468,637
Stock Level 468,635
Customer Report 4,686,361
70% 69.8% New Order 4,052,932 1,482
Payment 4,052,924
Order Status 405,293
Delivery 405,291
Stock Level 405,292
Customer Report 4,052,923
60% 60.2% New Order 3,490,982 1,482
Payment 3,490,976
Order Status 349,098
Delivery 349,099
Stock Level 349,098
Customer Report 3,490,982
50% 49.9% New Order 2,897,496 1,482
Payment 2,897,491
Order Status 289,751
Delivery 289,750
Stock Level 289,750
Customer Report 2,897,498
40% 39.7% New Order 2,301,556 1,482
Payment 2,301,559
Order Status 230,156
Delivery 230,155
Stock Level 230,155
Customer Report 2,301,552
30% 30.3% New Order 1,759,807 1,482
Payment 1,759,796
Order Status 175,980
Delivery 175,979
Stock Level 175,982
Customer Report 1,759,805
20% 19.8% New Order 1,148,041 1,482
Payment 1,148,031
Order Status 114,803
Delivery 114,806
Stock Level 114,805
Customer Report 1,148,039
10% 10.2% New Order 594,688 1,482
Payment 594,702
Order Status 59,472
Delivery 59,470
Stock Level 59,470
Customer Report 594,690
Active Idle New Order 0 1,482
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
