Hewlett Packard Enterprise ProLiant DL560 Gen11 SPECpower_ssj2008 = 12,582 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 11, 2023
Hardware Availability: Jun-2023 Software Availability: Jun-2023 Publication: May 3, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.4% 23,466,674 1,480 15,859
90% 89.9% 21,221,467 1,326 16,002
80% 80.0% 18,878,074 1,183 15,955
70% 70.0% 16,515,803 1,075 15,362
60% 60.0% 14,157,181 978 14,475
50% 50.0% 11,797,837 898 13,136
40% 40.0% 9,431,776 824 11,446
30% 30.0% 7,073,121 753 9,396
20% 20.0% 4,729,033 680 6,958
10% 10.0% 2,360,947 605 3,905
Active Idle 0 502 0
∑ssj_ops / ∑power = 12,582

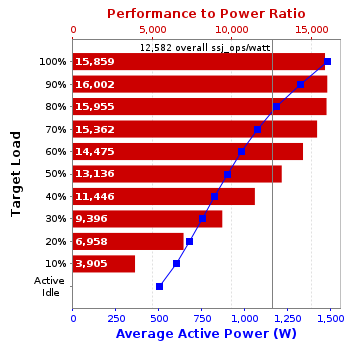

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL560 Gen11
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8490H 1.90 GHz
CPU Characteristics: 60-Core, 1.90 GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 240 cores, 4 chips, 60 cores/chip
Hardware Threads: 480 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 32 x 16384 MB
Memory Details: 16GB 1Rx8 PC5-4800B-R; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 2 x 800
Power Supply Details: HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (P38995-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet Network Adapter I350-T4 for OCP 3.0
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment 18.9 (build 11.0.17+10-LTS-269, mixed mode), version 11.0.17
JVM Command-line Options: -server -Xmn1650m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 120 }
JVM Instances: 240
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: U59 v1.32 (03/09/2023)
Management Firmware Version: 1.30 Feb 28 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 G9
CPU Description: 2x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019 - Version 1809
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_251-b08 (build 25.251-b08, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310
Serial Number: C2QM22005V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GU3Q4-60-1
Date of Calibration: 13-Jun-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 1,480 28.2
90% 1,326 28.2
80% 1,183 28.4
70% 1,075 28.6
60% 978 28.7
50% 898 28.7
40% 824 28.9
30% 753 29.2
20% 680 29.5
10% 605 29.6
Active Idle 502 29.4
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 28.2 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     18,776,207
Calibration 2     23,578,205
Calibration 3     23,630,204
ssj_ops@calibrated=23,604,205
100% 99.4% 23,604,205 23,466,674
90% 89.9% 21,243,784 21,221,467
80% 80.0% 18,883,364 18,878,074
70% 70.0% 16,522,943 16,515,803
60% 60.0% 14,162,523 14,157,181
50% 50.0% 11,802,102 11,797,837
40% 40.0% 9,441,682 9,431,776
30% 30.0% 7,081,261 7,073,121
20% 20.0% 4,720,841 4,729,033
10% 10.0% 2,360,420 2,360,947
Active Idle   0 0

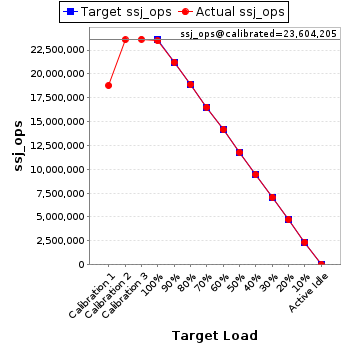

Graph of results
See the Host Performance Report for additional details.
