SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL560 Gen11 | SPECpower_ssj2008 = 12,582 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Apr 11, 2023 |
| Hardware Availability: | Jun-2023 | Software Availability: | Jun-2023 | Publication: | May 3, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

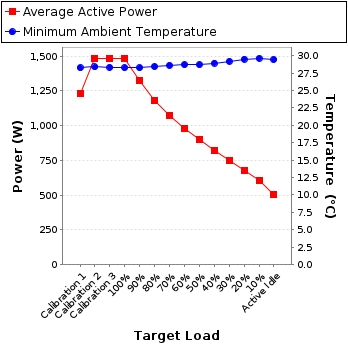

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,234 | 28.2 |
| Calibration 2 | 1,485 | 28.4 |
| Calibration 3 | 1,485 | 28.3 |
| 100% | 1,480 | 28.2 |
| 90% | 1,326 | 28.2 |
| 80% | 1,183 | 28.4 |
| 70% | 1,075 | 28.6 |
| 60% | 978 | 28.7 |
| 50% | 898 | 28.7 |
| 40% | 824 | 28.9 |
| 30% | 753 | 29.2 |
| 20% | 680 | 29.5 |
| 10% | 605 | 29.6 |
| Active Idle | 502 | 29.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QM22005V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-GU3Q4-60-1 |
| Date of Calibration: | 13-Jun-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

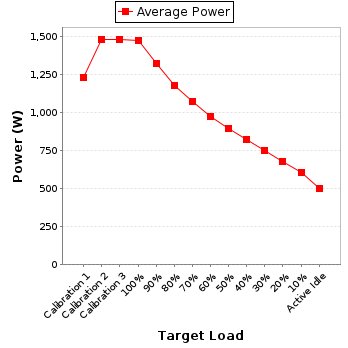

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 6.06 | 10.0 | 0.993 | 1,234 | 0.4% |
| Calibration 2 | 207 | 300.0 | 7.21 | 10.0 | 0.994 | 1,485 | 0.3% |
| Calibration 3 | 207 | 300.0 | 7.22 | 10.0 | 0.994 | 1,485 | 0.3% |
| 100% | 207 | 300.0 | 7.19 | 10.0 | 0.994 | 1,480 | 0.3% |
| 90% | 207 | 300.0 | 6.44 | 10.0 | 0.994 | 1,326 | 0.4% |
| 80% | 207 | 300.0 | 5.75 | 10.0 | 0.993 | 1,183 | 0.4% |
| 70% | 207 | 300.0 | 5.23 | 10.0 | 0.993 | 1,075 | 0.4% |
| 60% | 207 | 300.0 | 4.75 | 10.0 | 0.992 | 978 | 0.4% |
| 50% | 207 | 300.0 | 4.37 | 10.0 | 0.992 | 898 | 0.5% |
| 40% | 207 | 300.0 | 4.01 | 10.0 | 0.991 | 824 | 0.5% |
| 30% | 207 | 300.0 | 3.66 | 5.0 | 0.991 | 753 | 0.3% |
| 20% | 207 | 300.0 | 3.31 | 5.0 | 0.991 | 680 | 0.4% |
| 10% | 207 | 300.0 | 2.95 | 5.0 | 0.990 | 605 | 0.4% |
| Active Idle | 208 | 300.0 | 2.44 | 5.0 | 0.990 | 502 | 0.4% |
