Hewlett Packard Enterprise ProLiant DL380a Gen11 SPECpower_ssj2008 = 12,804 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 11, 2023
Hardware Availability: Mar-2023 Software Availability: Mar-2023 Publication: May 3, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 11,260,532 696 16,186
90% 90.0% 10,175,489 619 16,434
80% 80.0% 9,045,596 551 16,422
70% 69.9% 7,909,453 503 15,720
60% 60.0% 6,786,550 462 14,691
50% 49.9% 5,649,801 426 13,255
40% 40.0% 4,519,531 393 11,493
30% 30.1% 3,401,965 361 9,427
20% 20.0% 2,258,127 327 6,909
10% 10.0% 1,133,766 293 3,869
Active Idle 0 222 0
∑ssj_ops / ∑power = 12,804

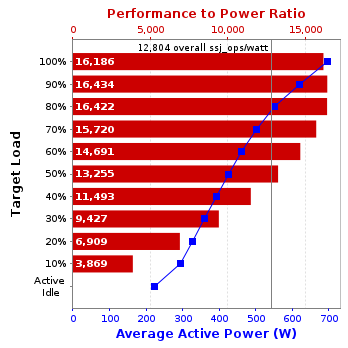

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL380a Gen11
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8480+ 2.0 GHz
CPU Characteristics: 112-Core, 2.0 GHz, 105 MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 112 cores, 2 chips, 56 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 105 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16GB 1Rx8 PC5-4800B-R; slots 1, 2, 4, 5, 8, 9, 11 & 12 on each socket
Power Supply Quantity and Rating (W): 1 x 2200
Power Supply Details: HPE 2200W Flex Slot Titanium Hot Plug Power Supply Kit (P44712-B21)
Disk Drive: 1 x HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static Multi Vendor SSD (P47838-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS-1, mixed mode)
JVM Command-line Options: -server -Xmn1550m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 112 }
JVM Instances: 112
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: U58 v1.30 (03/01/2023)
Management Firmware Version: 1.30 Feb 28 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019 - Version 1809
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310
Serial Number: C2QG23050V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GR9ET-60-1
Date of Calibration: 17-May-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 696 24.9
90% 619 25.0
80% 551 24.8
70% 503 24.8
60% 462 24.8
50% 426 24.9
40% 393 24.8
30% 361 24.5
20% 327 23.8
10% 293 23.8
Active Idle 222 24.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 23.8 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,701,442
Calibration 2     11,299,826
Calibration 3     11,324,582
ssj_ops@calibrated=11,312,204
100% 99.5% 11,312,204 11,260,532
90% 90.0% 10,180,983 10,175,489
80% 80.0% 9,049,763 9,045,596
70% 69.9% 7,918,543 7,909,453
60% 60.0% 6,787,322 6,786,550
50% 49.9% 5,656,102 5,649,801
40% 40.0% 4,524,881 4,519,531
30% 30.1% 3,393,661 3,401,965
20% 20.0% 2,262,441 2,258,127
10% 10.0% 1,131,220 1,133,766
Active Idle   0 0

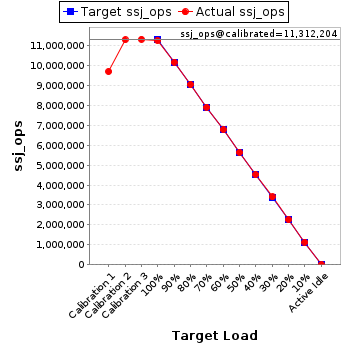

Graph of results
See the Host Performance Report for additional details.
