SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL380a Gen11 | SPECpower_ssj2008 = 12,804 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Apr 11, 2023 |
| Hardware Availability: | Mar-2023 | Software Availability: | Mar-2023 | Publication: | May 3, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

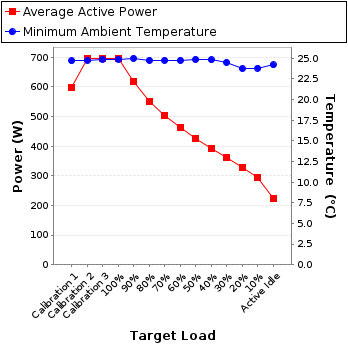

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 597 | 24.7 |
| Calibration 2 | 696 | 24.8 |
| Calibration 3 | 696 | 24.9 |
| 100% | 696 | 24.9 |
| 90% | 619 | 25.0 |
| 80% | 551 | 24.8 |
| 70% | 503 | 24.8 |
| 60% | 462 | 24.8 |
| 50% | 426 | 24.9 |
| 40% | 393 | 24.8 |
| 30% | 361 | 24.5 |
| 20% | 327 | 23.8 |
| 10% | 293 | 23.8 |
| Active Idle | 222 | 24.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QG23050V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-GR9ET-60-1 |
| Date of Calibration: | 17-May-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 2.88 | 5.0 | 0.990 | 597 | 0.4% |
| Calibration 2 | 211 | 300.0 | 3.32 | 5.0 | 0.993 | 696 | 0.3% |
| Calibration 3 | 211 | 300.0 | 3.33 | 5.0 | 0.993 | 696 | 0.3% |
| 100% | 211 | 300.0 | 3.32 | 5.0 | 0.993 | 696 | 0.3% |
| 90% | 211 | 300.0 | 2.96 | 5.0 | 0.991 | 619 | 0.4% |
| 80% | 211 | 300.0 | 2.64 | 5.0 | 0.989 | 551 | 0.4% |
| 70% | 211 | 300.0 | 2.41 | 5.0 | 0.987 | 503 | 0.4% |
| 60% | 211 | 300.0 | 2.21 | 5.0 | 0.987 | 462 | 0.5% |
| 50% | 212 | 300.0 | 2.05 | 5.0 | 0.985 | 426 | 0.5% |
| 40% | 211 | 300.0 | 1.89 | 5.0 | 0.983 | 393 | 0.5% |
| 30% | 211 | 300.0 | 1.74 | 5.0 | 0.981 | 361 | 0.6% |
| 20% | 211 | 300.0 | 1.58 | 5.0 | 0.980 | 327 | 0.6% |
| 10% | 211 | 300.0 | 1.42 | 2.0 | 0.979 | 293 | 0.3% |
| Active Idle | 212 | 300.0 | 1.09 | 2.0 | 0.965 | 222 | 0.4% |
