Hewlett Packard Enterprise ProLiant DL345 Gen11 SPECpower_ssj2008 = 22,178 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 25, 2022
Hardware Availability: Dec-2022 Software Availability: Dec-2022 Publication: Nov 10, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.4% 10,035,127 346 28,973
90% 89.9% 9,079,152 331 27,419
80% 80.1% 8,084,356 304 26,591
70% 70.0% 7,063,045 273 25,837
60% 59.9% 6,052,561 249 24,285
50% 50.1% 5,057,886 228 22,143
40% 40.0% 4,037,635 208 19,392
30% 30.0% 3,027,861 188 16,138
20% 20.0% 2,019,142 163 12,395
10% 10.0% 1,006,146 138 7,313
Active Idle 0 72.0 0
∑ssj_ops / ∑power = 22,178
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL345 Gen11
Form Factor: 2U
CPU Name: AMD EPYC 9654P 2.40 GHz
CPU Characteristics: 96-Core, 2.40 GHz, 384MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 96 cores, 1 chip, 96 cores/chip
Hardware Threads: 192 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-4800B-R; all DIMM slots populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter (P08449-B21)
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.3532)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.2+8-LTS-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE [0-11] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 48
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: A56 v1.10 (10/14/2022)
Management Firmware Version: 1.10 Oct 09 2022
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5018419, HPE ProLiant Agentless Management Service for Windows X64
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Micorsoft Windows Server 2012 R2 Standard (Version 6.3.9600, Build 9600)
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_91-b15 (build 25.91-b15, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GT25H-40-1
Date of Calibration: 20-May-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 346 22.9
90% 331 23.1
80% 304 23.2
70% 273 23.2
60% 249 23.6
50% 228 23.8
40% 208 23.8
30% 188 24.2
20% 163 24.4
10% 138 24.3
Active Idle 72.0 24.5
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.9 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,364,825
Calibration 2     10,102,425
Calibration 3     10,091,476
ssj_ops@calibrated=10,096,951
100% 99.4% 10,096,951 10,035,127
90% 89.9% 9,087,255 9,079,152
80% 80.1% 8,077,560 8,084,356
70% 70.0% 7,067,865 7,063,045
60% 59.9% 6,058,170 6,052,561
50% 50.1% 5,048,475 5,057,886
40% 40.0% 4,038,780 4,037,635
30% 30.0% 3,029,085 3,027,861
20% 20.0% 2,019,390 2,019,142
10% 10.0% 1,009,695 1,006,146
Active Idle   0 0

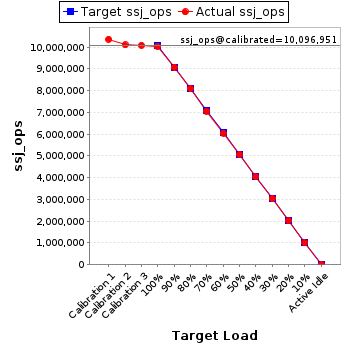

Graph of results
See the Host Performance Report for additional details.
