SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL345 Gen11 | SPECpower_ssj2008 = 22,178 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 25, 2022 |
| Hardware Availability: | Dec-2022 | Software Availability: | Dec-2022 | Publication: | Nov 10, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

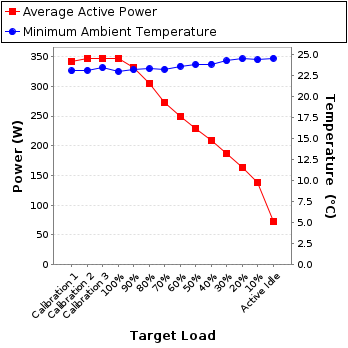

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 342 | 23.0 |
| Calibration 2 | 347 | 23.1 |
| Calibration 3 | 347 | 23.4 |
| 100% | 346 | 22.9 |
| 90% | 331 | 23.1 |
| 80% | 304 | 23.2 |
| 70% | 273 | 23.2 |
| 60% | 249 | 23.6 |
| 50% | 228 | 23.8 |
| 40% | 208 | 23.8 |
| 30% | 188 | 24.2 |
| 20% | 163 | 24.4 |
| 10% | 138 | 24.3 |
| Active Idle | 72.0 | 24.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB47168 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-GT25H-40-1 |
| Date of Calibration: | 20-May-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supplies 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

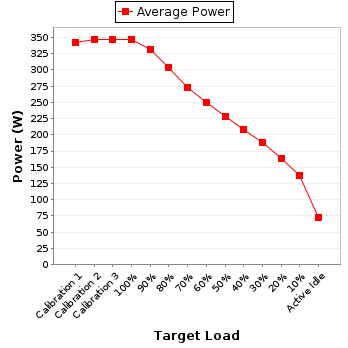

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 1.70 | 2.0 | 0.967 | 342 | 0.4% |
| Calibration 2 | 208 | 300.0 | 1.73 | 2.0 | 0.968 | 347 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.72 | 2.0 | 0.968 | 347 | 0.4% |
| 100% | 208 | 300.0 | 1.72 | 2.0 | 0.968 | 346 | 0.4% |
| 90% | 208 | 300.0 | 1.65 | 2.0 | 0.965 | 331 | 0.4% |
| 80% | 209 | 300.0 | 1.52 | 2.0 | 0.961 | 304 | 0.4% |
| 70% | 209 | 300.0 | 1.37 | 2.0 | 0.954 | 273 | 0.4% |
| 60% | 209 | 300.0 | 1.26 | 2.0 | 0.946 | 249 | 0.5% |
| 50% | 209 | 300.0 | 1.16 | 2.0 | 0.940 | 228 | 0.5% |
| 40% | 209 | 300.0 | 1.07 | 2.0 | 0.930 | 208 | 0.5% |
| 30% | 209 | 300.0 | 0.979 | 2.0 | 0.916 | 188 | 0.6% |
| 20% | 209 | 300.0 | 0.871 | 2.0 | 0.895 | 163 | 0.6% |
| 10% | 208 | 300.0 | 0.768 | 1.0 | 0.862 | 138 | 0.5% |
| Active Idle | 208 | 300.0 | 0.517 | 1.0 | 0.670 | 72.0 | 0.8% |
