SPECpower_ssj2008

ASUSTeK Computer Inc. RS700A-E11-RS4U			SPECpower_ssj2008 = 25,252 overall ssj_ops/watt
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Single Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	Jun 14, 2022
Hardware Availability:	May-2022	Software Availability:	May-2022	Publication:	Jul 13, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS700A-E11-RS4U
Form Factor:	1U
CPU Name:	AMD EPYC 7763
CPU Characteristics:	64-Core, 2.45GHz, 256MB L3 Cache
CPU Frequency (MHz):	2450
CPU(s) Enabled:	128 cores, 2 chips, 64 cores/chip
Hardware Threads:	256 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16 GB
Memory Details:	16 x 16GB 2Rx8 PC4-3200AA-R ECC RDIMM; slots DIMM_A2, DIMM_B2, DIMM_C2, DIMM_D2, DIMM_E2, DIMM_F2, DIMM_G2, DIMM_H2, DIMM_I2, DIMM_J2, DIMM_K2, DIMM_L2, DIMM_M2, DIMM_N2, DIMM_O2, DIMM_P2 populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	CHICONY R18-1K6P1WA REV:01 P/N: 0A100-00250800
Disk Drive:	1 x 256GB Samsung P4X4 M.2 PCIE SSD P/N: 03B03-00420800
Disk Controller:	Integrated PCIE controller
# and type of Network Interface Cards (NICs) Installed:	1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	4/4/2
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (See SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP2
OS Version:	5.3.18-22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity:	for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 128, physicalCoreId + 129 --membind=0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 }
JVM Instances:	64
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	1001
Management Firmware Version:	1.2.10
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	ASUS Control Center V1.4.3.5

None

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave
Benchmark started via ssh
cpupower frequency-set -g ondemand
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
echo 0 > /proc/sys/kernel/nmi_watchdog
sysctl -w kernel.sched_migration_cost_ns=6000
sysctl -w kernel.sched_min_granularity_ns=10000000
sysctl -w vm.swappiness=50
sysctl -w vm.laptop_mode=5
N/A:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA, Inc.
Model:	WT210
Serial Number:	91J615902
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	National Measurement Laboratory of the R.O.C.
Accredited by:	OMNIO Calibration Laboratory Ltd.
Calibration Label:	OCL-1122107F02C1
Date of Calibration:	2-Jul-2021
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.2-3976349f-20201208
Setup Description:	Connected to PSU1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50 mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 256 due to a known inconsistency in processor reporting with this Java version.

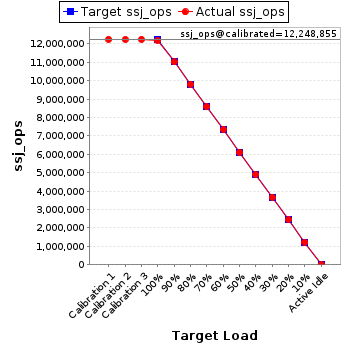

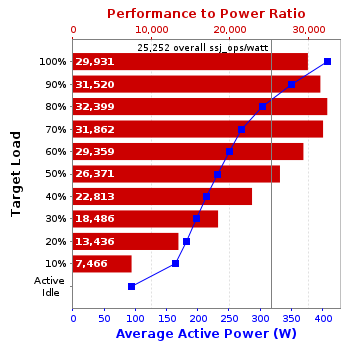

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	408	21.4
90%	350	21.4
80%	303	21.2
70%	269	21.2
60%	250	21.1
50%	232	21.0
40%	215	21.0
30%	199	20.9
20%	182	20.9
10%	164	20.8
Active Idle	94.6	20.8

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	20.8	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
