ASUSTeK Computer Inc. RS700A-E11-RS4U SPECpower_ssj2008 = 25,252 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Jun 14, 2022
Hardware Availability: May-2022 Software Availability: May-2022 Publication: Jul 13, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 404 20.4
Calibration 2 408 21.0
Calibration 3 408 21.2
100% 408 21.4
90% 350 21.4
80% 303 21.2
70% 269 21.2
60% 250 21.1
50% 232 21.0
40% 215 21.0
30% 199 20.9
20% 182 20.9
10% 164 20.8
Active Idle 94.6 20.8

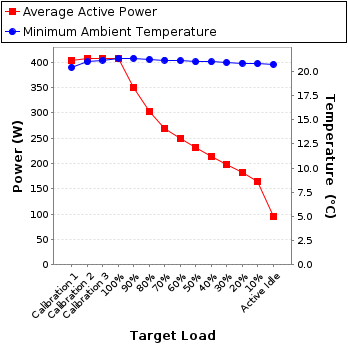

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91J615902
Connectivity: RS-232
Input Connection: Default
Metrology Institute: National Measurement Laboratory of the R.O.C.
Accredited by: OMNIO Calibration Laboratory Ltd.
Calibration Label: OCL-1122107F02C1
Date of Calibration: 2-Jul-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm.
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 1.84 5.0 0.991 404 0.5%
Calibration 2 222 300.0 1.85 5.0 0.991 408 0.5%
Calibration 3 222 300.0 1.85 5.0 0.991 408 0.5%
100% 223 300.0 1.85 5.0 0.991 408 0.5%
90% 223 300.0 1.59 5.0 0.989 350 0.6%
80% 223 300.0 1.38 5.0 0.987 303 0.7%
70% 223 300.0 1.22 5.0 0.985 269 0.7%
60% 224 300.0 1.14 5.0 0.984 250 0.8%
50% 223 300.0 1.06 2.0 0.983 232 0.4%
40% 223 300.0 0.981 2.0 0.983 215 0.5%
30% 223 300.0 0.908 2.0 0.982 199 0.5%
20% 223 300.0 0.834 2.0 0.981 182 0.5%
10% 223 300.0 0.753 2.0 0.979 164 0.6%
Active Idle 223 300.0 0.468 1.0 0.907 94.6 0.6%

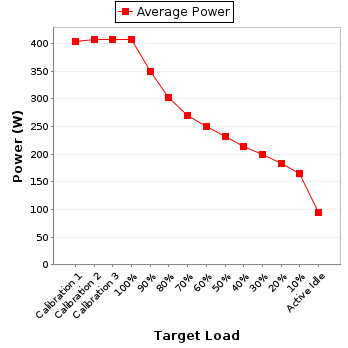

Power details for pwr1
