XSLAB V-Raptor SQ ssj_ops@100% = 1,577,507
ssj_ops@100% per Host = 98,594
ssj_ops@100% per JVM = 98,594
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 15, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 8, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,586,007
Calibration 2     1,607,020
Calibration 3     1,591,616
ssj_ops@calibrated=1,599,318
100% 98.6% 1,599,318 1,577,507
90% 90.3% 1,439,386 1,444,898
80% 79.9% 1,279,454 1,278,359
70% 69.9% 1,119,523 1,118,360
60% 60.2% 959,591 963,401
50% 49.8% 799,659 795,783
40% 39.9% 639,727 637,679
30% 29.9% 479,795 478,239
20% 20.0% 319,864 319,338
10% 10.2% 159,932 162,818
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 384 384 384 256 16 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: 19 inch Rackmount 2U Server System
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: FSP800-50ERS 2U 800W
Network Switch: uSafe3010-24T
Network Switch Details: 24 Port 10/100/1000 Base-T, 4 Uplink port 1G TX/SFP Combo
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware per Node
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Djava.awt.headless=true -Xms5000m -Xmx5000m -Djava.net.preferIPv4Stack=true -XX:ParallelGCThreads=15 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseParallelGC
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 1
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
node17 99,476
node18 96,846
node19 97,610
node20 97,711
node21 98,408
node22 96,933
node23 96,716
node24 99,697
node25 99,591
node26 99,504
node27 101,323
node28 97,912
node29 97,830
node30 99,264
node31 100,611
node32 98,075
ssj_ops@100% 1,577,507
ssj_ops@100% per Host 98,594
ssj_ops@100% per JVM 98,594
Graph of per-host results
Host 'node17' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,805
Calibration 2     101,197
Calibration 3     99,945
ssj_ops@calibrated=100,571
100% 98.9% 100,571 99,476
90% 90.2% 90,514 90,756
80% 79.9% 80,457 80,347
70% 70.2% 70,400 70,628
60% 61.2% 60,343 61,574
50% 49.7% 50,286 50,012
40% 40.2% 40,228 40,454
30% 30.0% 30,171 30,143
20% 20.1% 20,114 20,207
10% 10.4% 10,057 10,473
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node18' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,280
Calibration 2     99,618
Calibration 3     97,595
ssj_ops@calibrated=98,606
100% 98.2% 98,606 96,846
90% 90.6% 88,746 89,352
80% 80.6% 78,885 79,430
70% 69.8% 69,024 68,826
60% 60.2% 59,164 59,388
50% 49.1% 49,303 48,377
40% 39.9% 39,443 39,351
30% 30.1% 29,582 29,634
20% 20.4% 19,721 20,099
10% 10.2% 9,861 10,080
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node19' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,162
Calibration 2     100,716
Calibration 3     97,533
ssj_ops@calibrated=99,124
100% 98.5% 99,124 97,610
90% 89.9% 89,212 89,160
80% 78.9% 79,300 78,257
70% 69.9% 69,387 69,290
60% 60.3% 59,475 59,723
50% 50.1% 49,562 49,683
40% 40.0% 39,650 39,656
30% 29.7% 29,737 29,413
20% 19.7% 19,825 19,479
10% 10.4% 9,912 10,262
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node20' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,117
Calibration 2     99,392
Calibration 3     99,046
ssj_ops@calibrated=99,219
100% 98.5% 99,219 97,711
90% 90.9% 89,297 90,188
80% 80.3% 79,375 79,686
70% 70.5% 69,453 69,952
60% 60.7% 59,531 60,197
50% 49.1% 49,609 48,677
40% 40.0% 39,688 39,727
30% 30.0% 29,766 29,781
20% 19.7% 19,844 19,537
10% 10.3% 9,922 10,171
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node21' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,931
Calibration 2     100,660
Calibration 3     99,990
ssj_ops@calibrated=100,325
100% 98.1% 100,325 98,408
90% 89.7% 90,292 90,002
80% 79.0% 80,260 79,301
70% 68.2% 70,227 68,462
60% 60.7% 60,195 60,901
50% 49.2% 50,162 49,366
40% 39.9% 40,130 40,051
30% 30.2% 30,097 30,326
20% 19.9% 20,065 19,937
10% 10.2% 10,032 10,200
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node22' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,621
Calibration 2     98,068
Calibration 3     98,592
ssj_ops@calibrated=98,330
100% 98.6% 98,330 96,933
90% 91.1% 88,497 89,584
80% 80.8% 78,664 79,474
70% 69.8% 68,831 68,661
60% 60.4% 58,998 59,420
50% 50.9% 49,165 50,026
40% 39.5% 39,332 38,802
30% 29.9% 29,499 29,397
20% 19.9% 19,666 19,582
10% 10.1% 9,833 9,882
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node23' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,202
Calibration 2     97,965
Calibration 3     97,472
ssj_ops@calibrated=97,719
100% 99.0% 97,719 96,716
90% 90.7% 87,947 88,635
80% 79.9% 78,175 78,112
70% 69.6% 68,403 68,053
60% 60.1% 58,631 58,693
50% 49.6% 48,859 48,422
40% 39.6% 39,087 38,665
30% 29.5% 29,316 28,785
20% 20.3% 19,544 19,814
10% 10.1% 9,772 9,872
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node24' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,810
Calibration 2     101,410
Calibration 3     100,356
ssj_ops@calibrated=100,883
100% 98.8% 100,883 99,697
90% 90.3% 90,795 91,078
80% 79.2% 80,706 79,938
70% 70.3% 70,618 70,958
60% 59.8% 60,530 60,285
50% 50.0% 50,442 50,428
40% 40.1% 40,353 40,416
30% 29.5% 30,265 29,775
20% 20.2% 20,177 20,418
10% 9.7% 10,088 9,829
Active Idle   0 0

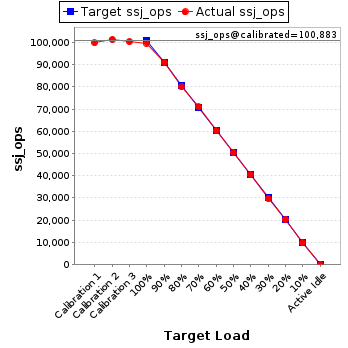

Graph of results
See the Host Performance Report for additional details.
Host 'node25' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,717
Calibration 2     101,572
Calibration 3     99,293
ssj_ops@calibrated=100,433
100% 99.2% 100,433 99,591
90% 89.5% 90,389 89,854
80% 79.9% 80,346 80,209
70% 70.9% 70,303 71,167
60% 60.4% 60,260 60,654
50% 49.8% 50,216 50,017
40% 40.2% 40,173 40,377
30% 30.3% 30,130 30,478
20% 19.6% 20,087 19,648
10% 10.3% 10,043 10,339
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node26' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,033
Calibration 2     100,676
Calibration 3     100,245
ssj_ops@calibrated=100,461
100% 99.0% 100,461 99,504
90% 90.7% 90,415 91,149
80% 80.3% 80,369 80,663
70% 69.5% 70,323 69,860
60% 60.3% 60,276 60,537
50% 50.6% 50,230 50,841
40% 40.3% 40,184 40,502
30% 29.3% 30,138 29,431
20% 19.9% 20,092 19,946
10% 10.5% 10,046 10,593
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node27' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,908
Calibration 2     101,982
Calibration 3     103,025
ssj_ops@calibrated=102,504
100% 98.8% 102,504 101,323
90% 89.5% 92,253 91,747
80% 79.7% 82,003 81,738
70% 70.1% 71,753 71,870
60% 60.5% 61,502 62,049
50% 50.4% 51,252 51,698
40% 39.3% 41,001 40,264
30% 30.6% 30,751 31,399
20% 20.6% 20,501 21,113
10% 10.5% 10,250 10,720
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node28' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,988
Calibration 2     100,961
Calibration 3     99,067
ssj_ops@calibrated=100,014
100% 97.9% 100,014 97,912
90% 91.0% 90,013 90,979
80% 79.2% 80,011 79,179
70% 70.1% 70,010 70,098
60% 59.8% 60,008 59,811
50% 49.1% 50,007 49,151
40% 39.9% 40,006 39,863
30% 29.6% 30,004 29,641
20% 19.9% 20,003 19,868
10% 9.7% 10,001 9,746
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node29' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,653
Calibration 2     100,285
Calibration 3     98,699
ssj_ops@calibrated=99,492
100% 98.3% 99,492 97,830
90% 90.8% 89,543 90,380
80% 80.4% 79,594 79,995
70% 69.4% 69,645 69,041
60% 59.9% 59,695 59,620
50% 49.6% 49,746 49,342
40% 39.5% 39,797 39,345
30% 29.4% 29,848 29,243
20% 20.6% 19,898 20,476
10% 9.9% 9,949 9,874
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node30' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,887
Calibration 2     101,191
Calibration 3     99,267
ssj_ops@calibrated=100,229
100% 99.0% 100,229 99,264
90% 90.3% 90,206 90,518
80% 80.0% 80,183 80,217
70% 70.1% 70,160 70,242
60% 60.0% 60,137 60,144
50% 49.6% 50,114 49,673
40% 39.4% 40,092 39,521
30% 30.5% 30,069 30,599
20% 19.9% 20,046 19,909
10% 10.5% 10,023 10,489
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node31' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,666
Calibration 2     101,232
Calibration 3     102,570
ssj_ops@calibrated=101,901
100% 98.7% 101,901 100,611
90% 89.8% 91,711 91,539
80% 79.9% 81,521 81,466
70% 69.7% 71,331 70,982
60% 59.3% 61,141 60,415
50% 49.8% 50,951 50,707
40% 39.8% 40,761 40,543
30% 29.7% 30,570 30,290
20% 19.5% 20,380 19,846
10% 10.0% 10,190 10,227
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node32' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,224
Calibration 2     100,095
Calibration 3     98,918
ssj_ops@calibrated=99,507
100% 98.6% 99,507 98,075
90% 90.4% 89,556 89,978
80% 80.7% 79,605 80,348
70% 70.6% 69,655 70,271
60% 60.3% 59,704 59,989
50% 49.6% 49,753 49,363
40% 40.3% 39,803 40,143
30% 30.1% 29,852 29,904
20% 19.6% 19,901 19,459
10% 10.1% 9,951 10,061
Active Idle   0 0

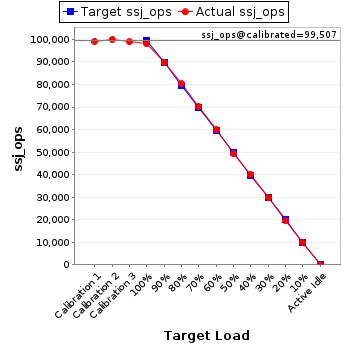

Graph of results
See the Host Performance Report for additional details.
