XSLAB V-Raptor SQ ssj_ops@100% = 98,075
ssj_ops@100% per JVM = 98,075
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 15, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 8, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,224
Calibration 2     100,095
Calibration 3     98,918
ssj_ops@calibrated=99,507
100% 98.6% 99,507 98,075
90% 90.4% 89,556 89,978
80% 80.7% 79,605 80,348
70% 70.6% 69,655 70,271
60% 60.3% 59,704 59,989
50% 49.6% 49,753 49,363
40% 40.3% 39,803 40,143
30% 30.1% 29,852 29,904
20% 19.6% 19,901 19,459
10% 10.1% 9,951 10,061
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Djava.awt.headless=true -Xms5000m -Xmx5000m -Djava.net.preferIPv4Stack=true -XX:ParallelGCThreads=15 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseParallelGC
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 1
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node32.001 98,075
ssj_ops@100% 98,075
ssj_ops@100% per JVM 98,075
Graph of per-instance results
JVM 'node32.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,224
Calibration 2     100,095
Calibration 3     98,918
ssj_ops@calibrated=99,507
100% 98.6% 99,507 98,075
90% 90.4% 89,556 89,978
80% 80.7% 79,605 80,348
70% 70.6% 69,655 70,271
60% 60.3% 59,704 59,989
50% 49.6% 49,753 49,363
40% 40.3% 39,803 40,143
30% 30.1% 29,852 29,904
20% 19.6% 19,901 19,459
10% 10.1% 9,951 10,061
Active Idle   0 0

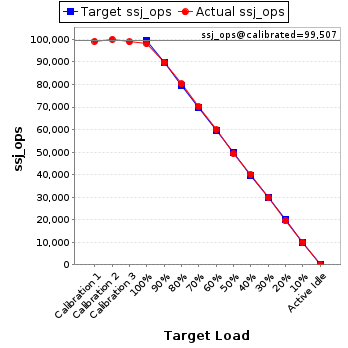

Graph of results
See the JVM Instance Performance Report for additional details.
