Hewlett Packard Enterprise Superdome Flex 280 - 8 Socket SPECpower_ssj2008 = 7,369 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 15, 2020
Hardware Availability: Dec-2020 Software Availability: Jul-2020 Publication: Nov 4, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 19,501,160 2,132 9,146
90% 90.1% 17,612,816 1,960 8,984
80% 80.0% 15,643,569 1,783 8,775
70% 70.0% 13,694,441 1,584 8,644
60% 60.0% 11,726,565 1,405 8,345
50% 50.0% 9,772,685 1,273 7,678
40% 40.0% 7,819,688 1,157 6,760
30% 30.0% 5,867,506 1,046 5,609
20% 20.0% 3,915,322 932 4,200
10% 10.0% 1,960,200 815 2,405
Active Idle 0 503 0
∑ssj_ops / ∑power = 7,369

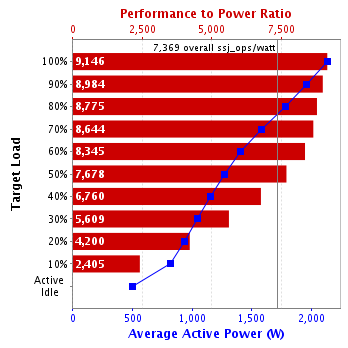

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Superdome Flex 280 - 8 Socket
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8380HL 2.90 GHz
CPU Characteristics: 28-Core, 2.90 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2900
CPU(s) Enabled: 224 cores, 8 chips, 28 cores/chip
Hardware Threads: 448 (2 / core)
CPU(s) Orderable: 2,4,8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39242 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 1536
# and size of DIMM: 48 x 32768 MB
Memory Details: 32GB 2Rx4 PC4-3200AA-RE2; 1 DIMM per channel slots populated
Power Supply Quantity and Rating (W): 2 x 1600
Power Supply Details: HPE 1600W Platinum Power Supply (060-0415-002)
Disk Drive: 1 x HPE Superdome Flex 280 480GB SATA 6G Mixed Use SFF (2.5in) BC 3yr Wty Digitally Signed Firmware SSD (R6A34A)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Embedded Ethernet 1Gb 2-port adapter
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: numactl --cpunodebind=[0-15] --localalloc
JVM Instances: 16
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 1.0.140
Management Firmware Version: 1.0.140
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Foundation Software 2 for SUSE Linux Enterprise Server Media License RTU
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_191-b12 (build 25.191-b12, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB45372
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-60-1
Date of Calibration: 12-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT Power Supplies 1, and 2
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: C2SF14002V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-40-1
Date of Calibration: 16-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT Power Supplies 5 and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 2,132 23.3
90% 1,960 23.3
80% 1,783 23.3
70% 1,584 23.4
60% 1,405 23.3
50% 1,273 23.4
40% 1,157 23.4
30% 1,046 23.3
20% 932 23.6
10% 815 23.7
Active Idle 503 23.4
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 23.3 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     19,601,560
Calibration 2     19,545,507
Calibration 3     19,564,187
ssj_ops@calibrated=19,554,847
100% 99.7% 19,554,847 19,501,160
90% 90.1% 17,599,362 17,612,816
80% 80.0% 15,643,878 15,643,569
70% 70.0% 13,688,393 13,694,441
60% 60.0% 11,732,908 11,726,565
50% 50.0% 9,777,424 9,772,685
40% 40.0% 7,821,939 7,819,688
30% 30.0% 5,866,454 5,867,506
20% 20.0% 3,910,969 3,915,322
10% 10.0% 1,955,485 1,960,200
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
