Hewlett Packard Enterprise Superdome Flex 280 - 8 Socket | SPECpower_ssj2008 = 7,369 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 15, 2020 |
Hardware Availability: | Dec-2020 | Software Availability: | Jul-2020 | Publication: | Nov 4, 2020 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

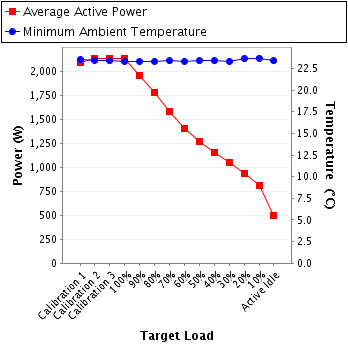

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 2,094 | 23.5 |
Calibration 2 | 2,134 | 23.4 |
Calibration 3 | 2,139 | 23.4 |
100% | 2,132 | 23.3 |
90% | 1,960 | 23.3 |
80% | 1,783 | 23.3 |
70% | 1,584 | 23.4 |
60% | 1,405 | 23.3 |
50% | 1,273 | 23.4 |
40% | 1,157 | 23.4 |
30% | 1,046 | 23.3 |
20% | 932 | 23.6 |
10% | 815 | 23.7 |
Active Idle | 503 | 23.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB45372 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-FQ7PK-60-1 |
Date of Calibration: | 12-Jun-2020 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.1-a2d19f26-20190717 |
Setup Description: | SUT Power Supplies 1, and 2 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | C2SF14002V |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-FQ7PK-40-1 |
Date of Calibration: | 16-Jun-2020 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.1-a2d19f26-20190717 |
Setup Description: | SUT Power Supplies 5 and 6 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |

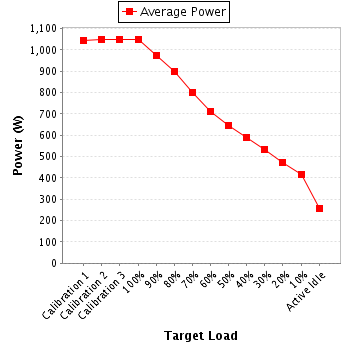

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 214 | 300.0 | 4.94 | 10.0 | 0.991 | 1,046 | 0.5% |
Calibration 2 | 214 | 300.0 | 4.95 | 10.0 | 0.991 | 1,050 | 0.5% |
Calibration 3 | 214 | 300.0 | 4.95 | 10.0 | 0.991 | 1,051 | 0.5% |
100% | 214 | 300.0 | 4.93 | 10.0 | 0.991 | 1,048 | 0.5% |
90% | 214 | 300.0 | 4.60 | 10.0 | 0.990 | 976 | 0.5% |
80% | 214 | 300.0 | 4.24 | 5.0 | 0.990 | 900 | 0.3% |
70% | 214 | 300.0 | 3.78 | 5.0 | 0.989 | 801 | 0.4% |
60% | 215 | 300.0 | 3.36 | 5.0 | 0.986 | 712 | 0.4% |
50% | 215 | 300.0 | 3.06 | 5.0 | 0.982 | 645 | 0.4% |
40% | 215 | 300.0 | 2.79 | 5.0 | 0.978 | 588 | 0.4% |
30% | 215 | 300.0 | 2.54 | 5.0 | 0.974 | 532 | 0.5% |
20% | 215 | 300.0 | 2.28 | 5.0 | 0.970 | 474 | 0.5% |
10% | 215 | 300.0 | 2.00 | 5.0 | 0.964 | 415 | 0.6% |
Active Idle | 215 | 300.0 | 1.30 | 2.0 | 0.924 | 259 | 0.5% |

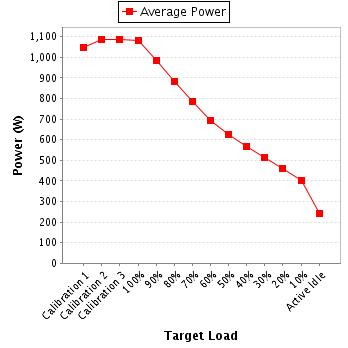

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 212 | 300.0 | 5.00 | 10.0 | 0.989 | 1,048 | 0.3% |
Calibration 2 | 212 | 300.0 | 5.17 | 10.0 | 0.990 | 1,084 | 0.3% |
Calibration 3 | 212 | 300.0 | 5.18 | 10.0 | 0.990 | 1,088 | 0.3% |
100% | 213 | 300.0 | 5.15 | 10.0 | 0.990 | 1,084 | 0.3% |
90% | 213 | 300.0 | 4.68 | 10.0 | 0.989 | 984 | 0.3% |
80% | 213 | 300.0 | 4.20 | 5.0 | 0.987 | 883 | 0.2% |
70% | 213 | 300.0 | 3.74 | 5.0 | 0.986 | 784 | 0.2% |
60% | 213 | 300.0 | 3.31 | 5.0 | 0.982 | 694 | 0.3% |
50% | 213 | 300.0 | 3.01 | 5.0 | 0.977 | 628 | 0.3% |
40% | 213 | 300.0 | 2.74 | 5.0 | 0.972 | 569 | 0.3% |
30% | 213 | 300.0 | 2.49 | 5.0 | 0.967 | 514 | 0.3% |
20% | 213 | 300.0 | 2.23 | 5.0 | 0.961 | 458 | 0.3% |
10% | 213 | 300.0 | 1.97 | 5.0 | 0.952 | 400 | 0.3% |
Active Idle | 214 | 300.0 | 1.28 | 2.0 | 0.894 | 244 | 0.3% |
