Lenovo Global Technology Think System SR645 ssj_ops@100% = 12,003,050
ssj_ops@100% per JVM = 187,548
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 3, 2020
Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: May 11, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,927,757
Calibration 2     12,042,893
Calibration 3     12,064,523
ssj_ops@calibrated=12,053,708
100% 99.6% 12,053,708 12,003,050
90% 90.0% 10,848,337 10,852,237
80% 80.0% 9,642,967 9,645,872
70% 70.1% 8,437,596 8,443,727
60% 60.0% 7,232,225 7,237,930
50% 50.0% 6,026,854 6,027,086
40% 40.1% 4,821,483 4,831,538
30% 30.0% 3,616,112 3,620,443
20% 20.0% 2,410,742 2,411,763
10% 10.0% 1,205,371 1,206,080
Active Idle   0 0

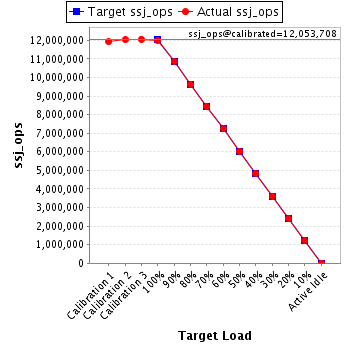

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25GHz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:SP57A14665
Disk Drive: 1 x 128GB M.2 SSD P/N:SSS7A06667
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.3+12-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances: 64
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: d8e105f-1.00
Management Firmware Version: d8bt05s-2.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
localhost.001 189,148
localhost.002 191,330
localhost.003 193,066
localhost.004 188,184
localhost.005 190,616
localhost.006 190,043
localhost.007 192,582
localhost.008 188,056
localhost.009 195,480
localhost.010 191,314
localhost.011 191,337
localhost.012 191,254
localhost.013 182,719
localhost.014 182,141
localhost.015 187,477
localhost.016 184,514
localhost.017 188,471
localhost.018 187,472
localhost.019 184,027
localhost.020 185,732
localhost.021 189,460
localhost.022 185,945
localhost.023 188,697
localhost.024 185,676
localhost.025 190,297
localhost.026 189,434
localhost.027 190,959
localhost.028 191,940
localhost.029 193,014
localhost.030 192,448
localhost.031 195,487
localhost.032 189,191
localhost.033 188,400
localhost.034 186,170
localhost.035 186,424
localhost.036 177,101
localhost.037 186,290
localhost.038 185,862
localhost.039 183,567
localhost.040 184,102
localhost.041 187,991
localhost.042 185,399
localhost.043 186,581
localhost.044 183,636
localhost.045 183,169
localhost.046 189,054
localhost.047 185,418
localhost.048 181,973
localhost.049 187,878
localhost.050 187,756
localhost.051 188,453
localhost.052 186,437
localhost.053 185,954
localhost.054 184,418
localhost.055 185,459
localhost.056 184,638
localhost.057 186,896
localhost.058 183,688
localhost.059 189,220
localhost.060 184,476
localhost.061 187,121
localhost.062 187,914
localhost.063 187,093
localhost.064 186,995
ssj_ops@100% 12,003,050
ssj_ops@100% per JVM 187,548

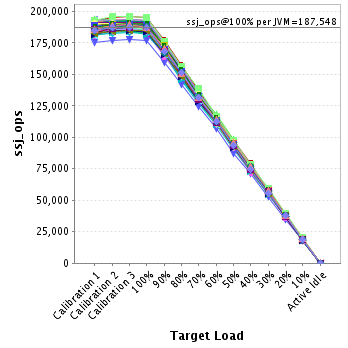

Graph of per-instance results
JVM 'localhost.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,996
Calibration 2     190,787
Calibration 3     191,221
ssj_ops@calibrated=191,004
100% 99.0% 191,004 189,148
90% 90.5% 171,904 172,869
80% 79.7% 152,803 152,146
70% 70.5% 133,703 134,629
60% 60.5% 114,603 115,479
50% 49.9% 95,502 95,333
40% 40.4% 76,402 77,115
30% 29.9% 57,301 57,057
20% 20.1% 38,201 38,373
10% 9.9% 19,100 19,001
Active Idle   0 0
Graph of results
JVM 'localhost.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,137
Calibration 2     192,049
Calibration 3     192,677
ssj_ops@calibrated=192,363
100% 99.5% 192,363 191,330
90% 90.3% 173,126 173,608
80% 80.5% 153,890 154,809
70% 70.4% 134,654 135,486
60% 60.2% 115,418 115,738
50% 49.7% 96,181 95,639
40% 39.7% 76,945 76,309
30% 29.6% 57,709 56,888
20% 20.0% 38,473 38,378
10% 9.9% 19,236 19,128
Active Idle   0 0
Graph of results
JVM 'localhost.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,717
Calibration 2     193,829
Calibration 3     193,834
ssj_ops@calibrated=193,832
100% 99.6% 193,832 193,066
90% 90.6% 174,448 175,557
80% 79.5% 155,065 154,114
70% 70.1% 135,682 135,935
60% 60.8% 116,299 117,816
50% 50.5% 96,916 97,905
40% 39.9% 77,533 77,288
30% 29.9% 58,149 57,889
20% 20.1% 38,766 38,955
10% 10.1% 19,383 19,558
Active Idle   0 0
Graph of results
JVM 'localhost.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,868
Calibration 2     189,002
Calibration 3     189,187
ssj_ops@calibrated=189,094
100% 99.5% 189,094 188,184
90% 90.0% 170,185 170,274
80% 79.7% 151,276 150,657
70% 70.2% 132,366 132,751
60% 59.5% 113,457 112,421
50% 50.0% 94,547 94,549
40% 40.6% 75,638 76,760
30% 29.8% 56,728 56,427
20% 20.0% 37,819 37,808
10% 9.9% 18,909 18,792
Active Idle   0 0
Graph of results
JVM 'localhost.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,287
Calibration 2     191,782
Calibration 3     192,312
ssj_ops@calibrated=192,047
100% 99.3% 192,047 190,616
90% 89.7% 172,842 172,326
80% 79.7% 153,638 153,134
70% 70.4% 134,433 135,166
60% 59.6% 115,228 114,395
50% 49.5% 96,024 95,079
40% 40.0% 76,819 76,893
30% 30.2% 57,614 58,089
20% 20.2% 38,409 38,863
10% 10.1% 19,205 19,409
Active Idle   0 0
Graph of results
JVM 'localhost.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,570
Calibration 2     190,718
Calibration 3     191,107
ssj_ops@calibrated=190,913
100% 99.5% 190,913 190,043
90% 89.9% 171,821 171,591
80% 80.2% 152,730 153,140
70% 70.2% 133,639 133,941
60% 60.4% 114,548 115,380
50% 50.2% 95,456 95,909
40% 40.5% 76,365 77,384
30% 30.3% 57,274 57,752
20% 19.7% 38,183 37,604
10% 10.3% 19,091 19,609
Active Idle   0 0
Graph of results
JVM 'localhost.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,031
Calibration 2     193,016
Calibration 3     193,254
ssj_ops@calibrated=193,135
100% 99.7% 193,135 192,582
90% 90.2% 173,821 174,279
80% 80.1% 154,508 154,667
70% 70.2% 135,194 135,676
60% 59.8% 115,881 115,509
50% 49.9% 96,567 96,289
40% 40.0% 77,254 77,247
30% 30.1% 57,940 58,229
20% 19.8% 38,627 38,200
10% 10.0% 19,313 19,336
Active Idle   0 0
Graph of results
JVM 'localhost.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,557
Calibration 2     188,746
Calibration 3     189,598
ssj_ops@calibrated=189,172
100% 99.4% 189,172 188,056
90% 90.0% 170,255 170,288
80% 80.3% 151,338 151,982
70% 70.1% 132,421 132,570
60% 59.7% 113,503 112,959
50% 49.8% 94,586 94,294
40% 39.8% 75,669 75,327
30% 30.0% 56,752 56,814
20% 19.8% 37,834 37,398
10% 9.8% 18,917 18,562
Active Idle   0 0
Graph of results
JVM 'localhost.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,479
Calibration 2     195,459
Calibration 3     195,821
ssj_ops@calibrated=195,640
100% 99.9% 195,640 195,480
90% 90.4% 176,076 176,843
80% 80.1% 156,512 156,672
70% 70.2% 136,948 137,395
60% 59.7% 117,384 116,768
50% 49.8% 97,820 97,485
40% 40.5% 78,256 79,308
30% 29.5% 58,692 57,698
20% 19.9% 39,128 38,865
10% 9.9% 19,564 19,404
Active Idle   0 0
Graph of results
JVM 'localhost.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,992
Calibration 2     191,176
Calibration 3     191,683
ssj_ops@calibrated=191,430
100% 99.9% 191,430 191,314
90% 90.6% 172,287 173,418
80% 80.8% 153,144 154,748
70% 70.1% 134,001 134,164
60% 60.5% 114,858 115,778
50% 50.0% 95,715 95,671
40% 40.3% 76,572 77,114
30% 29.8% 57,429 57,075
20% 20.2% 38,286 38,610
10% 9.9% 19,143 18,954
Active Idle   0 0
Graph of results
JVM 'localhost.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,224
Calibration 2     192,694
Calibration 3     193,138
ssj_ops@calibrated=192,916
100% 99.2% 192,916 191,337
90% 89.9% 173,625 173,403
80% 79.4% 154,333 153,173
70% 70.2% 135,041 135,432
60% 60.2% 115,750 116,222
50% 49.5% 96,458 95,434
40% 40.1% 77,166 77,352
30% 29.9% 57,875 57,747
20% 19.9% 38,583 38,446
10% 10.1% 19,292 19,534
Active Idle   0 0
Graph of results
JVM 'localhost.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,115
Calibration 2     191,026
Calibration 3     191,086
ssj_ops@calibrated=191,056
100% 100.1% 191,056 191,254
90% 88.9% 171,951 169,926
80% 80.4% 152,845 153,608
70% 69.4% 133,740 132,664
60% 59.6% 114,634 113,877
50% 50.2% 95,528 95,923
40% 39.5% 76,423 75,404
30% 29.7% 57,317 56,741
20% 19.6% 38,211 37,504
10% 9.7% 19,106 18,612
Active Idle   0 0
Graph of results
JVM 'localhost.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,511
Calibration 2     184,875
Calibration 3     185,608
ssj_ops@calibrated=185,242
100% 98.6% 185,242 182,719
90% 90.0% 166,717 166,666
80% 80.5% 148,193 149,086
70% 70.4% 129,669 130,442
60% 60.0% 111,145 111,059
50% 50.0% 92,621 92,606
40% 39.8% 74,097 73,728
30% 30.1% 55,572 55,749
20% 19.9% 37,048 36,881
10% 10.1% 18,524 18,779
Active Idle   0 0
Graph of results
JVM 'localhost.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,634
Calibration 2     182,752
Calibration 3     183,302
ssj_ops@calibrated=183,027
100% 99.5% 183,027 182,141
90% 90.1% 164,724 164,994
80% 79.5% 146,421 145,427
70% 69.3% 128,119 126,808
60% 59.7% 109,816 109,292
50% 49.3% 91,513 90,245
40% 39.9% 73,211 73,108
30% 30.1% 54,908 55,147
20% 19.8% 36,605 36,291
10% 10.2% 18,303 18,598
Active Idle   0 0
Graph of results
JVM 'localhost.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,749
Calibration 2     187,420
Calibration 3     187,974
ssj_ops@calibrated=187,697
100% 99.9% 187,697 187,477
90% 89.9% 168,927 168,826
80% 79.5% 150,157 149,136
70% 70.0% 131,388 131,476
60% 59.9% 112,618 112,366
50% 49.7% 93,848 93,304
40% 40.4% 75,079 75,745
30% 29.6% 56,309 55,604
20% 20.2% 37,539 37,842
10% 10.0% 18,770 18,785
Active Idle   0 0
Graph of results
JVM 'localhost.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,555
Calibration 2     185,443
Calibration 3     185,300
ssj_ops@calibrated=185,371
100% 99.5% 185,371 184,514
90% 89.2% 166,834 165,414
80% 79.7% 148,297 147,770
70% 69.6% 129,760 128,964
60% 59.9% 111,223 111,031
50% 49.7% 92,686 92,185
40% 40.3% 74,149 74,618
30% 29.7% 55,611 55,057
20% 20.0% 37,074 37,006
10% 9.9% 18,537 18,279
Active Idle   0 0
Graph of results
JVM 'localhost.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,343
Calibration 2     189,141
Calibration 3     189,372
ssj_ops@calibrated=189,257
100% 99.6% 189,257 188,471
90% 90.4% 170,331 171,173
80% 80.4% 151,405 152,068
70% 70.3% 132,480 133,030
60% 60.0% 113,554 113,645
50% 50.5% 94,628 95,597
40% 40.5% 75,703 76,569
30% 30.5% 56,777 57,710
20% 20.3% 37,851 38,483
10% 9.9% 18,926 18,829
Active Idle   0 0
Graph of results
JVM 'localhost.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,716
Calibration 2     188,543
Calibration 3     188,608
ssj_ops@calibrated=188,575
100% 99.4% 188,575 187,472
90% 90.1% 169,718 169,853
80% 80.5% 150,860 151,796
70% 70.5% 132,003 132,994
60% 59.8% 113,145 112,767
50% 49.8% 94,288 93,905
40% 39.6% 75,430 74,754
30% 30.0% 56,573 56,652
20% 19.8% 37,715 37,412
10% 10.0% 18,858 18,828
Active Idle   0 0
Graph of results
JVM 'localhost.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,059
Calibration 2     184,534
Calibration 3     185,066
ssj_ops@calibrated=184,800
100% 99.6% 184,800 184,027
90% 90.6% 166,320 167,449
80% 79.9% 147,840 147,653
70% 69.6% 129,360 128,603
60% 60.5% 110,880 111,799
50% 49.9% 92,400 92,251
40% 40.0% 73,920 73,937
30% 30.1% 55,440 55,669
20% 19.9% 36,960 36,687
10% 10.0% 18,480 18,487
Active Idle   0 0
Graph of results
JVM 'localhost.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,887
Calibration 2     187,137
Calibration 3     187,435
ssj_ops@calibrated=187,286
100% 99.2% 187,286 185,732
90% 89.7% 168,558 168,003
80% 79.7% 149,829 149,321
70% 70.0% 131,100 131,115
60% 60.0% 112,372 112,297
50% 49.8% 93,643 93,210
40% 40.1% 74,915 75,152
30% 29.9% 56,186 55,960
20% 20.1% 37,457 37,675
10% 10.0% 18,729 18,704
Active Idle   0 0
Graph of results
JVM 'localhost.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,875
Calibration 2     190,241
Calibration 3     190,785
ssj_ops@calibrated=190,513
100% 99.4% 190,513 189,460
90% 90.5% 171,462 172,492
80% 79.7% 152,410 151,858
70% 69.8% 133,359 133,034
60% 59.6% 114,308 113,464
50% 50.2% 95,257 95,707
40% 40.5% 76,205 77,229
30% 30.0% 57,154 57,093
20% 20.0% 38,103 38,076
10% 10.1% 19,051 19,250
Active Idle   0 0
Graph of results
JVM 'localhost.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,590
Calibration 2     186,019
Calibration 3     186,784
ssj_ops@calibrated=186,402
100% 99.8% 186,402 185,945
90% 89.5% 167,762 166,851
80% 80.2% 149,121 149,442
70% 69.5% 130,481 129,499
60% 60.5% 111,841 112,804
50% 50.4% 93,201 93,878
40% 40.4% 74,561 75,319
30% 29.9% 55,921 55,763
20% 20.0% 37,280 37,225
10% 10.0% 18,640 18,589
Active Idle   0 0
Graph of results
JVM 'localhost.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,428
Calibration 2     188,895
Calibration 3     189,609
ssj_ops@calibrated=189,252
100% 99.7% 189,252 188,697
90% 90.2% 170,327 170,783
80% 80.6% 151,402 152,485
70% 70.1% 132,476 132,600
60% 60.4% 113,551 114,218
50% 50.1% 94,626 94,762
40% 40.0% 75,701 75,729
30% 30.3% 56,776 57,366
20% 20.0% 37,850 37,820
10% 9.8% 18,925 18,602
Active Idle   0 0
Graph of results
JVM 'localhost.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,527
Calibration 2     185,969
Calibration 3     186,212
ssj_ops@calibrated=186,090
100% 99.8% 186,090 185,676
90% 90.2% 167,481 167,763
80% 80.1% 148,872 149,102
70% 70.1% 130,263 130,404
60% 59.5% 111,654 110,649
50% 49.5% 93,045 92,205
40% 39.9% 74,436 74,259
30% 30.3% 55,827 56,420
20% 20.1% 37,218 37,316
10% 10.1% 18,609 18,771
Active Idle   0 0
Graph of results
JVM 'localhost.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,355
Calibration 2     190,332
Calibration 3     191,016
ssj_ops@calibrated=190,674
100% 99.8% 190,674 190,297
90% 90.2% 171,607 172,059
80% 79.1% 152,539 150,789
70% 70.3% 133,472 133,997
60% 60.1% 114,404 114,568
50% 50.2% 95,337 95,639
40% 40.0% 76,270 76,279
30% 30.1% 57,202 57,361
20% 19.9% 38,135 38,003
10% 10.0% 19,067 19,060
Active Idle   0 0
Graph of results
JVM 'localhost.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,740
Calibration 2     190,147
Calibration 3     190,692
ssj_ops@calibrated=190,420
100% 99.5% 190,420 189,434
90% 89.4% 171,378 170,201
80% 80.2% 152,336 152,752
70% 69.6% 133,294 132,528
60% 60.6% 114,252 115,318
50% 50.1% 95,210 95,368
40% 40.2% 76,168 76,563
30% 30.2% 57,126 57,468
20% 19.7% 38,084 37,514
10% 9.7% 19,042 18,525
Active Idle   0 0
Graph of results
JVM 'localhost.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,314
Calibration 2     191,527
Calibration 3     191,489
ssj_ops@calibrated=191,508
100% 99.7% 191,508 190,959
90% 89.6% 172,358 171,587
80% 80.7% 153,207 154,524
70% 69.4% 134,056 132,946
60% 60.2% 114,905 115,228
50% 49.8% 95,754 95,346
40% 40.1% 76,603 76,799
30% 30.2% 57,453 57,897
20% 20.0% 38,302 38,327
10% 9.9% 19,151 19,025
Active Idle   0 0
Graph of results
JVM 'localhost.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,746
Calibration 2     191,987
Calibration 3     191,975
ssj_ops@calibrated=191,981
100% 100.0% 191,981 191,940
90% 90.3% 172,783 173,295
80% 79.7% 153,585 153,070
70% 70.3% 134,387 134,930
60% 60.0% 115,189 115,098
50% 50.0% 95,991 95,976
40% 40.2% 76,792 77,099
30% 30.0% 57,594 57,539
20% 20.3% 38,396 38,900
10% 10.0% 19,198 19,267
Active Idle   0 0
Graph of results
JVM 'localhost.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,958
Calibration 2     193,753
Calibration 3     193,903
ssj_ops@calibrated=193,828
100% 99.6% 193,828 193,014
90% 89.8% 174,446 174,018
80% 80.0% 155,063 155,040
70% 69.9% 135,680 135,580
60% 60.3% 116,297 116,851
50% 50.0% 96,914 96,933
40% 40.0% 77,531 77,526
30% 30.1% 58,149 58,302
20% 20.3% 38,766 39,289
10% 10.1% 19,383 19,537
Active Idle   0 0
Graph of results
JVM 'localhost.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,820
Calibration 2     193,070
Calibration 3     193,429
ssj_ops@calibrated=193,249
100% 99.6% 193,249 192,448
90% 90.4% 173,924 174,768
80% 80.2% 154,599 154,968
70% 70.3% 135,274 135,861
60% 60.1% 115,949 116,105
50% 49.9% 96,625 96,454
40% 40.0% 77,300 77,276
30% 30.0% 57,975 57,909
20% 20.2% 38,650 39,024
10% 9.7% 19,325 18,704
Active Idle   0 0
Graph of results
JVM 'localhost.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,088
Calibration 2     195,855
Calibration 3     196,076
ssj_ops@calibrated=195,965
100% 99.8% 195,965 195,487
90% 90.0% 176,369 176,396
80% 79.9% 156,772 156,557
70% 70.7% 137,176 138,575
60% 59.5% 117,579 116,596
50% 49.7% 97,983 97,298
40% 40.0% 78,386 78,415
30% 30.1% 58,790 58,996
20% 20.1% 39,193 39,333
10% 10.3% 19,597 20,168
Active Idle   0 0
Graph of results
JVM 'localhost.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,331
Calibration 2     190,199
Calibration 3     190,435
ssj_ops@calibrated=190,317
100% 99.4% 190,317 189,191
90% 89.9% 171,285 171,153
80% 79.7% 152,254 151,625
70% 70.3% 133,222 133,704
60% 60.2% 114,190 114,598
50% 50.5% 95,159 96,064
40% 39.8% 76,127 75,684
30% 30.3% 57,095 57,625
20% 20.1% 38,063 38,197
10% 9.8% 19,032 18,597
Active Idle   0 0
Graph of results
JVM 'localhost.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,344
Calibration 2     188,702
Calibration 3     189,189
ssj_ops@calibrated=188,945
100% 99.7% 188,945 188,400
90% 89.4% 170,051 168,874
80% 80.1% 151,156 151,289
70% 69.8% 132,262 131,874
60% 60.1% 113,367 113,616
50% 50.6% 94,473 95,555
40% 39.6% 75,578 74,831
30% 30.1% 56,684 56,945
20% 20.2% 37,789 38,150
10% 10.0% 18,895 18,892
Active Idle   0 0
Graph of results
JVM 'localhost.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,903
Calibration 2     186,586
Calibration 3     186,798
ssj_ops@calibrated=186,692
100% 99.7% 186,692 186,170
90% 90.7% 168,023 169,402
80% 80.4% 149,353 150,008
70% 70.2% 130,684 131,087
60% 60.3% 112,015 112,667
50% 50.3% 93,346 93,932
40% 40.1% 74,677 74,826
30% 30.0% 56,008 56,080
20% 20.3% 37,338 37,833
10% 10.1% 18,669 18,841
Active Idle   0 0
Graph of results
JVM 'localhost.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,827
Calibration 2     186,714
Calibration 3     186,859
ssj_ops@calibrated=186,786
100% 99.8% 186,786 186,424
90% 90.7% 168,108 169,454
80% 79.7% 149,429 148,783
70% 70.0% 130,750 130,807
60% 59.8% 112,072 111,669
50% 50.1% 93,393 93,662
40% 40.2% 74,715 75,013
30% 29.9% 56,036 55,839
20% 20.4% 37,357 38,160
10% 10.1% 18,679 18,929
Active Idle   0 0
Graph of results
JVM 'localhost.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,654
Calibration 2     176,808
Calibration 3     177,295
ssj_ops@calibrated=177,051
100% 100.0% 177,051 177,101
90% 90.1% 159,346 159,563
80% 80.2% 141,641 141,999
70% 70.4% 123,936 124,682
60% 60.2% 106,231 106,661
50% 49.4% 88,526 87,502
40% 40.1% 70,821 70,922
30% 29.7% 53,115 52,619
20% 19.4% 35,410 34,427
10% 10.0% 17,705 17,775
Active Idle   0 0
Graph of results
JVM 'localhost.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,502
Calibration 2     186,619
Calibration 3     187,094
ssj_ops@calibrated=186,856
100% 99.7% 186,856 186,290
90% 89.6% 168,171 167,455
80% 79.4% 149,485 148,411
70% 69.8% 130,799 130,518
60% 60.4% 112,114 112,774
50% 50.2% 93,428 93,779
40% 40.2% 74,743 75,028
30% 30.2% 56,057 56,447
20% 20.2% 37,371 37,687
10% 10.0% 18,686 18,642
Active Idle   0 0
Graph of results
JVM 'localhost.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,487
Calibration 2     186,317
Calibration 3     186,314
ssj_ops@calibrated=186,315
100% 99.8% 186,315 185,862
90% 89.2% 167,684 166,208
80% 80.0% 149,052 149,056
70% 70.0% 130,421 130,481
60% 59.6% 111,789 110,973
50% 50.3% 93,158 93,625
40% 39.9% 74,526 74,297
30% 30.3% 55,895 56,537
20% 20.1% 37,263 37,400
10% 9.8% 18,632 18,296
Active Idle   0 0
Graph of results
JVM 'localhost.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,568
Calibration 2     183,971
Calibration 3     184,592
ssj_ops@calibrated=184,282
100% 99.6% 184,282 183,567
90% 89.2% 165,854 164,441
80% 80.2% 147,425 147,848
70% 70.5% 128,997 129,978
60% 60.2% 110,569 110,937
50% 49.9% 92,141 91,940
40% 39.2% 73,713 72,295
30% 30.1% 55,285 55,468
20% 19.8% 36,856 36,552
10% 9.9% 18,428 18,162
Active Idle   0 0
Graph of results
JVM 'localhost.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,176
Calibration 2     185,109
Calibration 3     185,851
ssj_ops@calibrated=185,480
100% 99.3% 185,480 184,102
90% 89.6% 166,932 166,122
80% 79.9% 148,384 148,196
70% 69.5% 129,836 128,975
60% 59.4% 111,288 110,123
50% 50.4% 92,740 93,511
40% 39.8% 74,192 73,898
30% 30.5% 55,644 56,619
20% 20.2% 37,096 37,412
10% 10.2% 18,548 18,977
Active Idle   0 0
Graph of results
JVM 'localhost.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,952
Calibration 2     188,152
Calibration 3     188,254
ssj_ops@calibrated=188,203
100% 99.9% 188,203 187,991
90% 90.6% 169,383 170,520
80% 80.4% 150,563 151,283
70% 70.0% 131,742 131,716
60% 60.1% 112,922 113,176
50% 49.6% 94,102 93,289
40% 40.0% 75,281 75,369
30% 30.3% 56,461 56,947
20% 20.0% 37,641 37,720
10% 10.2% 18,820 19,114
Active Idle   0 0
Graph of results
JVM 'localhost.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,116
Calibration 2     186,420
Calibration 3     187,161
ssj_ops@calibrated=186,791
100% 99.3% 186,791 185,399
90% 89.7% 168,112 167,573
80% 80.2% 149,433 149,867
70% 69.9% 130,754 130,599
60% 60.3% 112,074 112,675
50% 50.1% 93,395 93,492
40% 39.9% 74,716 74,566
30% 30.0% 56,037 56,003
20% 20.3% 37,358 37,899
10% 9.9% 18,679 18,469
Active Idle   0 0
Graph of results
JVM 'localhost.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,513
Calibration 2     187,528
Calibration 3     187,931
ssj_ops@calibrated=187,730
100% 99.4% 187,730 186,581
90% 89.9% 168,957 168,852
80% 79.8% 150,184 149,795
70% 69.7% 131,411 130,931
60% 60.4% 112,638 113,475
50% 50.3% 93,865 94,498
40% 40.2% 75,092 75,376
30% 30.1% 56,319 56,567
20% 19.9% 37,546 37,436
10% 10.2% 18,773 19,233
Active Idle   0 0
Graph of results
JVM 'localhost.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,668
Calibration 2     185,595
Calibration 3     184,899
ssj_ops@calibrated=185,247
100% 99.1% 185,247 183,636
90% 89.8% 166,722 166,392
80% 80.7% 148,197 149,403
70% 70.6% 129,673 130,806
60% 60.4% 111,148 111,843
50% 49.9% 92,623 92,367
40% 39.8% 74,099 73,662
30% 30.1% 55,574 55,714
20% 20.1% 37,049 37,223
10% 9.9% 18,525 18,303
Active Idle   0 0
Graph of results
JVM 'localhost.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,270
Calibration 2     184,798
Calibration 3     184,074
ssj_ops@calibrated=184,436
100% 99.3% 184,436 183,169
90% 90.9% 165,993 167,733
80% 79.6% 147,549 146,862
70% 70.3% 129,105 129,625
60% 59.8% 110,662 110,327
50% 50.3% 92,218 92,786
40% 39.9% 73,774 73,604
30% 29.7% 55,331 54,809
20% 20.2% 36,887 37,269
10% 9.7% 18,444 17,950
Active Idle   0 0
Graph of results
JVM 'localhost.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,314
Calibration 2     189,573
Calibration 3     189,209
ssj_ops@calibrated=189,391
100% 99.8% 189,391 189,054
90% 91.3% 170,452 172,993
80% 79.3% 151,513 150,219
70% 69.1% 132,574 130,902
60% 59.8% 113,634 113,249
50% 50.1% 94,695 94,839
40% 40.3% 75,756 76,259
30% 30.2% 56,817 57,134
20% 19.9% 37,878 37,720
10% 10.1% 18,939 19,208
Active Idle   0 0
Graph of results
JVM 'localhost.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,894
Calibration 2     185,875
Calibration 3     186,099
ssj_ops@calibrated=185,987
100% 99.7% 185,987 185,418
90% 90.1% 167,388 167,493
80% 80.0% 148,789 148,807
70% 70.6% 130,191 131,285
60% 60.3% 111,592 112,077
50% 50.2% 92,993 93,313
40% 40.2% 74,395 74,802
30% 29.5% 55,796 54,879
20% 19.9% 37,197 36,980
10% 10.1% 18,599 18,866
Active Idle   0 0
Graph of results
JVM 'localhost.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,757
Calibration 2     183,405
Calibration 3     183,802
ssj_ops@calibrated=183,604
100% 99.1% 183,604 181,973
90% 90.6% 165,243 166,353
80% 79.5% 146,883 145,912
70% 70.2% 128,523 128,811
60% 60.0% 110,162 110,112
50% 50.1% 91,802 91,993
40% 39.7% 73,441 72,843
30% 29.9% 55,081 54,952
20% 20.1% 36,721 36,816
10% 9.7% 18,360 17,809
Active Idle   0 0
Graph of results
JVM 'localhost.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,243
Calibration 2     188,293
Calibration 3     188,915
ssj_ops@calibrated=188,604
100% 99.6% 188,604 187,878
90% 90.1% 169,743 169,994
80% 80.2% 150,883 151,335
70% 70.2% 132,023 132,380
60% 60.0% 113,162 113,227
50% 49.8% 94,302 93,987
40% 40.5% 75,442 76,378
30% 30.2% 56,581 57,032
20% 20.2% 37,721 38,077
10% 10.2% 18,860 19,262
Active Idle   0 0
Graph of results
JVM 'localhost.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,648
Calibration 2     187,894
Calibration 3     187,864
ssj_ops@calibrated=187,879
100% 99.9% 187,879 187,756
90% 89.8% 169,091 168,648
80% 79.2% 150,303 148,718
70% 70.3% 131,515 132,034
60% 60.4% 112,727 113,457
50% 50.4% 93,939 94,762
40% 39.9% 75,152 74,986
30% 30.5% 56,364 57,389
20% 20.4% 37,576 38,304
10% 9.9% 18,788 18,646
Active Idle   0 0
Graph of results
JVM 'localhost.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,953
Calibration 2     188,702
Calibration 3     189,296
ssj_ops@calibrated=188,999
100% 99.7% 188,999 188,453
90% 89.7% 170,099 169,482
80% 80.4% 151,199 152,007
70% 69.9% 132,299 132,038
60% 60.1% 113,399 113,614
50% 49.8% 94,499 94,068
40% 39.6% 75,600 74,805
30% 29.7% 56,700 56,196
20% 19.7% 37,800 37,215
10% 10.0% 18,900 18,917
Active Idle   0 0
Graph of results
JVM 'localhost.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,770
Calibration 2     186,990
Calibration 3     187,915
ssj_ops@calibrated=187,452
100% 99.5% 187,452 186,437
90% 89.6% 168,707 167,896
80% 79.7% 149,962 149,493
70% 70.5% 131,217 132,247
60% 60.5% 112,471 113,339
50% 50.5% 93,726 94,688
40% 40.1% 74,981 75,144
30% 29.6% 56,236 55,479
20% 19.9% 37,490 37,291
10% 10.1% 18,745 18,969
Active Idle   0 0
Graph of results
JVM 'localhost.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,124
Calibration 2     187,046
Calibration 3     186,881
ssj_ops@calibrated=186,964
100% 99.5% 186,964 185,954
90% 90.1% 168,267 168,391
80% 80.0% 149,571 149,612
70% 69.4% 130,874 129,786
60% 59.8% 112,178 111,715
50% 49.9% 93,482 93,312
40% 40.1% 74,785 74,928
30% 30.2% 56,089 56,499
20% 20.0% 37,393 37,468
10% 10.0% 18,696 18,787
Active Idle   0 0
Graph of results
JVM 'localhost.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,427
Calibration 2     185,928
Calibration 3     185,723
ssj_ops@calibrated=185,825
100% 99.2% 185,825 184,418
90% 90.6% 167,243 168,394
80% 80.1% 148,660 148,903
70% 69.9% 130,078 129,957
60% 60.2% 111,495 111,876
50% 50.3% 92,913 93,515
40% 40.8% 74,330 75,791
30% 29.8% 55,748 55,454
20% 19.9% 37,165 36,889
10% 10.1% 18,583 18,775
Active Idle   0 0
Graph of results
JVM 'localhost.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,136
Calibration 2     185,927
Calibration 3     186,513
ssj_ops@calibrated=186,220
100% 99.6% 186,220 185,459
90% 89.9% 167,598 167,465
80% 80.7% 148,976 150,187
70% 70.3% 130,354 130,829
60% 59.7% 111,732 111,219
50% 49.9% 93,110 92,923
40% 40.2% 74,488 74,879
30% 30.0% 55,866 55,940
20% 19.8% 37,244 36,888
10% 10.2% 18,622 19,042
Active Idle   0 0
Graph of results
JVM 'localhost.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,823
Calibration 2     184,874
Calibration 3     185,143
ssj_ops@calibrated=185,009
100% 99.8% 185,009 184,638
90% 89.7% 166,508 165,973
80% 80.2% 148,007 148,400
70% 70.1% 129,506 129,654
60% 59.6% 111,005 110,273
50% 49.7% 92,504 91,975
40% 40.4% 74,003 74,772
30% 30.4% 55,503 56,315
20% 20.0% 37,002 36,960
10% 10.0% 18,501 18,472
Active Idle   0 0
Graph of results
JVM 'localhost.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,454
Calibration 2     187,374
Calibration 3     187,538
ssj_ops@calibrated=187,456
100% 99.7% 187,456 186,896
90% 90.7% 168,710 170,014
80% 79.5% 149,965 149,041
70% 70.0% 131,219 131,268
60% 60.0% 112,473 112,472
50% 49.7% 93,728 93,108
40% 40.6% 74,982 76,120
30% 29.8% 56,237 55,946
20% 19.5% 37,491 36,621
10% 9.9% 18,746 18,543
Active Idle   0 0
Graph of results
JVM 'localhost.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,671
Calibration 2     184,621
Calibration 3     184,942
ssj_ops@calibrated=184,781
100% 99.4% 184,781 183,688
90% 89.8% 166,303 165,965
80% 80.1% 147,825 148,005
70% 69.6% 129,347 128,686
60% 60.4% 110,869 111,535
50% 49.7% 92,391 91,854
40% 40.1% 73,912 74,098
30% 30.1% 55,434 55,592
20% 20.0% 36,956 36,942
10% 9.9% 18,478 18,275
Active Idle   0 0
Graph of results
JVM 'localhost.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,099
Calibration 2     189,819
Calibration 3     190,587
ssj_ops@calibrated=190,203
100% 99.5% 190,203 189,220
90% 90.4% 171,182 171,895
80% 80.4% 152,162 152,994
70% 70.2% 133,142 133,460
60% 60.3% 114,122 114,718
50% 49.9% 95,101 94,886
40% 40.1% 76,081 76,244
30% 30.4% 57,061 57,742
20% 20.1% 38,041 38,237
10% 10.1% 19,020 19,179
Active Idle   0 0
Graph of results
JVM 'localhost.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,625
Calibration 2     184,364
Calibration 3     184,990
ssj_ops@calibrated=184,677
100% 99.9% 184,677 184,476
90% 90.1% 166,209 166,399
80% 80.5% 147,742 148,635
70% 70.5% 129,274 130,215
60% 60.1% 110,806 110,980
50% 50.2% 92,339 92,668
40% 39.9% 73,871 73,776
30% 30.1% 55,403 55,504
20% 20.3% 36,935 37,571
10% 10.2% 18,468 18,867
Active Idle   0 0
Graph of results
JVM 'localhost.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,896
Calibration 2     186,762
Calibration 3     187,019
ssj_ops@calibrated=186,890
100% 100.1% 186,890 187,121
90% 90.2% 168,201 168,537
80% 80.5% 149,512 150,482
70% 69.7% 130,823 130,323
60% 59.8% 112,134 111,727
50% 49.9% 93,445 93,322
40% 39.9% 74,756 74,634
30% 30.4% 56,067 56,873
20% 19.9% 37,378 37,137
10% 10.0% 18,689 18,687
Active Idle   0 0
Graph of results
JVM 'localhost.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,729
Calibration 2     187,575
Calibration 3     188,698
ssj_ops@calibrated=188,137
100% 99.9% 188,137 187,914
90% 88.8% 169,323 167,109
80% 80.4% 150,509 151,185
70% 69.9% 131,696 131,571
60% 60.0% 112,882 112,843
50% 50.2% 94,068 94,393
40% 40.7% 75,255 76,613
30% 29.7% 56,441 55,958
20% 20.0% 37,627 37,687
10% 10.0% 18,814 18,870
Active Idle   0 0
Graph of results
JVM 'localhost.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,871
Calibration 2     189,174
Calibration 3     189,585
ssj_ops@calibrated=189,380
100% 98.8% 189,380 187,093
90% 90.0% 170,442 170,461
80% 79.5% 151,504 150,502
70% 69.7% 132,566 131,939
60% 60.1% 113,628 113,896
50% 50.5% 94,690 95,725
40% 40.5% 75,752 76,763
30% 30.4% 56,814 57,503
20% 19.9% 37,876 37,726
10% 10.3% 18,938 19,417
Active Idle   0 0
Graph of results
JVM 'localhost.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,143
Calibration 2     187,256
Calibration 3     187,505
ssj_ops@calibrated=187,381
100% 99.8% 187,381 186,995
90% 89.7% 168,642 168,058
80% 80.8% 149,904 151,314
70% 70.1% 131,166 131,361
60% 60.1% 112,428 112,589
50% 49.8% 93,690 93,373
40% 39.9% 74,952 74,726
30% 29.8% 56,214 55,769
20% 20.2% 37,476 37,762
10% 9.9% 18,738 18,621
Active Idle   0 0
Graph of results
