Lenovo Global Technology Think System SR645 ssj_ops@100% = 189,220
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 3, 2020
Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: May 11, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,099
Calibration 2     189,819
Calibration 3     190,587
ssj_ops@calibrated=190,203
100% 99.5% 190,203 189,220
90% 90.4% 171,182 171,895
80% 80.4% 152,162 152,994
70% 70.2% 133,142 133,460
60% 60.3% 114,122 114,718
50% 49.9% 95,101 94,886
40% 40.1% 76,081 76,244
30% 30.4% 57,061 57,742
20% 20.1% 38,041 38,237
10% 10.1% 19,020 19,179
Active Idle   0 0

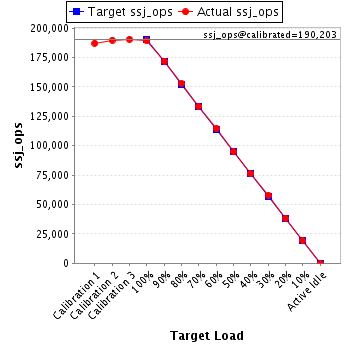

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25GHz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:SP57A14665
Disk Drive: 1 x 128GB M.2 SSD P/N:SSS7A06667
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.3+12-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances: 64
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: d8e105f-1.00
Management Firmware Version: d8bt05s-2.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,608,065 1,690
Payment 13,608,057
Order Status 1,360,805
Delivery 1,360,807
Stock Level 1,360,808
Customer Report 13,608,056
Calibration 2 New Order 13,805,080 1,690
Payment 13,805,081
Order Status 1,380,510
Delivery 1,380,507
Stock Level 1,380,506
Customer Report 13,805,087
Calibration 3 New Order 13,860,883 1,690
Payment 13,860,885
Order Status 1,386,087
Delivery 1,386,089
Stock Level 1,386,089
Customer Report 13,860,894
100% 99.5% New Order 13,761,488 1,690
Payment 13,761,484
Order Status 1,376,151
Delivery 1,376,146
Stock Level 1,376,148
Customer Report 13,761,487
90% 90.4% New Order 12,501,489 1,690
Payment 12,501,493
Order Status 1,250,150
Delivery 1,250,149
Stock Level 1,250,150
Customer Report 12,501,497
80% 80.4% New Order 11,126,862 1,690
Payment 11,126,868
Order Status 1,112,687
Delivery 1,112,686
Stock Level 1,112,686
Customer Report 11,126,864
70% 70.2% New Order 9,706,507 1,690
Payment 9,706,514
Order Status 970,650
Delivery 970,651
Stock Level 970,650
Customer Report 9,706,508
60% 60.3% New Order 8,343,134 1,690
Payment 8,343,141
Order Status 834,313
Delivery 834,315
Stock Level 834,312
Customer Report 8,343,135
50% 49.9% New Order 6,900,834 1,690
Payment 6,900,832
Order Status 690,083
Delivery 690,083
Stock Level 690,083
Customer Report 6,900,829
40% 40.1% New Order 5,545,020 1,690
Payment 5,545,025
Order Status 554,502
Delivery 554,502
Stock Level 554,504
Customer Report 5,545,018
30% 30.4% New Order 4,199,393 1,690
Payment 4,199,397
Order Status 419,939
Delivery 419,940
Stock Level 419,938
Customer Report 4,199,393
20% 20.1% New Order 2,780,858 1,690
Payment 2,780,853
Order Status 278,086
Delivery 278,085
Stock Level 278,087
Customer Report 2,780,852
10% 10.1% New Order 1,394,852 1,690
Payment 1,394,848
Order Status 139,483
Delivery 139,487
Stock Level 139,485
Customer Report 1,394,845
Active Idle New Order 0 1,690
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
