Hewlett Packard Enterprise ProLiant DL325 Gen10 SPECpower_ssj2008 = 15,724 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jul 16, 2019
Hardware Availability: Aug-2019 Software Availability: Jun-2019 Publication: Aug 7, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 5,142,018 224 22,950
90% 90.1% 4,655,750 215 21,652
80% 80.0% 4,137,334 205 20,190
70% 70.0% 3,617,555 195 18,565
60% 60.1% 3,108,213 185 16,824
50% 50.1% 2,591,339 174 14,850
40% 40.0% 2,066,690 161 12,815
30% 30.0% 1,551,092 143 10,827
20% 20.0% 1,034,743 125 8,254
10% 10.0% 517,356 109 4,732
Active Idle 0 70.3 0
∑ssj_ops / ∑power = 15,724

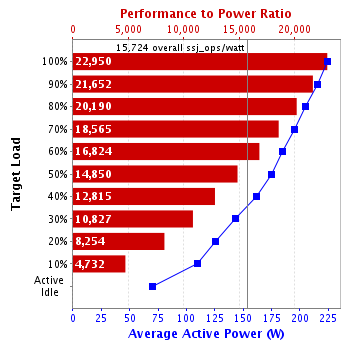

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL325 Gen10
Form Factor: 1U
CPU Name: AMD EPYC 7702P 2.00 GHz
CPU Characteristics: 64-Core, 2.00 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 7, 10, 12, 14 and 16 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.557)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: OpenJDK 64-Bit Server VM (build 12.0.1+12, mixed mode, sharing), openjdk version "12.0.1" 2019-04-16
JVM Command-line Options: -server -Xmx3740m -Xms3740m -Xmn3000m -XX:SurvivorRatio=15 -XX:InlineSmallCode=4000 -XX:FreqInlineSize=3000 -XX:+UseLargePages -XX:+UseBiasedLocking -XX:ParallelGCThreads=4 -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:AllocatePrefetchLines=7 -XX:MaxInlineSize=300 -XX:LoopUnrollLimit=30 -XX:AllocatePrefetchDistance=192 -XX:InitialTenuringThreshold=10
JVM Affinity: start /NODE [0-15] /AFFINITY [0xF, 0xF0]
JVM Instances: 32
JVM Initial Heap (MB): 3740
JVM Maximum Heap (MB): 3740
JVM Address Bits: 64
Boot Firmware Version: A41 v2.00 (07/15/2019)
Management Firmware Version: 1.43 pass 18 May 23 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft KB4504369, KB4503327, KB900088
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 G9
CPU Description: 2x Intel Xeon E5-2660 v4
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2012 R2
JVM Vendor: Oracle
JVM Version: 1.80_141-b15 (build 25.141-b15, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K308562
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-E553M-20-1
Date of Calibration: 21-May-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connected to Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 224 32.0
90% 215 32.4
80% 205 32.9
70% 195 33.2
60% 185 33.4
50% 174 33.3
40% 161 33.2
30% 143 33.1
20% 125 33.1
10% 109 33.2
Active Idle 70.3 33.1
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 32.0 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,157,280
Calibration 2     5,169,599
Calibration 3     5,169,113
ssj_ops@calibrated=5,169,356
100% 99.5% 5,169,356 5,142,018
90% 90.1% 4,652,421 4,655,750
80% 80.0% 4,135,485 4,137,334
70% 70.0% 3,618,549 3,617,555
60% 60.1% 3,101,614 3,108,213
50% 50.1% 2,584,678 2,591,339
40% 40.0% 2,067,743 2,066,690
30% 30.0% 1,550,807 1,551,092
20% 20.0% 1,033,871 1,034,743
10% 10.0% 516,936 517,356
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
