Hewlett Packard Enterprise ProLiant DL325 Gen10 SPECpower_ssj2008 = 15,724 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jul 16, 2019
Hardware Availability: Aug-2019 Software Availability: Jun-2019 Publication: Aug 7, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 219 30.5
Calibration 2 224 30.9
Calibration 3 224 31.5
100% 224 32.0
90% 215 32.4
80% 205 32.9
70% 195 33.2
60% 185 33.4
50% 174 33.3
40% 161 33.2
30% 143 33.1
20% 125 33.1
10% 109 33.2
Active Idle 70.3 33.1

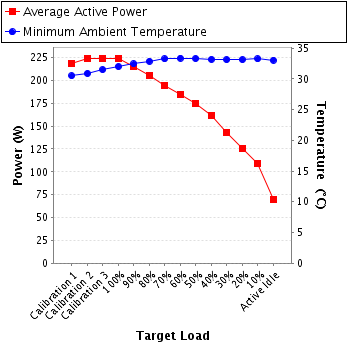

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K308562
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-E553M-20-1
Date of Calibration: 21-May-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connected to Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 1.09 2.0 0.947 219 0.5%
Calibration 2 212 300.0 1.11 2.0 0.949 224 0.5%
Calibration 3 212 300.0 1.11 2.0 0.949 224 0.5%
100% 212 300.0 1.11 2.0 0.949 224 0.5%
90% 212 300.0 1.07 2.0 0.945 215 0.5%
80% 212 300.0 1.03 2.0 0.941 205 0.5%
70% 212 300.0 0.983 2.0 0.935 195 0.5%
60% 212 300.0 0.939 2.0 0.927 185 0.6%
50% 212 300.0 0.893 2.0 0.921 174 0.6%
40% 212 300.0 0.837 2.0 0.909 161 0.6%
30% 212 300.0 0.758 1.0 0.890 143 0.5%
20% 212 300.0 0.684 1.0 0.864 125 0.5%
10% 212 300.0 0.618 1.0 0.834 109 0.6%
Active Idle 212 300.0 0.471 1.0 0.702 70.3 0.8%

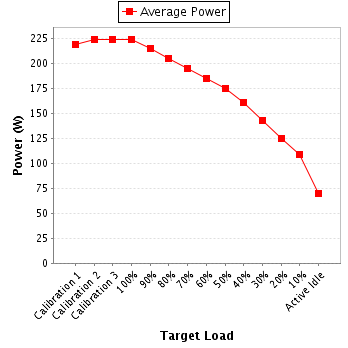

Power details for pwr1
