Fujitsu FUJITSU Server PRIMERGY RX2530 M5 SPECpower_ssj2008 = 13,006 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Apr 9, 2019
Hardware Availability: Jun-2019 Software Availability: Dec-2018 Publication: May 22, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 5,189,194 367 14,140
90% 89.9% 4,675,766 322 14,528
80% 80.2% 4,168,454 272 15,298
70% 70.4% 3,657,993 236 15,505
60% 59.9% 3,114,327 208 15,008
50% 50.0% 2,598,186 185 14,035
40% 40.0% 2,078,598 166 12,533
30% 30.0% 1,557,815 148 10,519
20% 19.9% 1,035,935 130 7,956
10% 10.0% 520,770 111 4,684
Active Idle 0 53.6 0
∑ssj_ops / ∑power = 13,006

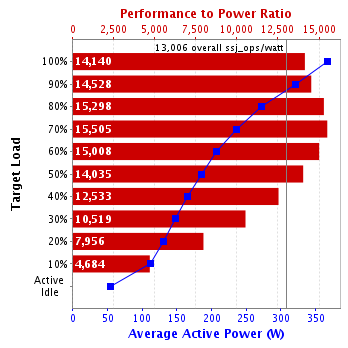

Graph of results
System Under Test
Set: 'RX2530M5'
Set Identifier: RX2530M5
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2530 M5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.20GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16 GB 2Rx8 PC4-2933Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x SSD M. 240GB, S26361-F5706-E240
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel(R) I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: chrt -r 1 taskset -c [(0,56),(1,57),(2,58),(3,59),(7,63),(8,64),(9,65),(14,70),(15,71),(16,72),(17,73),(21,77),(22,78),(23,79),(4,60),(5,61),(6,62),(10,66),(11,67),(12,68),(13,69),(18,74),(19,75),(20,76),(24,80),(25,81),(26,82),(27,83),(28,84),(29,85),(30,86),(31,87),(35,91),(36,92),(37,93),(42,98),(43,99),(44,100),(45,101),(49,105),(50,106),(51,107),(32,88),(33,89),(34,90),(38,94),(39,95),(40,96),(41,97),(46,102),(47,103),(48,104),(52,108),(53,109),(54,110),(55,111)] numactl --membind=[0-3]
JVM Instances: 56
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R1.8.0
Management Firmware Version: 2.00c
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX2530 M2
CPU Description: 2x Intel Xeon E5-2643 v4
Memory amount (GB): 64
Software
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: Hioki3336
Serial Number: 170130930
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION
Calibration Label: H06400086-1901
Date of Calibration: 30-Jan-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 367 23.1
90% 322 23.1
80% 272 22.9
70% 236 22.7
60% 208 22.6
50% 185 22.4
40% 166 22.4
30% 148 22.4
20% 130 22.4
10% 111 22.4
Active Idle 53.6 22.5
Line Standard Minimum Temperature (°C) Elevation (m)
200V / 50 Hz / 1 phase / 2 wires 22.4 11
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,145,381
Calibration 2     5,194,795
Calibration 3     5,201,978
ssj_ops@calibrated=5,198,386
100% 99.8% 5,198,386 5,189,194
90% 89.9% 4,678,548 4,675,766
80% 80.2% 4,158,709 4,168,454
70% 70.4% 3,638,870 3,657,993
60% 59.9% 3,119,032 3,114,327
50% 50.0% 2,599,193 2,598,186
40% 40.0% 2,079,354 2,078,598
30% 30.0% 1,559,516 1,557,815
20% 19.9% 1,039,677 1,035,935
10% 10.0% 519,839 520,770
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
