Fujitsu FUJITSU Server PRIMERGY RX2530 M5 ssj_ops@100% = 5,189,194
ssj_ops@100% per JVM = 92,664
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Apr 9, 2019
Hardware Availability: Jun-2019 Software Availability: Dec-2018 Publication: May 22, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,145,381
Calibration 2     5,194,795
Calibration 3     5,201,978
ssj_ops@calibrated=5,198,386
100% 99.8% 5,198,386 5,189,194
90% 89.9% 4,678,548 4,675,766
80% 80.2% 4,158,709 4,168,454
70% 70.4% 3,638,870 3,657,993
60% 59.9% 3,119,032 3,114,327
50% 50.0% 2,599,193 2,598,186
40% 40.0% 2,079,354 2,078,598
30% 30.0% 1,559,516 1,557,815
20% 19.9% 1,039,677 1,035,935
10% 10.0% 519,839 520,770
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX2530M5'
Set Identifier: RX2530M5
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2530 M5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.20GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16 GB 2Rx8 PC4-2933Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x SSD M. 240GB, S26361-F5706-E240
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel(R) I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: chrt -r 1 taskset -c [(0,56),(1,57),(2,58),(3,59),(7,63),(8,64),(9,65),(14,70),(15,71),(16,72),(17,73),(21,77),(22,78),(23,79),(4,60),(5,61),(6,62),(10,66),(11,67),(12,68),(13,69),(18,74),(19,75),(20,76),(24,80),(25,81),(26,82),(27,83),(28,84),(29,85),(30,86),(31,87),(35,91),(36,92),(37,93),(42,98),(43,99),(44,100),(45,101),(49,105),(50,106),(51,107),(32,88),(33,89),(34,90),(38,94),(39,95),(40,96),(41,97),(46,102),(47,103),(48,104),(52,108),(53,109),(54,110),(55,111)] numactl --membind=[0-3]
JVM Instances: 56
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R1.8.0
Management Firmware Version: 2.00c
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
localhost.001 39,500
localhost.002 90,757
localhost.003 94,473
localhost.004 94,705
localhost.005 92,740
localhost.006 93,230
localhost.007 93,731
localhost.008 93,847
localhost.009 94,816
localhost.010 93,734
localhost.011 93,910
localhost.012 91,642
localhost.013 93,868
localhost.014 92,399
localhost.015 91,471
localhost.016 93,508
localhost.017 92,475
localhost.018 93,782
localhost.019 91,012
localhost.020 91,821
localhost.021 91,796
localhost.022 91,263
localhost.023 93,037
localhost.024 91,523
localhost.025 91,184
localhost.026 92,258
localhost.027 90,128
localhost.028 91,270
localhost.029 95,586
localhost.030 94,034
localhost.031 94,134
localhost.032 94,345
localhost.033 93,606
localhost.034 95,030
localhost.035 92,988
localhost.036 95,218
localhost.037 94,909
localhost.038 95,566
localhost.039 94,582
localhost.040 93,954
localhost.041 94,734
localhost.042 94,322
localhost.043 96,775
localhost.044 94,130
localhost.045 94,172
localhost.046 93,702
localhost.047 91,602
localhost.048 95,638
localhost.049 94,957
localhost.050 93,076
localhost.051 96,550
localhost.052 96,025
localhost.053 95,308
localhost.054 95,069
localhost.055 95,528
localhost.056 93,779
ssj_ops@100% 5,189,194
ssj_ops@100% per JVM 92,664
Graph of per-instance results
JVM 'localhost.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     37,688
Calibration 2     39,502
Calibration 3     39,986
ssj_ops@calibrated=39,744
100% 99.4% 39,744 39,500
90% 89.0% 35,770 35,378
80% 79.6% 31,795 31,622
70% 69.8% 27,821 27,724
60% 60.8% 23,846 24,150
50% 50.9% 19,872 20,221
40% 39.6% 15,898 15,737
30% 28.7% 11,923 11,425
20% 19.5% 7,949 7,745
10% 10.0% 3,974 3,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,390
Calibration 2     90,591
Calibration 3     91,307
ssj_ops@calibrated=90,949
100% 99.8% 90,949 90,757
90% 89.8% 81,854 81,696
80% 80.1% 72,759 72,853
70% 70.4% 63,664 63,984
60% 60.0% 54,570 54,529
50% 50.0% 45,475 45,472
40% 39.8% 36,380 36,192
30% 30.3% 27,285 27,587
20% 19.9% 18,190 18,083
10% 10.0% 9,095 9,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,998
Calibration 2     94,720
Calibration 3     95,048
ssj_ops@calibrated=94,884
100% 99.6% 94,884 94,473
90% 89.0% 85,396 84,434
80% 79.3% 75,907 75,203
70% 70.4% 66,419 66,796
60% 60.2% 56,930 57,089
50% 50.3% 47,442 47,707
40% 40.1% 37,954 38,084
30% 30.4% 28,465 28,841
20% 20.1% 18,977 19,081
10% 9.7% 9,488 9,217
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,122
Calibration 2     94,500
Calibration 3     94,787
ssj_ops@calibrated=94,644
100% 100.1% 94,644 94,705
90% 90.3% 85,179 85,445
80% 79.0% 75,715 74,780
70% 69.6% 66,251 65,901
60% 60.5% 56,786 57,258
50% 50.2% 47,322 47,526
40% 39.9% 37,857 37,807
30% 30.3% 28,393 28,701
20% 19.7% 18,929 18,633
10% 9.9% 9,464 9,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,066
Calibration 2     92,881
Calibration 3     92,835
ssj_ops@calibrated=92,858
100% 99.9% 92,858 92,740
90% 90.1% 83,572 83,696
80% 79.0% 74,286 73,336
70% 69.9% 65,001 64,887
60% 60.0% 55,715 55,722
50% 49.7% 46,429 46,184
40% 39.6% 37,143 36,767
30% 30.8% 27,857 28,623
20% 19.8% 18,572 18,402
10% 10.2% 9,286 9,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,702
Calibration 2     93,155
Calibration 3     93,769
ssj_ops@calibrated=93,462
100% 99.8% 93,462 93,230
90% 89.4% 84,116 83,572
80% 80.6% 74,770 75,377
70% 70.1% 65,423 65,509
60% 59.3% 56,077 55,420
50% 50.0% 46,731 46,734
40% 40.2% 37,385 37,576
30% 29.4% 28,039 27,520
20% 19.9% 18,692 18,577
10% 10.2% 9,346 9,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,559
Calibration 2     93,799
Calibration 3     93,984
ssj_ops@calibrated=93,891
100% 99.8% 93,891 93,731
90% 89.8% 84,502 84,287
80% 80.9% 75,113 75,950
70% 71.1% 65,724 66,722
60% 60.0% 56,335 56,381
50% 50.7% 46,946 47,601
40% 40.1% 37,557 37,627
30% 30.9% 28,167 28,992
20% 20.2% 18,778 18,987
10% 10.2% 9,389 9,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,121
Calibration 2     93,944
Calibration 3     94,445
ssj_ops@calibrated=94,194
100% 99.6% 94,194 93,847
90% 90.0% 84,775 84,814
80% 81.9% 75,355 77,185
70% 70.0% 65,936 65,918
60% 60.5% 56,517 57,024
50% 50.5% 47,097 47,532
40% 39.3% 37,678 37,021
30% 29.8% 28,258 28,028
20% 19.9% 18,839 18,752
10% 10.1% 9,419 9,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,122
Calibration 2     94,699
Calibration 3     95,063
ssj_ops@calibrated=94,881
100% 99.9% 94,881 94,816
90% 91.0% 85,393 86,371
80% 79.5% 75,905 75,458
70% 70.9% 66,417 67,291
60% 59.5% 56,929 56,452
50% 49.3% 47,441 46,801
40% 39.9% 37,952 37,886
30% 30.1% 28,464 28,565
20% 20.4% 18,976 19,361
10% 9.9% 9,488 9,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,907
Calibration 2     93,628
Calibration 3     94,213
ssj_ops@calibrated=93,920
100% 99.8% 93,920 93,734
90% 89.1% 84,528 83,725
80% 80.4% 75,136 75,501
70% 70.2% 65,744 65,935
60% 60.1% 56,352 56,465
50% 49.9% 46,960 46,891
40% 40.2% 37,568 37,735
30% 29.7% 28,176 27,868
20% 20.0% 18,784 18,767
10% 9.9% 9,392 9,264
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,680
Calibration 2     94,399
Calibration 3     94,614
ssj_ops@calibrated=94,506
100% 99.4% 94,506 93,910
90% 90.6% 85,056 85,643
80% 80.0% 75,605 75,599
70% 71.2% 66,154 67,270
60% 59.9% 56,704 56,600
50% 49.5% 47,253 46,734
40% 39.7% 37,803 37,490
30% 29.9% 28,352 28,270
20% 20.1% 18,901 18,949
10% 10.4% 9,451 9,871
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,235
Calibration 2     91,761
Calibration 3     91,937
ssj_ops@calibrated=91,849
100% 99.8% 91,849 91,642
90% 89.8% 82,664 82,505
80% 81.6% 73,479 74,954
70% 71.4% 64,294 65,598
60% 60.5% 55,109 55,574
50% 50.4% 45,925 46,297
40% 38.8% 36,740 35,664
30% 30.3% 27,555 27,871
20% 19.5% 18,370 17,946
10% 10.6% 9,185 9,776
Active Idle   0 0

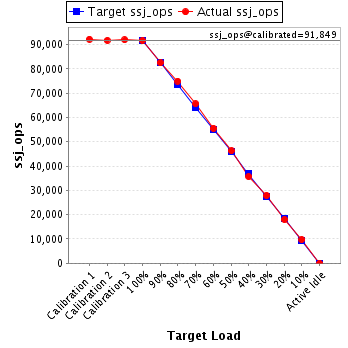

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,949
Calibration 2     94,130
Calibration 3     94,312
ssj_ops@calibrated=94,221
100% 99.6% 94,221 93,868
90% 90.0% 84,799 84,781
80% 79.6% 75,377 75,043
70% 70.3% 65,955 66,217
60% 58.9% 56,533 55,486
50% 49.4% 47,110 46,501
40% 38.9% 37,688 36,690
30% 29.8% 28,266 28,052
20% 19.8% 18,844 18,650
10% 9.8% 9,422 9,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,857
Calibration 2     92,422
Calibration 3     92,801
ssj_ops@calibrated=92,611
100% 99.8% 92,611 92,399
90% 89.2% 83,350 82,578
80% 80.1% 74,089 74,169
70% 69.5% 64,828 64,343
60% 59.4% 55,567 54,993
50% 49.6% 46,306 45,941
40% 40.0% 37,044 37,090
30% 30.2% 27,783 27,994
20% 20.1% 18,522 18,608
10% 9.9% 9,261 9,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,730
Calibration 2     92,118
Calibration 3     92,127
ssj_ops@calibrated=92,123
100% 99.3% 92,123 91,471
90% 89.7% 82,910 82,637
80% 81.1% 73,698 74,669
70% 70.9% 64,486 65,331
60% 60.1% 55,274 55,395
50% 49.5% 46,061 45,611
40% 40.3% 36,849 37,159
30% 30.1% 27,637 27,728
20% 19.8% 18,425 18,212
10% 10.0% 9,212 9,185
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,302
Calibration 2     93,275
Calibration 3     93,478
ssj_ops@calibrated=93,377
100% 100.1% 93,377 93,508
90% 89.9% 84,039 83,986
80% 79.7% 74,701 74,420
70% 69.5% 65,364 64,907
60% 60.3% 56,026 56,283
50% 49.4% 46,688 46,139
40% 40.4% 37,351 37,733
30% 29.7% 28,013 27,746
20% 19.9% 18,675 18,583
10% 10.2% 9,338 9,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,696
Calibration 2     92,352
Calibration 3     92,564
ssj_ops@calibrated=92,458
100% 100.0% 92,458 92,475
90% 88.6% 83,212 81,918
80% 80.4% 73,966 74,327
70% 71.6% 64,720 66,223
60% 59.0% 55,475 54,564
50% 50.1% 46,229 46,366
40% 40.5% 36,983 37,451
30% 30.2% 27,737 27,896
20% 20.0% 18,492 18,468
10% 9.7% 9,246 8,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,748
Calibration 2     93,591
Calibration 3     93,682
ssj_ops@calibrated=93,637
100% 100.2% 93,637 93,782
90% 90.0% 84,273 84,264
80% 80.2% 74,909 75,136
70% 69.9% 65,546 65,447
60% 60.6% 56,182 56,720
50% 50.3% 46,818 47,077
40% 40.2% 37,455 37,652
30% 29.8% 28,091 27,916
20% 19.6% 18,727 18,392
10% 10.2% 9,364 9,515
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,762
Calibration 2     90,601
Calibration 3     91,118
ssj_ops@calibrated=90,860
100% 100.2% 90,860 91,012
90% 90.2% 81,774 81,955
80% 80.5% 72,688 73,157
70% 69.9% 63,602 63,553
60% 60.8% 54,516 55,257
50% 49.1% 45,430 44,599
40% 40.7% 36,344 36,967
30% 29.8% 27,258 27,051
20% 19.7% 18,172 17,881
10% 10.0% 9,086 9,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,373
Calibration 2     92,290
Calibration 3     92,553
ssj_ops@calibrated=92,422
100% 99.4% 92,422 91,821
90% 89.7% 83,180 82,936
80% 82.2% 73,937 75,949
70% 71.3% 64,695 65,853
60% 59.7% 55,453 55,200
50% 50.0% 46,211 46,200
40% 39.8% 36,969 36,794
30% 29.6% 27,727 27,338
20% 20.4% 18,484 18,842
10% 10.1% 9,242 9,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,048
Calibration 2     92,064
Calibration 3     92,235
ssj_ops@calibrated=92,150
100% 99.6% 92,150 91,796
90% 90.1% 82,935 83,037
80% 80.6% 73,720 74,235
70% 70.5% 64,505 64,924
60% 58.6% 55,290 53,957
50% 50.2% 46,075 46,274
40% 40.7% 36,860 37,550
30% 29.7% 27,645 27,358
20% 20.1% 18,430 18,559
10% 9.8% 9,215 9,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,025
Calibration 2     91,533
Calibration 3     91,702
ssj_ops@calibrated=91,618
100% 99.6% 91,618 91,263
90% 90.8% 82,456 83,144
80% 80.3% 73,294 73,596
70% 70.6% 64,132 64,658
60% 60.9% 54,971 55,790
50% 50.6% 45,809 46,371
40% 40.1% 36,647 36,725
30% 30.3% 27,485 27,719
20% 19.8% 18,324 18,100
10% 9.9% 9,162 9,079
Active Idle   0 0

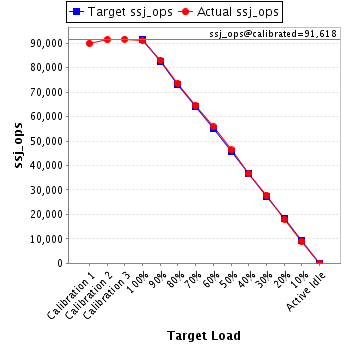

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,942
Calibration 2     92,880
Calibration 3     92,705
ssj_ops@calibrated=92,793
100% 100.3% 92,793 93,037
90% 89.9% 83,514 83,459
80% 79.9% 74,234 74,114
70% 69.4% 64,955 64,401
60% 59.3% 55,676 54,989
50% 50.7% 46,396 47,024
40% 40.3% 37,117 37,359
30% 30.0% 27,838 27,880
20% 20.1% 18,559 18,642
10% 9.9% 9,279 9,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,019
Calibration 2     91,876
Calibration 3     92,145
ssj_ops@calibrated=92,011
100% 99.5% 92,011 91,523
90% 89.4% 82,809 82,275
80% 79.9% 73,608 73,475
70% 71.3% 64,407 65,640
60% 61.2% 55,206 56,347
50% 50.4% 46,005 46,377
40% 40.4% 36,804 37,184
30% 30.1% 27,603 27,687
20% 20.5% 18,402 18,889
10% 9.9% 9,201 9,079
Active Idle   0 0

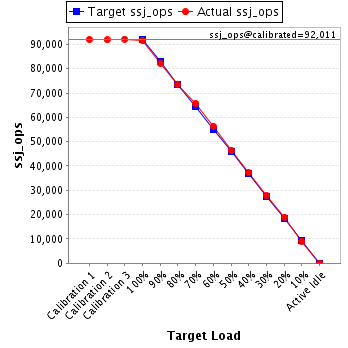

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,754
Calibration 2     91,350
Calibration 3     91,285
ssj_ops@calibrated=91,317
100% 99.9% 91,317 91,184
90% 89.5% 82,185 81,722
80% 79.5% 73,054 72,624
70% 70.9% 63,922 64,770
60% 59.4% 54,790 54,246
50% 49.2% 45,659 44,939
40% 39.8% 36,527 36,359
30% 30.3% 27,395 27,667
20% 19.7% 18,263 17,999
10% 10.0% 9,132 9,158
Active Idle   0 0

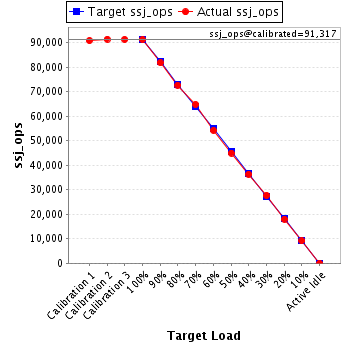

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,464
Calibration 2     92,427
Calibration 3     92,686
ssj_ops@calibrated=92,556
100% 99.7% 92,556 92,258
90% 90.4% 83,301 83,690
80% 78.5% 74,045 72,615
70% 70.0% 64,789 64,805
60% 59.4% 55,534 55,024
50% 50.9% 46,278 47,136
40% 40.2% 37,022 37,185
30% 29.6% 27,767 27,373
20% 20.1% 18,511 18,593
10% 9.7% 9,256 9,022
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,456
Calibration 2     90,433
Calibration 3     90,866
ssj_ops@calibrated=90,650
100% 99.4% 90,650 90,128
90% 89.8% 81,585 81,360
80% 79.4% 72,520 71,969
70% 69.6% 63,455 63,134
60% 60.1% 54,390 54,497
50% 50.7% 45,325 45,957
40% 40.1% 36,260 36,321
30% 30.0% 27,195 27,155
20% 19.6% 18,130 17,812
10% 10.3% 9,065 9,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,848
Calibration 2     90,848
Calibration 3     91,160
ssj_ops@calibrated=91,004
100% 100.3% 91,004 91,270
90% 88.7% 81,904 80,681
80% 82.0% 72,803 74,626
70% 70.8% 63,703 64,427
60% 60.0% 54,603 54,622
50% 49.8% 45,502 45,354
40% 40.0% 36,402 36,367
30% 30.4% 27,301 27,624
20% 19.8% 18,201 18,025
10% 9.8% 9,100 8,896
Active Idle   0 0

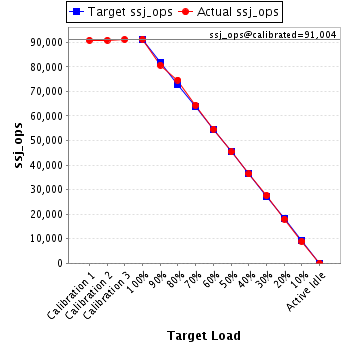

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,523
Calibration 2     95,802
Calibration 3     95,787
ssj_ops@calibrated=95,795
100% 99.8% 95,795 95,586
90% 90.8% 86,215 87,016
80% 80.7% 76,636 77,299
70% 71.0% 67,056 68,041
60% 59.8% 57,477 57,310
50% 49.5% 47,897 47,417
40% 40.5% 38,318 38,817
30% 30.3% 28,738 29,067
20% 19.9% 19,159 19,075
10% 9.6% 9,579 9,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,759
Calibration 2     94,505
Calibration 3     94,641
ssj_ops@calibrated=94,573
100% 99.4% 94,573 94,034
90% 90.0% 85,116 85,139
80% 80.8% 75,659 76,441
70% 70.1% 66,201 66,304
60% 59.6% 56,744 56,376
50% 49.9% 47,287 47,187
40% 39.8% 37,829 37,675
30% 30.4% 28,372 28,737
20% 20.0% 18,915 18,933
10% 10.1% 9,457 9,568
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,747
Calibration 2     94,763
Calibration 3     94,335
ssj_ops@calibrated=94,549
100% 99.6% 94,549 94,134
90% 90.3% 85,094 85,411
80% 79.2% 75,639 74,915
70% 70.3% 66,184 66,424
60% 59.6% 56,729 56,316
50% 50.2% 47,275 47,421
40% 40.7% 37,820 38,528
30% 29.7% 28,365 28,114
20% 20.2% 18,910 19,092
10% 10.0% 9,455 9,417
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,489
Calibration 2     94,640
Calibration 3     94,929
ssj_ops@calibrated=94,785
100% 99.5% 94,785 94,345
90% 90.5% 85,306 85,764
80% 81.7% 75,828 77,471
70% 70.0% 66,349 66,375
60% 59.0% 56,871 55,939
50% 50.3% 47,392 47,646
40% 40.5% 37,914 38,395
30% 30.0% 28,435 28,412
20% 20.6% 18,957 19,556
10% 10.1% 9,478 9,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,529
Calibration 2     93,342
Calibration 3     92,969
ssj_ops@calibrated=93,155
100% 100.5% 93,155 93,606
90% 90.3% 83,840 84,130
80% 80.0% 74,524 74,499
70% 71.2% 65,209 66,329
60% 59.7% 55,893 55,641
50% 50.3% 46,578 46,827
40% 39.1% 37,262 36,444
30% 29.5% 27,947 27,449
20% 20.1% 18,631 18,746
10% 9.8% 9,316 9,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,899
Calibration 2     95,652
Calibration 3     95,365
ssj_ops@calibrated=95,509
100% 99.5% 95,509 95,030
90% 90.6% 85,958 86,499
80% 79.6% 76,407 76,014
70% 69.7% 66,856 66,575
60% 60.0% 57,305 57,291
50% 49.5% 47,754 47,250
40% 39.3% 38,204 37,499
30% 30.6% 28,653 29,215
20% 19.9% 19,102 19,050
10% 9.9% 9,551 9,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,053
Calibration 2     92,510
Calibration 3     93,099
ssj_ops@calibrated=92,804
100% 100.2% 92,804 92,988
90% 90.1% 83,524 83,580
80% 80.5% 74,243 74,683
70% 70.0% 64,963 64,933
60% 60.9% 55,683 56,472
50% 50.1% 46,402 46,456
40% 40.6% 37,122 37,711
30% 29.3% 27,841 27,237
20% 20.3% 18,561 18,823
10% 9.8% 9,280 9,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,234
Calibration 2     95,455
Calibration 3     95,806
ssj_ops@calibrated=95,631
100% 99.6% 95,631 95,218
90% 90.8% 86,068 86,865
80% 79.5% 76,504 76,049
70% 70.7% 66,941 67,633
60% 59.8% 57,378 57,181
50% 49.6% 47,815 47,446
40% 40.6% 38,252 38,856
30% 29.8% 28,689 28,466
20% 19.8% 19,126 18,917
10% 10.2% 9,563 9,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,031
Calibration 2     94,825
Calibration 3     94,305
ssj_ops@calibrated=94,565
100% 100.4% 94,565 94,909
90% 90.1% 85,109 85,156
80% 80.2% 75,652 75,868
70% 70.5% 66,196 66,668
60% 59.9% 56,739 56,659
50% 49.5% 47,283 46,853
40% 40.6% 37,826 38,384
30% 29.9% 28,370 28,322
20% 20.0% 18,913 18,883
10% 10.1% 9,457 9,542
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,566
Calibration 2     95,755
Calibration 3     95,462
ssj_ops@calibrated=95,609
100% 100.0% 95,609 95,566
90% 90.2% 86,048 86,271
80% 81.5% 76,487 77,938
70% 69.8% 66,926 66,750
60% 59.4% 57,365 56,835
50% 49.4% 47,804 47,207
40% 39.5% 38,243 37,789
30% 29.8% 28,683 28,521
20% 19.5% 19,122 18,662
10% 10.4% 9,561 9,956
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

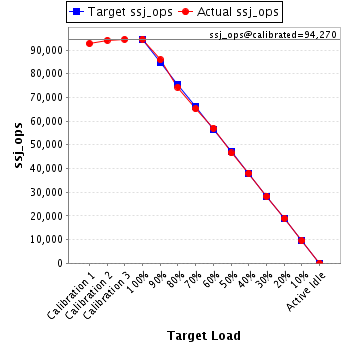

JVM 'localhost.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,675
Calibration 2     94,053
Calibration 3     94,488
ssj_ops@calibrated=94,270
100% 100.3% 94,270 94,582
90% 91.1% 84,843 85,887
80% 78.8% 75,416 74,281
70% 69.1% 65,989 65,186
60% 60.5% 56,562 56,992
50% 49.4% 47,135 46,543
40% 40.3% 37,708 38,001
30% 30.0% 28,281 28,298
20% 20.1% 18,854 18,934
10% 10.1% 9,427 9,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

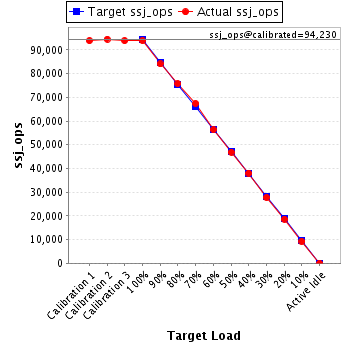

JVM 'localhost.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,875
Calibration 2     94,565
Calibration 3     93,896
ssj_ops@calibrated=94,230
100% 99.7% 94,230 93,954
90% 89.3% 84,807 84,104
80% 80.4% 75,384 75,806
70% 71.6% 65,961 67,440
60% 59.8% 56,538 56,341
50% 49.8% 47,115 46,883
40% 40.4% 37,692 38,027
30% 29.5% 28,269 27,755
20% 19.7% 18,846 18,603
10% 9.8% 9,423 9,217
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,372
Calibration 2     94,975
Calibration 3     94,703
ssj_ops@calibrated=94,839
100% 99.9% 94,839 94,734
90% 90.1% 85,355 85,418
80% 80.6% 75,871 76,406
70% 70.3% 66,387 66,685
60% 59.3% 56,903 56,276
50% 50.9% 47,419 48,253
40% 40.3% 37,936 38,212
30% 30.1% 28,452 28,558
20% 19.4% 18,968 18,379
10% 10.1% 9,484 9,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,577
Calibration 2     94,308
Calibration 3     95,033
ssj_ops@calibrated=94,671
100% 99.6% 94,671 94,322
90% 89.5% 85,204 84,711
80% 79.3% 75,737 75,119
70% 69.6% 66,270 65,918
60% 59.1% 56,802 55,910
50% 50.2% 47,335 47,497
40% 40.3% 37,868 38,115
30% 29.4% 28,401 27,849
20% 19.4% 18,934 18,385
10% 10.1% 9,467 9,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,542
Calibration 2     96,330
Calibration 3     96,815
ssj_ops@calibrated=96,572
100% 100.2% 96,572 96,775
90% 90.3% 86,915 87,247
80% 79.2% 77,258 76,499
70% 69.8% 67,601 67,410
60% 60.0% 57,943 57,966
50% 50.4% 48,286 48,642
40% 39.3% 38,629 37,912
30% 30.0% 28,972 28,985
20% 19.9% 19,314 19,189
10% 10.0% 9,657 9,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

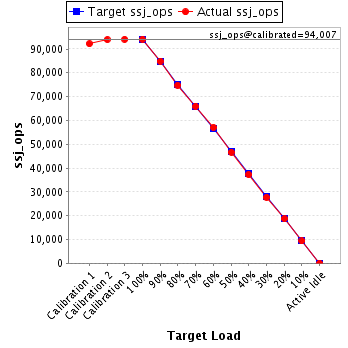

JVM 'localhost.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,169
Calibration 2     93,945
Calibration 3     94,069
ssj_ops@calibrated=94,007
100% 100.1% 94,007 94,130
90% 90.3% 84,606 84,908
80% 79.5% 75,206 74,749
70% 70.2% 65,805 66,001
60% 60.7% 56,404 57,034
50% 49.6% 47,004 46,650
40% 39.6% 37,603 37,216
30% 29.5% 28,202 27,704
20% 19.9% 18,801 18,723
10% 10.0% 9,401 9,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,868
Calibration 2     94,263
Calibration 3     94,389
ssj_ops@calibrated=94,326
100% 99.8% 94,326 94,172
90% 90.3% 84,894 85,199
80% 80.3% 75,461 75,783
70% 70.6% 66,028 66,619
60% 61.0% 56,596 57,510
50% 50.1% 47,163 47,232
40% 39.8% 37,731 37,516
30% 30.8% 28,298 29,029
20% 19.6% 18,865 18,522
10% 10.2% 9,433 9,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,928
Calibration 2     93,364
Calibration 3     93,583
ssj_ops@calibrated=93,473
100% 100.2% 93,473 93,702
90% 90.4% 84,126 84,517
80% 80.7% 74,779 75,446
70% 70.0% 65,431 65,393
60% 61.1% 56,084 57,100
50% 50.1% 46,737 46,806
40% 40.0% 37,389 37,369
30% 29.7% 28,042 27,766
20% 19.7% 18,695 18,387
10% 10.2% 9,347 9,579
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,878
Calibration 2     91,640
Calibration 3     91,478
ssj_ops@calibrated=91,559
100% 100.0% 91,559 91,602
90% 90.2% 82,403 82,554
80% 80.6% 73,247 73,751
70% 70.5% 64,091 64,579
60% 60.8% 54,935 55,671
50% 49.6% 45,780 45,401
40% 39.7% 36,624 36,332
30% 29.7% 27,468 27,228
20% 20.3% 18,312 18,631
10% 9.9% 9,156 9,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

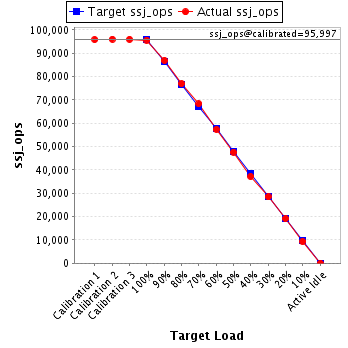

JVM 'localhost.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,841
Calibration 2     96,025
Calibration 3     95,970
ssj_ops@calibrated=95,997
100% 99.6% 95,997 95,638
90% 90.5% 86,398 86,920
80% 80.1% 76,798 76,937
70% 71.1% 67,198 68,290
60% 59.7% 57,598 57,358
50% 49.6% 47,999 47,654
40% 38.7% 38,399 37,168
30% 29.6% 28,799 28,435
20% 19.9% 19,199 19,131
10% 9.7% 9,600 9,321
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,590
Calibration 2     95,461
Calibration 3     95,332
ssj_ops@calibrated=95,397
100% 99.5% 95,397 94,957
90% 90.3% 85,857 86,122
80% 80.6% 76,317 76,937
70% 70.2% 66,778 66,985
60% 59.0% 57,238 56,327
50% 49.3% 47,698 47,007
40% 39.5% 38,159 37,682
30% 30.2% 28,619 28,851
20% 20.0% 19,079 19,085
10% 9.9% 9,540 9,417
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,437
Calibration 2     92,701
Calibration 3     92,625
ssj_ops@calibrated=92,663
100% 100.4% 92,663 93,076
90% 90.7% 83,397 84,075
80% 80.6% 74,130 74,647
70% 70.6% 64,864 65,435
60% 59.6% 55,598 55,196
50% 50.2% 46,332 46,561
40% 40.1% 37,065 37,196
30% 29.7% 27,799 27,523
20% 19.8% 18,533 18,379
10% 10.0% 9,266 9,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,747
Calibration 2     96,314
Calibration 3     96,536
ssj_ops@calibrated=96,425
100% 100.1% 96,425 96,550
90% 88.5% 86,783 85,344
80% 80.6% 77,140 77,689
70% 70.5% 67,498 68,006
60% 60.1% 57,855 57,905
50% 50.7% 48,213 48,917
40% 40.1% 38,570 38,658
30% 30.4% 28,928 29,332
20% 20.3% 19,285 19,547
10% 10.2% 9,643 9,871
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,941
Calibration 2     96,148
Calibration 3     95,912
ssj_ops@calibrated=96,030
100% 100.0% 96,030 96,025
90% 89.6% 86,427 86,035
80% 80.7% 76,824 77,468
70% 69.4% 67,221 66,655
60% 60.5% 57,618 58,054
50% 50.0% 48,015 48,028
40% 39.3% 38,412 37,715
30% 29.6% 28,809 28,398
20% 19.8% 19,206 19,054
10% 9.7% 9,603 9,323
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,107
Calibration 2     96,190
Calibration 3     95,966
ssj_ops@calibrated=96,078
100% 99.2% 96,078 95,308
90% 88.9% 86,470 85,380
80% 79.3% 76,862 76,194
70% 71.5% 67,255 68,737
60% 58.6% 57,647 56,305
50% 50.3% 48,039 48,345
40% 39.7% 38,431 38,100
30% 30.3% 28,823 29,103
20% 19.7% 19,216 18,906
10% 10.2% 9,608 9,771
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,350
Calibration 2     95,182
Calibration 3     95,258
ssj_ops@calibrated=95,220
100% 99.8% 95,220 95,069
90% 89.2% 85,698 84,901
80% 80.3% 76,176 76,450
70% 71.1% 66,654 67,730
60% 59.7% 57,132 56,839
50% 50.7% 47,610 48,300
40% 39.8% 38,088 37,925
30% 29.8% 28,566 28,390
20% 20.1% 19,044 19,186
10% 10.0% 9,522 9,561
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,692
Calibration 2     95,764
Calibration 3     95,483
ssj_ops@calibrated=95,623
100% 99.9% 95,623 95,528
90% 90.7% 86,061 86,685
80% 79.7% 76,498 76,170
70% 70.1% 66,936 67,079
60% 60.0% 57,374 57,332
50% 49.2% 47,812 47,026
40% 41.1% 38,249 39,256
30% 30.1% 28,687 28,758
20% 19.8% 19,125 18,917
10% 10.3% 9,562 9,861
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,396
Calibration 2     94,547
Calibration 3     94,337
ssj_ops@calibrated=94,442
100% 99.3% 94,442 93,779
90% 88.9% 84,998 83,937
80% 79.4% 75,553 75,000
70% 69.5% 66,109 65,643
60% 59.5% 56,665 56,162
50% 49.9% 47,221 47,166
40% 40.2% 37,777 37,928
30% 29.5% 28,333 27,836
20% 19.8% 18,888 18,698
10% 10.4% 9,444 9,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
