SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module			ssj_ops@100% = 45,793,948 ssj_ops@100% per Host = 5,724,243 ssj_ops@100% per JVM = 1,431,061
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Aug 24, 2018
Hardware Availability:	Jun-2018	Software Availability:	Mar-2018	Publication:	Sep 12, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			45,881,606
Calibration 2			45,888,979
Calibration 3			45,967,237
ssj_ops@calibrated=45,928,108
100%	99.7%	45,928,108	45,793,948
90%	90.0%	41,335,297	41,331,249
80%	80.1%	36,742,486	36,785,484
70%	70.0%	32,149,676	32,133,609
60%	60.0%	27,556,865	27,565,365
50%	50.0%	22,964,054	22,959,496
40%	40.0%	18,371,243	18,375,047
30%	30.0%	13,778,432	13,769,859
20%	20.0%	9,185,622	9,185,156
10%	10.0%	4,592,811	4,597,764
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
8	16	448	896	1,536	8	32

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1
Network Switch Details:	HP A5820X Series Switch JG219A
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10Gb Pass Thru Module (799330-B21), 1 x HPE Synergy Composer (804353-B21), 1 x HPE Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	8
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Compute Module
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	4
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I42 v1.32 (02/01/2018)
Management Firmware Version:	1.15 Aug 17 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
Embedded SATA Controller #1: Disabled
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active
Synergy Frame Power Supply mode set to Redundant Power Supply via HPE OneView.

Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Aug 14, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

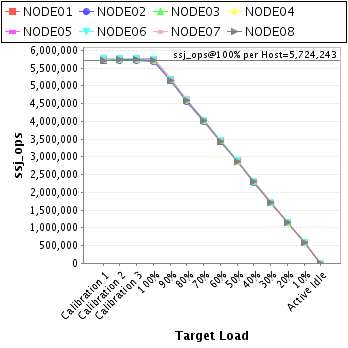

Host Instance Summary

Host	ssj_ops@100%
NODE01	5,720,994
NODE02	5,693,258
NODE03	5,720,497
NODE04	5,726,327
NODE05	5,756,989
NODE06	5,744,733
NODE07	5,710,983
NODE08	5,720,166
ssj_ops@100%	45,793,948
ssj_ops@100% per Host	5,724,243
ssj_ops@100% per JVM	1,431,061

Host 'NODE01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,712,558
Calibration 2			5,732,085
Calibration 3			5,745,310
ssj_ops@calibrated=5,738,697
100%	99.7%	5,738,697	5,720,994
90%	90.0%	5,164,828	5,167,435
80%	80.0%	4,590,958	4,591,276
70%	70.0%	4,017,088	4,018,365
60%	59.9%	3,443,218	3,436,964
50%	50.0%	2,869,349	2,868,447
40%	40.0%	2,295,479	2,298,011
30%	30.0%	1,721,609	1,720,403
20%	20.0%	1,147,739	1,148,348
10%	10.0%	573,870	573,984
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,706,984
Calibration 2			5,704,971
Calibration 3			5,716,393
ssj_ops@calibrated=5,710,682
100%	99.7%	5,710,682	5,693,258
90%	89.9%	5,139,614	5,135,277
80%	79.9%	4,568,545	4,564,340
70%	70.0%	3,997,477	3,997,612
60%	60.1%	3,426,409	3,429,684
50%	50.0%	2,855,341	2,857,296
40%	40.0%	2,284,273	2,281,707
30%	30.0%	1,713,205	1,712,513
20%	20.0%	1,142,136	1,142,438
10%	10.1%	571,068	575,113
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,734,017
Calibration 2			5,733,422
Calibration 3			5,746,158
ssj_ops@calibrated=5,739,790
100%	99.7%	5,739,790	5,720,497
90%	90.0%	5,165,811	5,165,326
80%	80.1%	4,591,832	4,600,421
70%	70.0%	4,017,853	4,016,109
60%	60.1%	3,443,874	3,451,370
50%	50.0%	2,869,895	2,867,229
40%	39.9%	2,295,916	2,291,538
30%	29.9%	1,721,937	1,718,632
20%	20.0%	1,147,958	1,148,058
10%	10.0%	573,979	574,609
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,737,006
Calibration 2			5,735,691
Calibration 3			5,748,231
ssj_ops@calibrated=5,741,961
100%	99.7%	5,741,961	5,726,327
90%	90.1%	5,167,765	5,171,895
80%	80.0%	4,593,569	4,592,346
70%	70.0%	4,019,373	4,020,516
60%	60.1%	3,445,177	3,449,949
50%	50.0%	2,870,981	2,870,486
40%	40.2%	2,296,784	2,306,138
30%	30.1%	1,722,588	1,726,458
20%	19.9%	1,148,392	1,144,253
10%	10.0%	574,196	575,562
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,775,763
Calibration 2			5,771,465
Calibration 3			5,778,089
ssj_ops@calibrated=5,774,777
100%	99.7%	5,774,777	5,756,989
90%	90.1%	5,197,299	5,200,327
80%	80.0%	4,619,822	4,616,945
70%	70.0%	4,042,344	4,044,199
60%	60.0%	3,464,866	3,464,154
50%	49.9%	2,887,389	2,884,145
40%	40.0%	2,309,911	2,310,785
30%	29.9%	1,732,433	1,727,986
20%	20.0%	1,154,955	1,154,080
10%	10.0%	577,478	576,369
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE06' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,758,317
Calibration 2			5,757,309
Calibration 3			5,759,622
ssj_ops@calibrated=5,758,466
100%	99.8%	5,758,466	5,744,733
90%	89.9%	5,182,619	5,175,447
80%	80.1%	4,606,773	4,614,333
70%	69.9%	4,030,926	4,026,799
60%	60.0%	3,455,079	3,455,725
50%	50.1%	2,879,233	2,883,847
40%	40.0%	2,303,386	2,301,047
30%	29.9%	1,727,540	1,722,412
20%	20.0%	1,151,693	1,149,650
10%	10.0%	575,847	575,470
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE07' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,733,713
Calibration 2			5,723,168
Calibration 3			5,736,183
ssj_ops@calibrated=5,729,676
100%	99.7%	5,729,676	5,710,983
90%	90.0%	5,156,708	5,158,397
80%	80.5%	4,583,741	4,614,475
70%	69.8%	4,010,773	4,001,210
60%	60.0%	3,437,806	3,437,496
50%	49.9%	2,864,838	2,860,912
40%	40.0%	2,291,870	2,292,170
30%	30.1%	1,718,903	1,722,844
20%	20.0%	1,145,935	1,148,008
10%	10.0%	572,968	571,170
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE08' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,723,248
Calibration 2			5,730,867
Calibration 3			5,737,251
ssj_ops@calibrated=5,734,059
100%	99.8%	5,734,059	5,720,166
90%	89.9%	5,160,653	5,157,145
80%	80.1%	4,587,247	4,591,348
70%	69.9%	4,013,841	4,008,800
60%	60.0%	3,440,435	3,440,022
50%	50.0%	2,867,029	2,867,134
40%	40.0%	2,293,623	2,293,650
30%	30.0%	1,720,218	1,718,612
20%	20.1%	1,146,812	1,150,322
10%	10.0%	573,406	575,486
Active Idle		0	0

See the Host Performance Report for additional details.
