Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,744,733
ssj_ops@100% per JVM = 1,436,183
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,758,317
Calibration 2     5,757,309
Calibration 3     5,759,622
ssj_ops@calibrated=5,758,466
100% 99.8% 5,758,466 5,744,733
90% 89.9% 5,182,619 5,175,447
80% 80.1% 4,606,773 4,614,333
70% 69.9% 4,030,926 4,026,799
60% 60.0% 3,455,079 3,455,725
50% 50.1% 2,879,233 2,883,847
40% 40.0% 2,303,386 2,301,047
30% 29.9% 1,727,540 1,722,412
20% 20.0% 1,151,693 1,149,650
10% 10.0% 575,847 575,470
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE06.001 1,443,802
NODE06.002 1,427,659
NODE06.003 1,431,680
NODE06.004 1,441,593
ssj_ops@100% 5,744,733
ssj_ops@100% per JVM 1,436,183
Graph of per-instance results

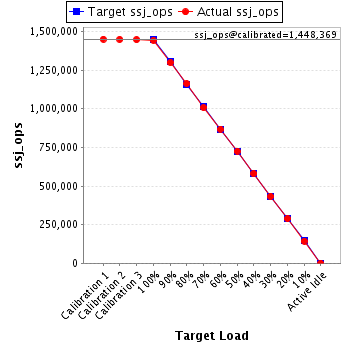

JVM 'NODE06.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,450,906
Calibration 2     1,449,270
Calibration 3     1,447,468
ssj_ops@calibrated=1,448,369
100% 99.7% 1,448,369 1,443,802
90% 89.7% 1,303,532 1,299,263
80% 80.4% 1,158,695 1,163,875
70% 69.6% 1,013,858 1,007,627
60% 60.0% 869,022 869,242
50% 50.1% 724,185 725,882
40% 40.0% 579,348 579,812
30% 29.9% 434,511 432,886
20% 19.9% 289,674 288,298
10% 9.9% 144,837 142,956
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE06.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,431,591
Calibration 2     1,429,905
Calibration 3     1,432,273
ssj_ops@calibrated=1,431,089
100% 99.8% 1,431,089 1,427,659
90% 89.8% 1,287,980 1,285,657
80% 80.1% 1,144,871 1,146,299
70% 69.9% 1,001,762 1,000,810
60% 59.9% 858,653 856,990
50% 49.9% 715,545 714,619
40% 39.9% 572,436 571,615
30% 29.8% 429,327 426,577
20% 20.1% 286,218 287,667
10% 10.1% 143,109 144,417
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

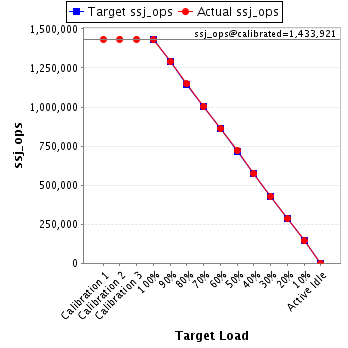

JVM 'NODE06.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,087
Calibration 2     1,434,270
Calibration 3     1,433,573
ssj_ops@calibrated=1,433,921
100% 99.8% 1,433,921 1,431,680
90% 90.0% 1,290,529 1,290,595
80% 80.1% 1,147,137 1,148,481
70% 70.1% 1,003,745 1,004,958
60% 60.1% 860,353 861,281
50% 50.2% 716,961 719,677
40% 40.0% 573,569 572,983
30% 29.9% 430,176 428,781
20% 19.9% 286,784 285,417
10% 10.0% 143,392 143,752
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

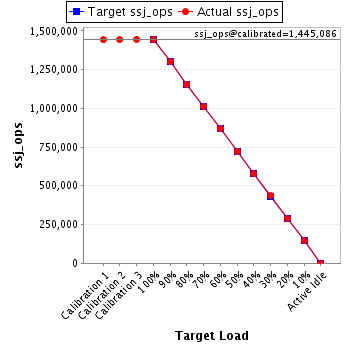

JVM 'NODE06.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,442,732
Calibration 2     1,443,864
Calibration 3     1,446,308
ssj_ops@calibrated=1,445,086
100% 99.8% 1,445,086 1,441,593
90% 90.0% 1,300,577 1,299,933
80% 80.0% 1,156,069 1,155,678
70% 70.1% 1,011,560 1,013,404
60% 60.1% 867,052 868,212
50% 50.1% 722,543 723,669
40% 39.9% 578,034 576,637
30% 30.0% 433,526 434,168
20% 19.9% 289,017 288,268
10% 10.0% 144,509 144,345
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
