SPECpower_ssj2008

Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module			SPECpower_ssj2008 = 10,872 overall ssj_ops/watt
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Apr 6, 2018
Hardware Availability:	Jun-2018	Software Availability:	Mar-2018	Publication:	Apr 25, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Performance			Power	Performance to Power Ratio
Target Load	Actual Load	ssj_ops	Average Active Power (W)	Performance to Power Ratio
100%	99.7%	68,782,048	5,816	11,825
90%	90.1%	62,142,573	5,269	11,795
80%	79.9%	55,147,007	4,417	12,485
70%	70.0%	48,270,941	3,803	12,692
60%	60.0%	41,397,135	3,303	12,532
50%	50.0%	34,483,600	2,884	11,956
40%	40.0%	27,582,779	2,553	10,805
30%	30.0%	20,699,871	2,263	9,146
20%	20.0%	13,793,172	1,982	6,960
10%	10.0%	6,902,852	1,689	4,087
Active Idle		0	901	0
∑ssj_ops / ∑power =				10,872

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
12	24	672	1,344	2,304	12	48

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1
Network Switch Details:	HP A5820X Series Switch JG219A
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10Gb Pass Thru Module (799330-B21), 1 x HPE Synergy Composer (804353-B21), 1 x HPE Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	12
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Compute Module
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	4
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I42 v1.32 (02/01/2018)
Management Firmware Version:	1.15 Aug 17 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
Embedded SATA Controller #1: Disabled
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active
Synergy Frame Power Supply mode set to Redundant Power Supply via HPE OneView.

Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Feb 28, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Controller System

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL360 Gen9
CPU Description:	2 x Intel Xeon E5-2660 v3
Memory amount (GB):	128

Software
Operating System (OS):	Microsoft Windows Server 2012 R2
JVM Vendor:	Oracle Corporation
JVM Version:	1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version:	1.2.6

Measurement Devices

Power Analyzer pwr1
Hardware Vendor:	Yokogawa
Model:	WT210
Serial Number:	91K112851
Connectivity:	GPIB vi NI GPIB-USB-HS
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	Transcat Metrology
Calibration Label:	5-D0562-20-1
Date of Calibration:	18-Apr-2017
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	SUT Power Supply 2, and 5

Power Analyzer pwr2
Hardware Vendor:	Yokogawa
Model:	WT210
Serial Number:	91K208943
Connectivity:	GPIB vi NI GPIB-USB-HS
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	Transcat Metrology
Calibration Label:	5-D0562-140-1
Date of Calibration:	25-Apr-2017
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	SUT Power Supplies 1, and 4

Power Analyzer pwr3
Hardware Vendor:	Yokogawa
Model:	WT210
Serial Number:	91GB47168
Connectivity:	GPIB vi NI GPIB-USB-HS
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	Transcat Metrology
Calibration Label:	5-D38YR-220-1
Date of Calibration:	21-Jun-2017
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	SUT Power Supplies 3, and 6

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main intake

Notes

None

Aggregate Electrical and Environmental Data

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	5,816	22.2
90%	5,269	22.1
80%	4,417	22.1
70%	3,803	22.1
60%	3,303	22.1
50%	2,884	22.2
40%	2,553	22.2
30%	2,263	22.1
20%	1,982	22.2
10%	1,689	22.2
Active Idle	901	22.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 1 wire	22.1	132

See the Power/Temperature Details Report for additional details.

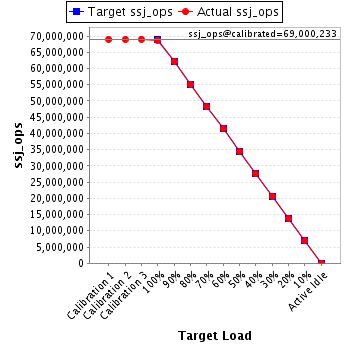

Aggregate Performance Data

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			69,015,403
Calibration 2			68,950,468
Calibration 3			69,049,998
ssj_ops@calibrated=69,000,233
100%	99.7%	69,000,233	68,782,048
90%	90.1%	62,100,210	62,142,573
80%	79.9%	55,200,186	55,147,007
70%	70.0%	48,300,163	48,270,941
60%	60.0%	41,400,140	41,397,135
50%	50.0%	34,500,117	34,483,600
40%	40.0%	27,600,093	27,582,779
30%	30.0%	20,700,070	20,699,871
20%	20.0%	13,800,047	13,793,172
10%	10.0%	6,900,023	6,902,852
Active Idle		0	0

See the Aggregate Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
