Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,872 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 6, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Apr 25, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 5,798 22.2
Calibration 2 5,811 22.3
Calibration 3 5,829 22.2
100% 5,816 22.2
90% 5,269 22.1
80% 4,417 22.1
70% 3,803 22.1
60% 3,303 22.1
50% 2,884 22.2
40% 2,553 22.2
30% 2,263 22.1
20% 1,982 22.2
10% 1,689 22.2
Active Idle 901 22.2

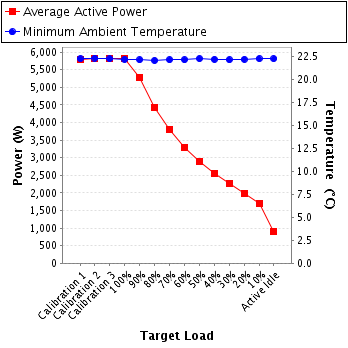

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K112851
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-D0562-20-1
Date of Calibration: 18-Apr-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2, and 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K208943
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-D0562-140-1
Date of Calibration: 25-Apr-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1, and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-D38YR-220-1
Date of Calibration: 21-Jun-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 9.32 10.0 0.996 1,947 0.3%
Calibration 2 210 300.0 9.36 10.0 0.996 1,956 0.3%
Calibration 3 210 300.0 9.37 10.0 0.996 1,958 0.3%
100% 210 300.0 9.35 10.0 0.996 1,958 0.3%
90% 211 300.0 8.40 10.0 0.995 1,761 0.3%
80% 211 300.0 7.04 10.0 0.993 1,474 0.4%
70% 211 300.0 6.05 10.0 0.991 1,264 0.4%
60% 211 300.0 5.24 5.0 0.988 1,092 0.3%
50% 211 300.0 4.54 5.0 0.985 944 0.3%
40% 211 300.0 4.05 5.0 0.980 838 0.4%
30% 211 300.0 3.60 5.0 0.975 741 0.4%
20% 211 300.0 3.17 5.0 0.969 649 0.4%
10% 211 300.0 2.72 5.0 0.957 549 0.5%
Active Idle 211 300.0 1.57 2.0 0.862 286 0.5%

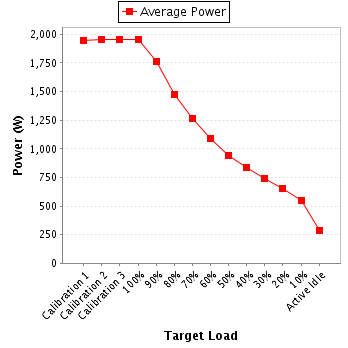

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 9.32 10.0 0.995 1,973 0.3%
Calibration 2 213 300.0 9.30 10.0 0.995 1,970 0.3%
Calibration 3 213 300.0 9.33 10.0 0.995 1,977 0.3%
100% 213 300.0 9.30 10.0 0.995 1,973 0.3%
90% 214 300.0 8.44 10.0 0.995 1,791 0.3%
80% 214 300.0 7.01 10.0 0.992 1,486 0.4%
70% 214 300.0 5.98 10.0 0.989 1,265 0.4%
60% 214 300.0 5.20 5.0 0.986 1,096 0.3%
50% 214 300.0 4.58 5.0 0.982 962 0.3%
40% 214 300.0 4.09 5.0 0.977 856 0.4%
30% 214 300.0 3.67 5.0 0.972 763 0.4%
20% 214 300.0 3.21 5.0 0.964 662 0.4%
10% 214 300.0 2.77 5.0 0.951 564 0.5%
Active Idle 214 300.0 1.70 2.0 0.856 311 0.5%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 8.90 10.0 0.996 1,879 0.3%
Calibration 2 212 300.0 8.92 10.0 0.996 1,885 0.3%
Calibration 3 213 300.0 8.95 10.0 0.996 1,894 0.3%
100% 213 300.0 8.90 10.0 0.996 1,886 0.3%
90% 213 300.0 8.09 10.0 0.995 1,717 0.3%
80% 213 300.0 6.87 10.0 0.993 1,457 0.4%
70% 214 300.0 6.02 10.0 0.991 1,274 0.4%
60% 214 300.0 5.28 5.0 0.988 1,115 0.3%
50% 214 300.0 4.65 5.0 0.985 978 0.3%
40% 214 300.0 4.09 5.0 0.980 859 0.4%
30% 214 300.0 3.64 5.0 0.975 759 0.4%
20% 214 300.0 3.23 5.0 0.968 670 0.4%
10% 214 300.0 2.81 5.0 0.958 576 0.5%
Active Idle 214 300.0 1.65 2.0 0.857 303 0.5%

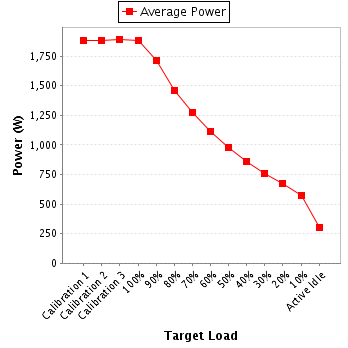

Power details for pwr3
