Huawei Technologies Co., Ltd FusionServer XH321 V3 ssj_ops@100% = 15,118,177
ssj_ops@100% per Host = 3,779,544
ssj_ops@100% per JVM = 944,886
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 4, 2017
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Mar 29, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     15,204,793
Calibration 2     15,116,577
Calibration 3     15,139,545
ssj_ops@calibrated=15,128,061
100% 99.9% 15,128,061 15,118,177
90% 90.7% 13,615,255 13,719,313
80% 80.0% 12,102,449 12,101,725
70% 70.0% 10,589,643 10,582,490
60% 60.0% 9,076,837 9,073,073
50% 50.0% 7,564,030 7,556,630
40% 40.0% 6,051,224 6,053,057
30% 30.0% 4,538,418 4,545,054
20% 20.0% 3,025,612 3,024,488
10% 10.0% 1,512,806 1,513,554
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 176 352 256 4 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Huawei FusionServer X6000
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1500
Power Supply Details: Huawei P/N 02131268
Network Switch: Huawei Quidway S5348TP-SI
Network Switch Details: 48-PORT Quidway S5348TP-SI
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: Network switch not measured for Power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Huawei Technologies Co., Ltd
Model: FusionServer XH321 V3
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v4
CPU Characteristics: 22-Core, 2.2GHz, 55MB L3 Cache (Intel Turbo Boost Technology up to 3.6GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx8 PC4-2400T ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM100, DIMM110, DIMM120, and DIMM130 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB SATADOM Huawei P/N 06010307
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel i350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 3.56
Management Firmware Version: 2.33
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
.
Host Instance Summary
Host ssj_ops@100%
WIN-24O37IJPFC8 3,794,820
WIN-FC3EMG3J9U7 3,790,204
WIN-JVOQP53KR1M 3,772,855
WIN-RVAD0LT238O 3,760,298
ssj_ops@100% 15,118,177
ssj_ops@100% per Host 3,779,544
ssj_ops@100% per JVM 944,886
Graph of per-host results

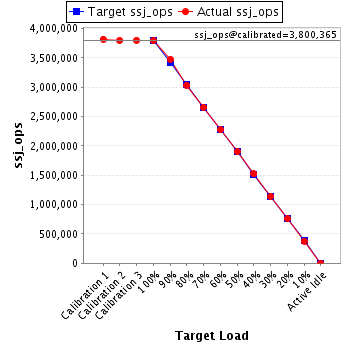

Host 'WIN-24O37IJPFC8' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,818,969
Calibration 2     3,797,614
Calibration 3     3,803,115
ssj_ops@calibrated=3,800,365
100% 99.9% 3,800,365 3,794,820
90% 91.5% 3,420,328 3,477,145
80% 79.9% 3,040,292 3,036,142
70% 70.0% 2,660,255 2,659,835
60% 59.9% 2,280,219 2,276,082
50% 50.0% 1,900,182 1,899,658
40% 40.1% 1,520,146 1,522,108
30% 30.0% 1,140,109 1,139,536
20% 20.0% 760,073 760,029
10% 10.0% 380,036 379,327
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-FC3EMG3J9U7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,815,695
Calibration 2     3,787,221
Calibration 3     3,794,467
ssj_ops@calibrated=3,790,844
100% 100.0% 3,790,844 3,790,204
90% 90.9% 3,411,760 3,447,647
80% 80.0% 3,032,675 3,033,380
70% 70.0% 2,653,591 2,654,284
60% 60.0% 2,274,507 2,275,378
50% 50.0% 1,895,422 1,895,081
40% 40.1% 1,516,338 1,519,227
30% 30.0% 1,137,253 1,138,504
20% 20.0% 758,169 758,878
10% 9.9% 379,084 375,314
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

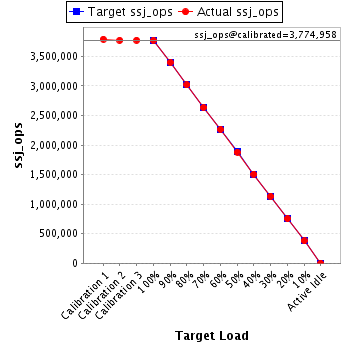

Host 'WIN-JVOQP53KR1M' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,791,984
Calibration 2     3,773,319
Calibration 3     3,776,598
ssj_ops@calibrated=3,774,958
100% 99.9% 3,774,958 3,772,855
90% 90.1% 3,397,463 3,401,558
80% 80.0% 3,019,967 3,018,459
70% 69.8% 2,642,471 2,634,509
60% 60.1% 2,264,975 2,268,004
50% 49.9% 1,887,479 1,882,071
40% 40.0% 1,509,983 1,508,341
30% 30.1% 1,132,488 1,135,669
20% 20.0% 754,992 753,542
10% 10.0% 377,496 378,829
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-RVAD0LT238O' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,778,145
Calibration 2     3,758,422
Calibration 3     3,765,365
ssj_ops@calibrated=3,761,893
100% 100.0% 3,761,893 3,760,298
90% 90.2% 3,385,704 3,392,962
80% 80.1% 3,009,515 3,013,744
70% 70.0% 2,633,325 2,633,862
60% 59.9% 2,257,136 2,253,609
50% 50.0% 1,880,947 1,879,820
40% 40.0% 1,504,757 1,503,381
30% 30.1% 1,128,568 1,131,344
20% 20.0% 752,379 752,039
10% 10.1% 376,189 380,085
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
