Huawei Technologies Co., Ltd FusionServer XH321 V3 ssj_ops@100% = 3,760,298
ssj_ops@100% per JVM = 940,075
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 4, 2017
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Mar 29, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,778,145
Calibration 2     3,758,422
Calibration 3     3,765,365
ssj_ops@calibrated=3,761,893
100% 100.0% 3,761,893 3,760,298
90% 90.2% 3,385,704 3,392,962
80% 80.1% 3,009,515 3,013,744
70% 70.0% 2,633,325 2,633,862
60% 59.9% 2,257,136 2,253,609
50% 50.0% 1,880,947 1,879,820
40% 40.0% 1,504,757 1,503,381
30% 30.1% 1,128,568 1,131,344
20% 20.0% 752,379 752,039
10% 10.1% 376,189 380,085
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: FusionServer XH321 V3
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v4
CPU Characteristics: 22-Core, 2.2GHz, 55MB L3 Cache (Intel Turbo Boost Technology up to 3.6GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx8 PC4-2400T ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM100, DIMM110, DIMM120, and DIMM130 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB SATADOM Huawei P/N 06010307
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel i350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 3.56
Management Firmware Version: 2.33
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-RVAD0LT238O.001 947,792
WIN-RVAD0LT238O.002 944,208
WIN-RVAD0LT238O.003 940,067
WIN-RVAD0LT238O.004 928,232
ssj_ops@100% 3,760,298
ssj_ops@100% per JVM 940,075

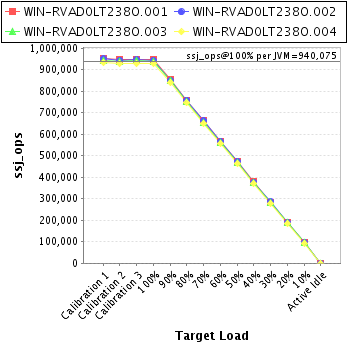

Graph of per-instance results
JVM 'WIN-RVAD0LT238O.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     953,221
Calibration 2     947,598
Calibration 3     948,552
ssj_ops@calibrated=948,075
100% 100.0% 948,075 947,792
90% 90.3% 853,268 856,145
80% 80.0% 758,460 758,043
70% 70.1% 663,653 664,663
60% 59.9% 568,845 568,034
50% 50.0% 474,038 473,693
40% 40.0% 379,230 379,408
30% 30.0% 284,423 284,418
20% 20.1% 189,615 190,253
10% 10.1% 94,808 95,623
Active Idle   0 0

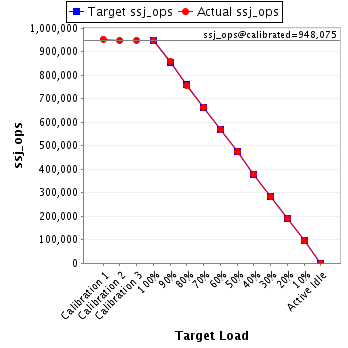

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RVAD0LT238O.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     949,459
Calibration 2     944,277
Calibration 3     945,800
ssj_ops@calibrated=945,038
100% 99.9% 945,038 944,208
90% 89.9% 850,534 849,435
80% 80.3% 756,031 758,498
70% 70.2% 661,527 663,251
60% 59.8% 567,023 565,303
50% 50.0% 472,519 472,806
40% 39.9% 378,015 377,541
30% 30.2% 283,511 285,003
20% 19.8% 189,008 187,176
10% 10.0% 94,504 94,503
Active Idle   0 0

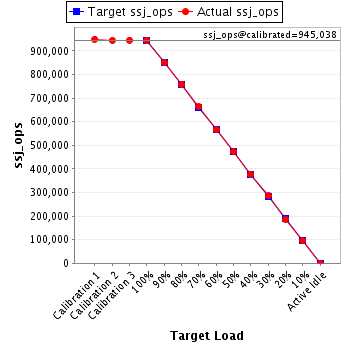

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RVAD0LT238O.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     942,482
Calibration 2     938,244
Calibration 3     941,094
ssj_ops@calibrated=939,669
100% 100.0% 939,669 940,067
90% 90.2% 845,702 847,684
80% 80.0% 751,735 751,811
70% 69.9% 657,768 656,390
60% 59.9% 563,801 563,209
50% 49.9% 469,834 469,127
40% 39.9% 375,868 375,353
30% 30.1% 281,901 282,733
20% 20.1% 187,934 188,775
10% 10.2% 93,967 96,174
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RVAD0LT238O.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     932,983
Calibration 2     928,303
Calibration 3     929,919
ssj_ops@calibrated=929,111
100% 99.9% 929,111 928,232
90% 90.4% 836,200 839,698
80% 80.2% 743,289 745,392
70% 69.9% 650,378 649,558
60% 60.0% 557,467 557,062
50% 50.0% 464,556 464,194
40% 39.9% 371,644 371,079
30% 30.0% 278,733 279,190
20% 20.0% 185,822 185,836
10% 10.1% 92,911 93,785
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
