SPECpower_ssj2008

Fujitsu FUJITSU Server PRIMERGY TX2560 M2			SPECpower_ssj2008 = 12,065 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Paderborn, NRW, Germany	Test Date:	Mar 6, 2016
Hardware Availability:	Apr-2016	Software Availability:	Jan-2015	Publication:	Apr 15, 2016
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY TX2560 M2
Form Factor:	Tower
CPU Name:	Intel Xeon E5-2699 v4
CPU Characteristics:	22-Core, 2.20GHz, 55MB L3 Cache
CPU Frequency (MHz):	2200
CPU(s) Enabled:	44 cores, 2 chips, 22 cores/chip
Hardware Threads:	88 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	55 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	64
# and size of DIMM:	8 x 8192 MB
Memory Details:	8 GB DDR4, registered, ECC, 2400 MHz, PC4-2400R, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	Fujitsu Technology Solutions S26113-F615-E10
Disk Drive:	1 x SSD SATA 6G 64GB DOM N H-P, S26361-F5522-E64
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x PLAN AP 1x1Gbit Cu Intel I210-T1 (Copper), S26361-F3852-E1
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
OS Version:	Version 6.3.9600 Build 9600
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn11g -Xms13g -Xmx13g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=22 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity:	start /NODE [0,1,2,3] /AFFINTY 0x3FFFFF
JVM Instances:	4
JVM Initial Heap (MB):	13000
JVM Maximum Heap (MB):	13000
JVM Address Bits:	64
Boot Firmware Version:	R1.5.0
Management Firmware Version:	8.13F
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Line Prefetch = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "ASPM Support = L1 Only" in BIOS.
Set "DMI Control = Gen1" in BIOS.
Set "Onboard USB Controllers = Disabled" in BIOS.
Set "Power Technology = Custom" in BIOS.
Set "Turbo Mode = Disabled" in BIOS.
Set "Autonomous C-state Support = Enabled" in BIOS.
Set "Uncore Frequency Override = Nominal" in BIOS.
Set "QPI Link Frequency Select = 6.4 GT/s" in BIOS.
Set "Override OS Energy Performance = Enabled" in BIOS.
Set "Energy Performance = Energy Efficient" in BIOS.
Set "DDR Performance = Energy optimized" in BIOS. (effective memory frequency = 1866 MHz)
Set "Intel Virtualization Technology = Disabled" in BIOS.
Set "COD Enable = Enabled" in BIOS.

None

Set "Turn off hard disk after = 1 Minute" in OS.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
Each JVM instance was affinitized to 22 logical processors.

Software
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise SP1
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.25-b02, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	ZES Zimmer Electronic Systems GmbH
Model:	LMG95
Serial Number:	11210802
Connectivity:	RS-232
Input Connection:	Default (20A)
Metrology Institute:	PTB (Physikalisch Technische Bundesanstalt)
Accredited by:	Atlas Copco Tools Central Europe GmbH
Calibration Label:	W15113632
Date of Calibration:	30-Nov-2015
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.0-efc0c004-20160120
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

SPECpower_ssj.props input.load_level.number_warehouses set to 88 due to a known inconsistency in processor reporting with this Java version.

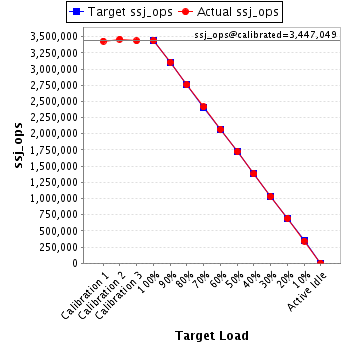

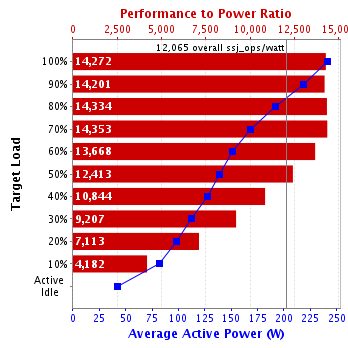

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	241	20.6
90%	219	20.7
80%	192	21.2
70%	168	21.8
60%	151	21.3
50%	139	20.7
40%	127	20.7
30%	112	21.2
20%	97.7	21.7
10%	82.2	21.4
Active Idle	41.8	20.7

Line Standard	Minimum Temperature (°C)	Elevation (m)
230V / 50 Hz / 1 phase / 2 wires	20.6	117

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
