Fujitsu FUJITSU Server PRIMERGY TX2560 M2 SPECpower_ssj2008 = 12,065 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 6, 2016
Hardware Availability: Apr-2016 Software Availability: Jan-2015 Publication: Apr 15, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 244 21.2
Calibration 2 245 21.8
Calibration 3 241 21.2
100% 241 20.6
90% 219 20.7
80% 192 21.2
70% 168 21.8
60% 151 21.3
50% 139 20.7
40% 127 20.7
30% 112 21.2
20% 97.7 21.7
10% 82.2 21.4
Active Idle 41.8 20.7

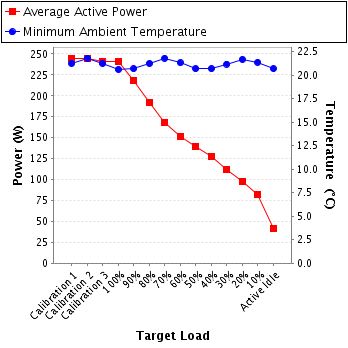

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W15113632
Date of Calibration: 30-Nov-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 1.07 1.2 0.988 244 0.1%
Calibration 2 230 250.0 1.08 1.2 0.988 245 0.1%
Calibration 3 230 250.0 1.06 1.2 0.988 241 0.1%
100% 230 250.0 1.06 1.2 0.988 241 0.1%
90% 231 250.0 0.963 1.2 0.986 219 0.1%
80% 231 250.0 0.846 1.2 0.986 192 0.1%
70% 231 250.0 0.743 1.2 0.981 168 0.1%
60% 231 250.0 0.672 1.2 0.977 151 0.1%
50% 231 250.0 0.619 1.2 0.973 139 0.1%
40% 231 250.0 0.570 0.6 0.967 127 0.1%
30% 231 250.0 0.507 0.6 0.958 112 0.1%
20% 231 250.0 0.446 0.6 0.949 97.7 0.1%
10% 231 250.0 0.383 0.6 0.929 82.2 0.1%
Active Idle 231 250.0 0.243 0.6 0.746 41.8 0.2%

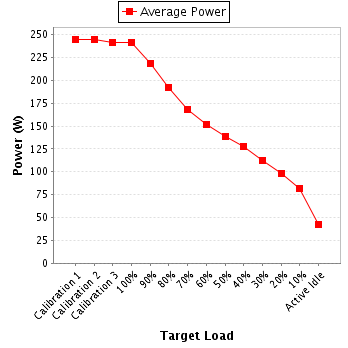

Power details for pwr1
