Fujitsu FUJITSU Server PRIMERGY TX1330 M2 SPECpower_ssj2008 = 8,187 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Dec 12, 2015
Hardware Availability: Feb-2016 Software Availability: Jan-2015 Publication: Jan 7, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.9% 484,122 47.2 10,267
90% 89.9% 435,666 43.9 9,929
80% 79.8% 386,466 39.2 9,856
70% 69.9% 338,638 34.7 9,753
60% 59.8% 289,910 30.5 9,513
50% 50.0% 242,418 27.0 8,994
40% 39.5% 191,117 24.2 7,912
30% 30.0% 145,498 22.3 6,516
20% 20.0% 96,975 20.6 4,718
10% 10.0% 48,224 19.3 2,503
Active Idle 0 16.1 0
∑ssj_ops / ∑power = 8,187

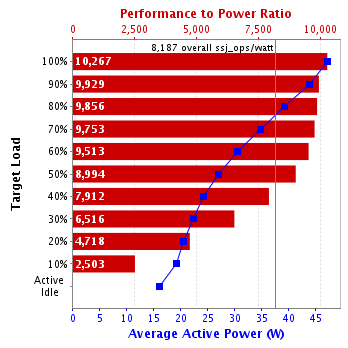

Graph of results
System Under Test
Set: 'TX1330 M2'
Set Identifier: TX1330 M2
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY TX1330 M2
Form Factor: Tower
CPU Name: Intel Xeon E3-1240L v5
CPU Characteristics: 4-Core, 2.10GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.20 GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8 GB DDR4, unbuffered, ECC, 2133 MHz, PC4-2133U, DIMM, 2Rx8; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Standard power supply part of base unit S26361-K1552-V101
Disk Drive: 1 x SSD SATA 6G 64GB DOM N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn10g -Xms12g -Xmx12g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: None
JVM Instances: 1
JVM Initial Heap (MB): 12000
JVM Maximum Heap (MB): 12000
JVM Address Bits: 64
Boot Firmware Version: R1.6.0
Management Firmware Version: 8.10F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX200 S6
CPU Description: Intel Xeon X5680
Memory amount (GB): 48
Software
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.25-b02, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W15113632
Date of Calibration: 30-Nov-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.1-6ff11330-20150212
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 47.2 22.6
90% 43.9 22.8
80% 39.2 21.9
70% 34.7 21.5
60% 30.5 21.6
50% 27.0 22.1
40% 24.2 22.4
30% 22.3 22.7
20% 20.6 22.9
10% 19.3 21.9
Active Idle 16.1 21.5
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 21.5 117
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     481,704
Calibration 2     485,248
Calibration 3     483,587
ssj_ops@calibrated=484,417
100% 99.9% 484,417 484,122
90% 89.9% 435,976 435,666
80% 79.8% 387,534 386,466
70% 69.9% 339,092 338,638
60% 59.8% 290,650 289,910
50% 50.0% 242,209 242,418
40% 39.5% 193,767 191,117
30% 30.0% 145,325 145,498
20% 20.0% 96,883 96,975
10% 10.0% 48,442 48,224
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
