Fujitsu FUJITSU Server PRIMERGY TX1330 M2 SPECpower_ssj2008 = 8,187 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Dec 12, 2015
Hardware Availability: Feb-2016 Software Availability: Jan-2015 Publication: Jan 7, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 47.4 21.4
Calibration 2 47.2 21.8
Calibration 3 47.2 22.2
100% 47.2 22.6
90% 43.9 22.8
80% 39.2 21.9
70% 34.7 21.5
60% 30.5 21.6
50% 27.0 22.1
40% 24.2 22.4
30% 22.3 22.7
20% 20.6 22.9
10% 19.3 21.9
Active Idle 16.1 21.5

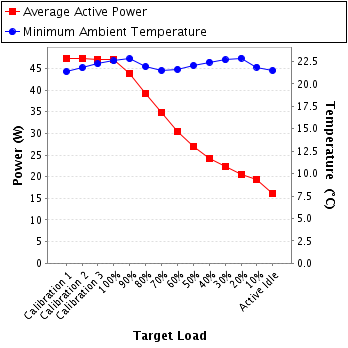

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W15113632
Date of Calibration: 30-Nov-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.1-6ff11330-20150212
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 250.0 0.272 0.6 0.754 47.4 0.2%
Calibration 2 231 250.0 0.272 0.6 0.753 47.2 0.2%
Calibration 3 231 250.0 0.272 0.6 0.753 47.2 0.2%
100% 231 250.0 0.271 0.6 0.753 47.2 0.2%
90% 231 250.0 0.262 0.6 0.723 43.9 0.2%
80% 231 250.0 0.247 0.6 0.684 39.2 0.2%
70% 231 250.0 0.232 0.6 0.644 34.7 0.2%
60% 231 250.0 0.217 0.6 0.606 30.5 0.3%
50% 231 250.0 0.205 0.6 0.570 27.0 0.3%
40% 231 250.0 0.198 0.6 0.528 24.2 0.3%
30% 231 250.0 0.197 0.6 0.492 22.3 0.4%
20% 231 250.0 0.194 0.6 0.459 20.6 0.4%
10% 231 250.0 0.191 0.6 0.436 19.3 0.4%
Active Idle 231 250.0 0.181 0.6 0.385 16.1 0.5%

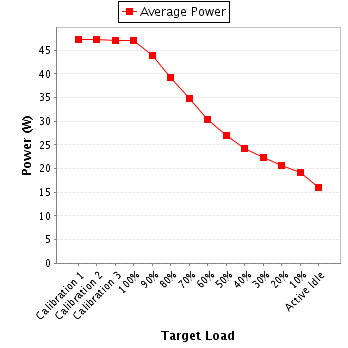

Power details for pwr1
