Dell Inc. PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz) SPECpower_ssj2008 = 9,472 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jun 3, 2015
Hardware Availability: Jun-2015 Software Availability: Jun-2013 Publication: Jul 28, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.1% 12,942,825 1,229 10,533
90% 90.9% 11,760,730 1,071 10,978
80% 79.9% 10,336,027 924 11,189
70% 69.9% 9,034,392 802 11,267
60% 60.0% 7,754,374 705 10,993
50% 50.0% 6,464,040 647 9,994
40% 40.0% 5,175,304 589 8,785
30% 29.9% 3,871,327 522 7,422
20% 19.9% 2,579,996 449 5,749
10% 10.0% 1,294,255 371 3,489
Active Idle 0 210 0
∑ssj_ops / ∑power = 9,472
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 144 288 256 4 144
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Dell PowerEdge C6000
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1600
Power Supply Details: 1600W PSU Dell P/N 4M690
Network Switch: Dell Force10 S4810
Network Switch Details: 48 Port 10GbE Ethernet Switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch not measured for Power
Set: 'sut'
Set Identifier: sut
Set Description: Dell PE C6320
# of Identical Nodes: 4
Comment: N/A
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8196 MB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; slots A1-4, B1-4 populated Dell P/N H8PGN
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 160GB SATA SSD Dell P/N PX9CC
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port 10GbE Intel 82559ES Integrated Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled,AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: /NODE [0,1,2,3] /AFFINITY[0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.0.1
Management Firmware Version: iDRAC 2.05.05.05
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge 860
CPU Description: Intel Xeon 3050
Memory amount (GB): 8
Software
Operating System (OS): Windows 2003 Server Enterprise Edition 64-bit
JVM Vendor: Oracle Corporation
JVM Version: Java version 1.7.0_75 Java(TM) SE Runtime Environment (build 1.7.0_75-b13) Java HotSpot(TM) 64-Bit Server VM (build 24.75-b04, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91H648897
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 6930824
Date of Calibration: 07-May-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to SUT Power Supply 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.3.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5mm in front of SUT main airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 1,229 21.8
90% 1,071 21.7
80% 924 21.7
70% 802 21.6
60% 705 21.4
50% 647 21.4
40% 589 21.4
30% 522 21.4
20% 449 21.3
10% 371 21.3
Active Idle 210 21.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.2 255
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,077,738
Calibration 2     12,927,921
Calibration 3     12,938,157
ssj_ops@calibrated=12,933,039
100% 100.1% 12,933,039 12,942,825
90% 90.9% 11,639,735 11,760,730
80% 79.9% 10,346,431 10,336,027
70% 69.9% 9,053,127 9,034,392
60% 60.0% 7,759,823 7,754,374
50% 50.0% 6,466,520 6,464,040
40% 40.0% 5,173,216 5,175,304
30% 29.9% 3,879,912 3,871,327
20% 19.9% 2,586,608 2,579,996
10% 10.0% 1,293,304 1,294,255
Active Idle   0 0

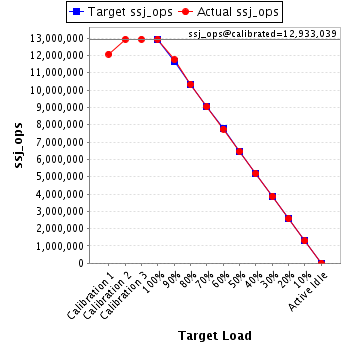

Graph of results
See the Aggregate Performance Report for additional details.
