SPECpower_ssj2008
Aggregate Performance Report
Copyright © 2007-2015 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz) | ssj_ops@100% = 12,942,825 ssj_ops@100% per Host = 3,235,706 ssj_ops@100% per JVM = 89,881 |
||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Multi Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jun 3, 2015 |
| Hardware Availability: | Jun-2015 | Software Availability: | Jun-2013 | Publication: | Jul 28, 2015 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 12,077,738 | ||
| Calibration 2 | 12,927,921 | ||
| Calibration 3 | 12,938,157 | ||
| ssj_ops@calibrated=12,933,039 | |||
| 100% | 100.1% | 12,933,039 | 12,942,825 |
| 90% | 90.9% | 11,639,735 | 11,760,730 |
| 80% | 79.9% | 10,346,431 | 10,336,027 |
| 70% | 69.9% | 9,053,127 | 9,034,392 |
| 60% | 60.0% | 7,759,823 | 7,754,374 |
| 50% | 50.0% | 6,466,520 | 6,464,040 |
| 40% | 40.0% | 5,173,216 | 5,175,304 |
| 30% | 29.9% | 3,879,912 | 3,871,327 |
| 20% | 19.9% | 2,586,608 | 2,579,996 |
| 10% | 10.0% | 1,293,304 | 1,294,255 |
| Active Idle | 0 | 0 | |
| # of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
|---|---|---|---|---|---|---|
| 4 | 8 | 144 | 288 | 256 | 4 | 144 |
| Set Identifier: | sut |
| Set Description: | Dell PE C6320 |
| # of Identical Nodes: | 4 |
| Comment: | N/A |
| Hardware per Node | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz) |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon E5-2699 v3 2.30 GHz |
| CPU Characteristics: | 18 core, 2.30 GHz, 45 MB L3 Cache |
| CPU Frequency (MHz): | 2300 |
| CPU(s) Enabled: | 36 cores, 2 chips, 18 cores/chip |
| Hardware Threads: | 72 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 45 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 64 |
| # and size of DIMM: | 8 x 8196 MB |
| Memory Details: | 8GB 2Rx8 PC4-2133P ECC; slots A1-4, B1-4 populated Dell P/N H8PGN |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | N/A |
| Disk Drive: | 1 x 160GB SATA SSD Dell P/N PX9CC |
| Disk Controller: | Integrated SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port 10GbE Intel 82559ES Integrated Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 10000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software per Node | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| OS Version: | Version 6.1.7601 Service Pack 1 Build 7601 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled,AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon |
| JVM Affinity: | /NODE [0,1,2,3] /AFFINITY[0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000] |
| JVM Instances: | 36 |
| JVM Initial Heap (MB): | 975 |
| JVM Maximum Heap (MB): | 975 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.0.1 |
| Management Firmware Version: | iDRAC 2.05.05.05 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206) |

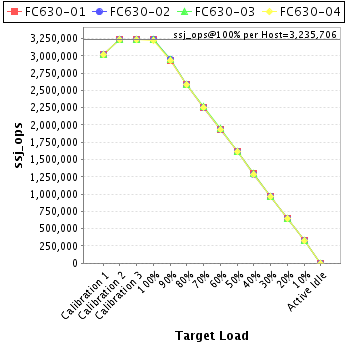

| Host | ssj_ops@100% |
|---|---|
| FC630-01 | 3,235,399 |
| FC630-02 | 3,238,165 |
| FC630-03 | 3,240,865 |
| FC630-04 | 3,228,395 |
| ssj_ops@100% | 12,942,825 |
| ssj_ops@100% per Host | 3,235,706 |
| ssj_ops@100% per JVM | 89,881 |

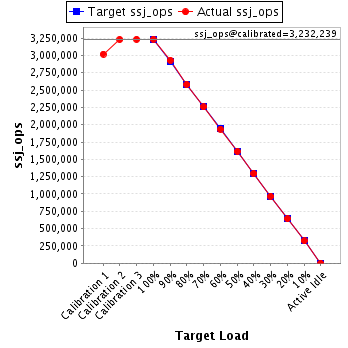

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 3,021,056 | ||
| Calibration 2 | 3,229,966 | ||
| Calibration 3 | 3,234,512 | ||
| ssj_ops@calibrated=3,232,239 | |||
| 100% | 100.1% | 3,232,239 | 3,235,399 |
| 90% | 90.7% | 2,909,015 | 2,931,087 |
| 80% | 79.8% | 2,585,791 | 2,580,422 |
| 70% | 69.8% | 2,262,567 | 2,256,731 |
| 60% | 60.0% | 1,939,343 | 1,938,022 |
| 50% | 50.0% | 1,616,119 | 1,616,191 |
| 40% | 40.0% | 1,292,896 | 1,293,768 |
| 30% | 30.0% | 969,672 | 968,683 |
| 20% | 19.9% | 646,448 | 641,661 |
| 10% | 10.0% | 323,224 | 323,722 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 3,023,139 | ||
| Calibration 2 | 3,234,060 | ||
| Calibration 3 | 3,236,456 | ||
| ssj_ops@calibrated=3,235,258 | |||
| 100% | 100.1% | 3,235,258 | 3,238,165 |
| 90% | 91.2% | 2,911,732 | 2,952,007 |
| 80% | 80.0% | 2,588,206 | 2,587,122 |
| 70% | 69.8% | 2,264,681 | 2,258,458 |
| 60% | 60.0% | 1,941,155 | 1,940,095 |
| 50% | 49.9% | 1,617,629 | 1,615,681 |
| 40% | 39.9% | 1,294,103 | 1,290,530 |
| 30% | 29.9% | 970,577 | 968,379 |
| 20% | 19.9% | 647,052 | 644,839 |
| 10% | 10.0% | 323,526 | 324,197 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 3,018,438 | ||
| Calibration 2 | 3,234,459 | ||
| Calibration 3 | 3,238,243 | ||
| ssj_ops@calibrated=3,236,351 | |||
| 100% | 100.1% | 3,236,351 | 3,240,865 |
| 90% | 90.9% | 2,912,716 | 2,941,318 |
| 80% | 79.9% | 2,589,081 | 2,587,172 |
| 70% | 70.0% | 2,265,446 | 2,266,195 |
| 60% | 60.0% | 1,941,811 | 1,942,882 |
| 50% | 50.0% | 1,618,176 | 1,619,527 |
| 40% | 40.2% | 1,294,540 | 1,300,137 |
| 30% | 30.0% | 970,905 | 969,851 |
| 20% | 19.9% | 647,270 | 645,505 |
| 10% | 10.0% | 323,635 | 323,310 |
| Active Idle | 0 | 0 | |

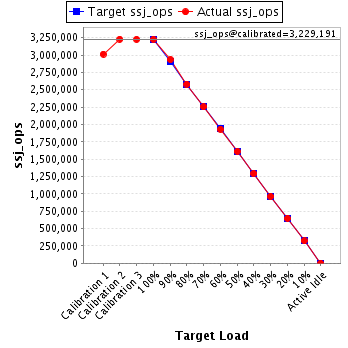

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 3,015,106 | ||
| Calibration 2 | 3,229,437 | ||
| Calibration 3 | 3,228,945 | ||
| ssj_ops@calibrated=3,229,191 | |||
| 100% | 100.0% | 3,229,191 | 3,228,395 |
| 90% | 90.9% | 2,906,272 | 2,936,318 |
| 80% | 79.9% | 2,583,353 | 2,581,311 |
| 70% | 69.8% | 2,260,434 | 2,253,008 |
| 60% | 59.9% | 1,937,515 | 1,933,376 |
| 50% | 49.9% | 1,614,596 | 1,612,641 |
| 40% | 40.0% | 1,291,676 | 1,290,870 |
| 30% | 29.9% | 968,757 | 964,414 |
| 20% | 20.1% | 645,838 | 647,991 |
| 10% | 10.0% | 322,919 | 323,026 |
| Active Idle | 0 | 0 | |
