Dell Inc. PowerEdge R730 (Intel Xeon E5-2699 v3 2.30 GHz) SPECpower_ssj2008 = 10,206 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 18, 2015
Hardware Availability: Apr-2015 Software Availability: Jun-2013 Publication: Feb 18, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.2% 3,253,446 272 11,952
90% 90.9% 2,953,355 243 12,133
80% 80.0% 2,598,913 215 12,065
70% 69.9% 2,272,183 191 11,919
60% 60.0% 1,949,045 171 11,413
50% 50.1% 1,626,010 156 10,453
40% 39.9% 1,297,118 141 9,225
30% 30.0% 974,218 124 7,854
20% 20.1% 651,757 107 6,115
10% 10.0% 324,007 87.8 3,691
Active Idle 0 46.9 0
∑ssj_ops / ∑power = 10,206

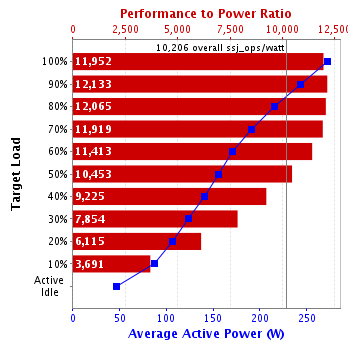

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R730.
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R730 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; Dell p/n H8PGN X02, Slots A1-4,B1-4 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell p/n KNHJV
Disk Drive: 1 x 60 GB SATA SSD, Dell p/n WC8RX
Disk Controller: Native chipset SATA
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver power plan in OS
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.2.3
Management Firmware Version: 2.10.10.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc
Model: PowerEdge R410
CPU Description: Intel Xeon E5160, 3.00 GHz
Memory amount (GB): 8.0
Software
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise Edition Service Pack 1
JVM Vendor: Oracle Corporation
JVM Version: Hotspot(TM) Client VM, version 1.6.0_32
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91HB22770
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO
Calibration Label: 6632150
Date of Calibration: 4-Aug-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 272 20.7
90% 243 20.9
80% 215 20.7
70% 191 20.8
60% 171 20.6
50% 156 20.7
40% 141 20.6
30% 124 20.6
20% 107 20.5
10% 87.8 20.5
Active Idle 46.9 20.4
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 20.4 255
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,064,312
Calibration 2     3,246,352
Calibration 3     3,250,479
ssj_ops@calibrated=3,248,415
100% 100.2% 3,248,415 3,253,446
90% 90.9% 2,923,574 2,953,355
80% 80.0% 2,598,732 2,598,913
70% 69.9% 2,273,891 2,272,183
60% 60.0% 1,949,049 1,949,045
50% 50.1% 1,624,208 1,626,010
40% 39.9% 1,299,366 1,297,118
30% 30.0% 974,525 974,218
20% 20.1% 649,683 651,757
10% 10.0% 324,842 324,007
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
