SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2015 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R730 (Intel Xeon E5-2699 v3 2.30 GHz) | SPECpower_ssj2008 = 10,206 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jan 18, 2015 |
| Hardware Availability: | Apr-2015 | Software Availability: | Jun-2013 | Publication: | Feb 18, 2015 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

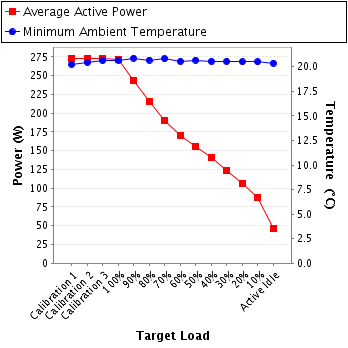

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 273 | 20.2 |
| Calibration 2 | 273 | 20.4 |
| Calibration 3 | 272 | 20.6 |
| 100% | 272 | 20.7 |
| 90% | 243 | 20.9 |
| 80% | 215 | 20.7 |
| 70% | 191 | 20.8 |
| 60% | 171 | 20.6 |
| 50% | 156 | 20.7 |
| 40% | 141 | 20.6 |
| 30% | 124 | 20.6 |
| 20% | 107 | 20.5 |
| 10% | 87.8 | 20.5 |
| Active Idle | 46.9 | 20.4 |

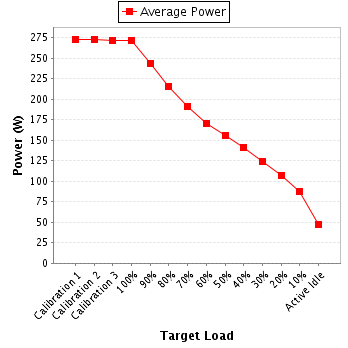

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91HB22770 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 6632150 |
| Date of Calibration: | 4-Aug-2014 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.7.0-538b1562-20140802 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 1.34 | 2.0 | 0.980 | 273 | 0.4% |
| Calibration 2 | 208 | 300.0 | 1.34 | 2.0 | 0.980 | 273 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.33 | 2.0 | 0.979 | 272 | 0.4% |
| 100% | 208 | 300.0 | 1.33 | 2.0 | 0.979 | 272 | 0.4% |
| 90% | 208 | 300.0 | 1.20 | 2.0 | 0.975 | 243 | 0.4% |
| 80% | 208 | 300.0 | 1.07 | 2.0 | 0.969 | 215 | 0.5% |
| 70% | 208 | 300.0 | 0.953 | 1.0 | 0.961 | 191 | 0.4% |
| 60% | 208 | 300.0 | 0.862 | 1.0 | 0.951 | 171 | 0.4% |
| 50% | 208 | 300.0 | 0.792 | 1.0 | 0.943 | 156 | 0.4% |
| 40% | 208 | 300.0 | 0.724 | 1.0 | 0.932 | 141 | 0.4% |
| 30% | 208 | 300.0 | 0.652 | 1.0 | 0.914 | 124 | 0.5% |
| 20% | 208 | 300.0 | 0.574 | 1.0 | 0.891 | 107 | 0.5% |
| 10% | 208 | 300.0 | 0.496 | 0.5 | 0.849 | 87.8 | 0.4% |
| Active Idle | 208 | 300.0 | 0.340 | 0.5 | 0.662 | 46.9 | 0.7% |
