SPECpower_ssj2008
Copyright © 2007-2014 Standard Performance Evaluation Corporation
| Quanta Computer Inc. QuantaGrid D51B-2U | SPECpower_ssj2008 = 10,238 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Nov 22, 2014 |
| Hardware Availability: | Sep-2014 | Software Availability: | Jun-2013 | Publication: | Dec 10, 2014 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

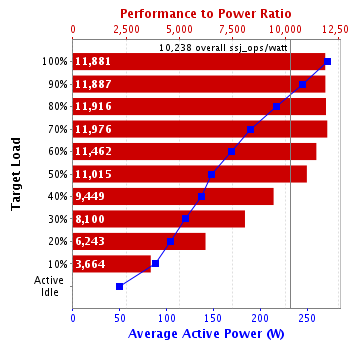

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.7% | 3,226,361 | 272 | 11,881 |
| 90% | 90.1% | 2,916,101 | 245 | 11,887 |
| 80% | 79.9% | 2,587,342 | 217 | 11,916 |
| 70% | 70.1% | 2,270,894 | 190 | 11,976 |
| 60% | 59.9% | 1,940,527 | 169 | 11,462 |
| 50% | 50.3% | 1,627,180 | 148 | 11,015 |
| 40% | 40.0% | 1,295,425 | 137 | 9,449 |
| 30% | 30.0% | 970,257 | 120 | 8,100 |
| 20% | 20.1% | 649,265 | 104 | 6,243 |
| 10% | 10.0% | 322,513 | 88.0 | 3,664 |
| Active Idle | 0 | 49.6 | 0 | |
| ∑ssj_ops / ∑power = | 10,238 | |||
| Set Identifier: | S2B |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Quanta Computer Inc. |
| Model: | QuantaGrid D51B-2U |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon E5-2699 v3 2.30 GHz |
| CPU Characteristics: | 18 core, 2.3GHz, 45MB L3 Cache |
| CPU Frequency (MHz): | 2300 |
| CPU(s) Enabled: | 36 cores, 2 chips, 18 cores/chip |
| Hardware Threads: | 72 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per chip |
| Tertiary Cache: | 45 MB I+D off chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 64 |
| # and size of DIMM: | 8 x 8192 MB |
| Memory Details: | 8GB 2Rx8 PC4-2133P-RE0-10; slots A0, B0, C0, D0, E0, F0, G0 ,H0 populated |
| Power Supply Quantity and Rating (W): | 1 x 500 |
| Power Supply Details: | Quanta P/N AF500B00028 |
| Disk Drive: | 1 x 960G SATA SSD,Quanta P/N ABSAK960000 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel Ethernet Controller I350, 2-port |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power plan in OS |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise with SP1 |
| OS Version: | Version 6.1.7601 Service Pack 1 Build 7601 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23) |
| JVM Affinity: | start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000] |
| JVM Instances: | 36 |
| JVM Initial Heap (MB): | 975 |
| JVM Maximum Heap (MB): | 975 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 3A08 |
| Management Firmware Version: | 3.07 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206) |
| Hardware | |
|---|---|
| Hardware Vendor: | Quanta Computer Inc. |
| Model: | A08 |
| CPU Description: | Intel Core(TM)2Duo CPU E7400, 2.80Ghz |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 R2 Datacenter 64-bit SP1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Hotspot(TM) Client VM, version 1.7.0_25 |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91H326073 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Tai Yi Electronics & Surveillance Co., Ltd. |
| Calibration Label: | Y1312180102 |
| Date of Calibration: | 19-Dec-2013 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.7.0-538b1562-20140802 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 272 | 20.6 |
| 90% | 245 | 20.6 |
| 80% | 217 | 20.7 |
| 70% | 190 | 20.7 |
| 60% | 169 | 20.8 |
| 50% | 148 | 20.8 |
| 40% | 137 | 20.8 |
| 30% | 120 | 20.8 |
| 20% | 104 | 20.8 |
| 10% | 88.0 | 20.7 |
| Active Idle | 49.6 | 20.7 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 20.6 | 250 |

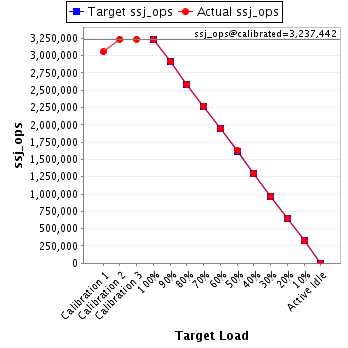

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 3,054,041 | ||
| Calibration 2 | 3,236,819 | ||
| Calibration 3 | 3,238,065 | ||
| ssj_ops@calibrated=3,237,442 | |||
| 100% | 99.7% | 3,237,442 | 3,226,361 |
| 90% | 90.1% | 2,913,698 | 2,916,101 |
| 80% | 79.9% | 2,589,954 | 2,587,342 |
| 70% | 70.1% | 2,266,209 | 2,270,894 |
| 60% | 59.9% | 1,942,465 | 1,940,527 |
| 50% | 50.3% | 1,618,721 | 1,627,180 |
| 40% | 40.0% | 1,294,977 | 1,295,425 |
| 30% | 30.0% | 971,233 | 970,257 |
| 20% | 20.1% | 647,488 | 649,265 |
| 10% | 10.0% | 323,744 | 322,513 |
| Active Idle | 0 | 0 | |
