Quanta Computer Inc. QuantaGrid D51B-2U ssj_ops@100% = 3,226,361
ssj_ops@100% per JVM = 89,621
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Nov 22, 2014
Hardware Availability: Sep-2014 Software Availability: Jun-2013 Publication: Dec 10, 2014
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,054,041
Calibration 2     3,236,819
Calibration 3     3,238,065
ssj_ops@calibrated=3,237,442
100% 99.7% 3,237,442 3,226,361
90% 90.1% 2,913,698 2,916,101
80% 79.9% 2,589,954 2,587,342
70% 70.1% 2,266,209 2,270,894
60% 59.9% 1,942,465 1,940,527
50% 50.3% 1,618,721 1,627,180
40% 40.0% 1,294,977 1,295,425
30% 30.0% 971,233 970,257
20% 20.1% 647,488 649,265
10% 10.0% 323,744 322,513
Active Idle   0 0
Graph of results
System Under Test
Set: 'S2B'
Set Identifier: S2B
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Quanta Computer Inc.
Model: QuantaGrid D51B-2U
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.3GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 45 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8GB 2Rx8 PC4-2133P-RE0-10; slots A0, B0, C0, D0, E0, F0, G0 ,H0 populated
Power Supply Quantity and Rating (W): 1 x 500
Power Supply Details: Quanta P/N AF500B00028
Disk Drive: 1 x 960G SATA SSD,Quanta P/N ABSAK960000
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Controller I350, 2-port
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise with SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23)
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 3A08
Management Firmware Version: 3.07
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-S5D1BAVP3PA.001 90,158
WIN-S5D1BAVP3PA.002 89,306
WIN-S5D1BAVP3PA.003 89,170
WIN-S5D1BAVP3PA.004 89,534
WIN-S5D1BAVP3PA.005 87,345
WIN-S5D1BAVP3PA.006 90,770
WIN-S5D1BAVP3PA.007 88,747
WIN-S5D1BAVP3PA.008 89,529
WIN-S5D1BAVP3PA.009 91,026
WIN-S5D1BAVP3PA.010 88,031
WIN-S5D1BAVP3PA.011 88,708
WIN-S5D1BAVP3PA.012 89,362
WIN-S5D1BAVP3PA.013 90,945
WIN-S5D1BAVP3PA.014 89,920
WIN-S5D1BAVP3PA.015 88,831
WIN-S5D1BAVP3PA.016 89,559
WIN-S5D1BAVP3PA.017 89,636
WIN-S5D1BAVP3PA.018 89,851
WIN-S5D1BAVP3PA.019 86,878
WIN-S5D1BAVP3PA.020 88,703
WIN-S5D1BAVP3PA.021 90,882
WIN-S5D1BAVP3PA.022 90,294
WIN-S5D1BAVP3PA.023 86,689
WIN-S5D1BAVP3PA.024 90,766
WIN-S5D1BAVP3PA.025 89,251
WIN-S5D1BAVP3PA.026 89,203
WIN-S5D1BAVP3PA.027 92,020
WIN-S5D1BAVP3PA.028 88,509
WIN-S5D1BAVP3PA.029 88,274
WIN-S5D1BAVP3PA.030 91,072
WIN-S5D1BAVP3PA.031 91,471
WIN-S5D1BAVP3PA.032 90,600
WIN-S5D1BAVP3PA.033 89,048
WIN-S5D1BAVP3PA.034 90,905
WIN-S5D1BAVP3PA.035 90,263
WIN-S5D1BAVP3PA.036 91,106
ssj_ops@100% 3,226,361
ssj_ops@100% per JVM 89,621

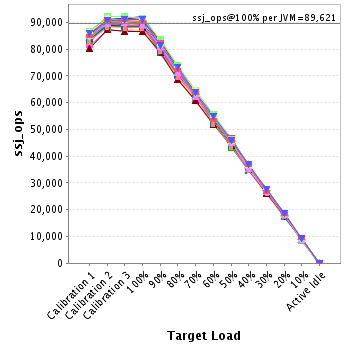

Graph of per-instance results
JVM 'WIN-S5D1BAVP3PA.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,850
Calibration 2     89,710
Calibration 3     90,154
ssj_ops@calibrated=89,932
100% 100.3% 89,932 90,158
90% 90.7% 80,939 81,532
80% 80.7% 71,946 72,605
70% 70.3% 62,953 63,213
60% 60.5% 53,959 54,447
50% 49.8% 44,966 44,798
40% 40.1% 35,973 36,061
30% 30.6% 26,980 27,497
20% 19.6% 17,986 17,663
10% 9.9% 8,993 8,862
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,705
Calibration 2     89,562
Calibration 3     89,613
ssj_ops@calibrated=89,587
100% 99.7% 89,587 89,306
90% 90.8% 80,629 81,304
80% 80.0% 71,670 71,653
70% 70.0% 62,711 62,669
60% 59.7% 53,752 53,467
50% 50.7% 44,794 45,419
40% 40.3% 35,835 36,134
30% 29.4% 26,876 26,306
20% 20.1% 17,917 17,999
10% 10.2% 8,959 9,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

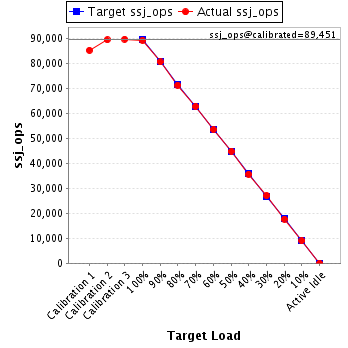

JVM 'WIN-S5D1BAVP3PA.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,150
Calibration 2     89,310
Calibration 3     89,592
ssj_ops@calibrated=89,451
100% 99.7% 89,451 89,170
90% 90.0% 80,506 80,489
80% 79.6% 71,561 71,206
70% 70.2% 62,616 62,780
60% 59.8% 53,671 53,498
50% 50.0% 44,726 44,763
40% 39.8% 35,780 35,634
30% 30.2% 26,835 27,028
20% 19.8% 17,890 17,686
10% 10.1% 8,945 8,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,416
Calibration 2     89,389
Calibration 3     90,235
ssj_ops@calibrated=89,812
100% 99.7% 89,812 89,534
90% 90.5% 80,831 81,310
80% 80.1% 71,850 71,946
70% 69.4% 62,869 62,289
60% 59.7% 53,887 53,619
50% 50.0% 44,906 44,888
40% 40.8% 35,925 36,652
30% 30.5% 26,944 27,349
20% 20.1% 17,962 18,068
10% 10.0% 8,981 8,990
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,222
Calibration 2     87,098
Calibration 3     87,029
ssj_ops@calibrated=87,064
100% 100.3% 87,064 87,345
90% 89.6% 78,357 78,014
80% 79.8% 69,651 69,519
70% 69.4% 60,945 60,387
60% 59.8% 52,238 52,052
50% 49.8% 43,532 43,377
40% 39.9% 34,825 34,702
30% 30.0% 26,119 26,082
20% 19.6% 17,413 17,056
10% 10.0% 8,706 8,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,891
Calibration 2     90,755
Calibration 3     91,313
ssj_ops@calibrated=91,034
100% 99.7% 91,034 90,770
90% 89.6% 81,931 81,574
80% 80.3% 72,827 73,057
70% 69.5% 63,724 63,228
60% 59.9% 54,620 54,484
50% 50.5% 45,517 45,983
40% 39.9% 36,414 36,327
30% 30.0% 27,310 27,329
20% 20.0% 18,207 18,237
10% 9.9% 9,103 8,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,201
Calibration 2     89,456
Calibration 3     89,788
ssj_ops@calibrated=89,622
100% 99.0% 89,622 88,747
90% 90.0% 80,659 80,657
80% 80.3% 71,697 71,994
70% 70.6% 62,735 63,264
60% 59.4% 53,773 53,241
50% 50.5% 44,811 45,255
40% 40.6% 35,849 36,355
30% 29.7% 26,886 26,590
20% 20.5% 17,924 18,366
10% 10.0% 8,962 8,966
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,369
Calibration 2     90,094
Calibration 3     90,598
ssj_ops@calibrated=90,346
100% 99.1% 90,346 89,529
90% 89.6% 81,311 80,988
80% 79.2% 72,277 71,589
70% 69.7% 63,242 63,001
60% 60.9% 54,208 55,012
50% 50.2% 45,173 45,341
40% 40.5% 36,138 36,610
30% 30.0% 27,104 27,098
20% 19.8% 18,069 17,866
10% 9.6% 9,035 8,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,487
Calibration 2     91,353
Calibration 3     91,404
ssj_ops@calibrated=91,378
100% 99.6% 91,378 91,026
90% 90.2% 82,240 82,390
80% 80.5% 73,103 73,535
70% 70.4% 63,965 64,336
60% 59.7% 54,827 54,511
50% 50.2% 45,689 45,911
40% 40.1% 36,551 36,662
30% 29.8% 27,413 27,249
20% 19.8% 18,276 18,064
10% 9.8% 9,138 8,920
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,236
Calibration 2     89,124
Calibration 3     89,074
ssj_ops@calibrated=89,099
100% 98.8% 89,099 88,031
90% 90.0% 80,189 80,177
80% 79.4% 71,279 70,740
70% 70.1% 62,369 62,481
60% 60.0% 53,459 53,488
50% 50.5% 44,550 45,000
40% 40.1% 35,640 35,706
30% 30.3% 26,730 27,030
20% 21.0% 17,820 18,711
10% 9.9% 8,910 8,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,176
Calibration 2     88,390
Calibration 3     87,959
ssj_ops@calibrated=88,174
100% 100.6% 88,174 88,708
90% 90.3% 79,357 79,665
80% 80.5% 70,539 70,954
70% 70.4% 61,722 62,035
60% 60.2% 52,905 53,075
50% 49.2% 44,087 43,377
40% 40.1% 35,270 35,355
30% 30.1% 26,452 26,560
20% 19.8% 17,635 17,496
10% 10.3% 8,817 9,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,675
Calibration 2     89,657
Calibration 3     89,491
ssj_ops@calibrated=89,574
100% 99.8% 89,574 89,362
90% 90.1% 80,617 80,685
80% 80.5% 71,659 72,119
70% 70.0% 62,702 62,734
60% 59.3% 53,744 53,090
50% 50.2% 44,787 44,945
40% 40.0% 35,830 35,851
30% 29.7% 26,872 26,614
20% 20.0% 17,915 17,885
10% 10.0% 8,957 8,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,110
Calibration 2     91,309
Calibration 3     91,315
ssj_ops@calibrated=91,312
100% 99.6% 91,312 90,945
90% 89.7% 82,181 81,875
80% 79.8% 73,050 72,869
70% 69.6% 63,919 63,519
60% 60.5% 54,787 55,199
50% 50.3% 45,656 45,923
40% 40.5% 36,525 36,968
30% 29.5% 27,394 26,902
20% 20.3% 18,262 18,541
10% 9.8% 9,131 8,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

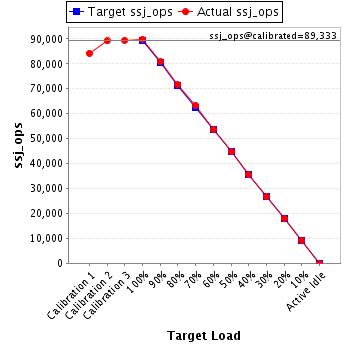

JVM 'WIN-S5D1BAVP3PA.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,216
Calibration 2     89,206
Calibration 3     89,460
ssj_ops@calibrated=89,333
100% 100.7% 89,333 89,920
90% 90.5% 80,400 80,803
80% 80.1% 71,466 71,554
70% 70.8% 62,533 63,291
60% 60.2% 53,600 53,794
50% 50.1% 44,666 44,732
40% 39.8% 35,733 35,528
30% 29.8% 26,800 26,612
20% 20.1% 17,867 17,949
10% 10.3% 8,933 9,166
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

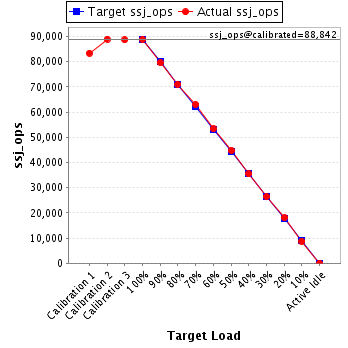

JVM 'WIN-S5D1BAVP3PA.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,427
Calibration 2     88,977
Calibration 3     88,707
ssj_ops@calibrated=88,842
100% 100.0% 88,842 88,831
90% 89.6% 79,958 79,608
80% 80.0% 71,074 71,075
70% 71.0% 62,189 63,063
60% 60.0% 53,305 53,313
50% 50.4% 44,421 44,793
40% 39.9% 35,537 35,447
30% 29.8% 26,653 26,482
20% 20.4% 17,768 18,079
10% 9.9% 8,884 8,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

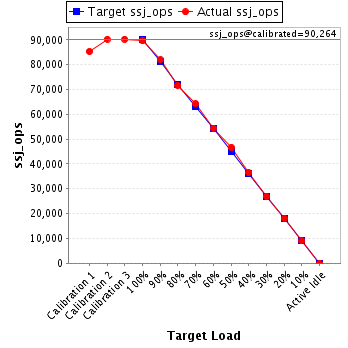

JVM 'WIN-S5D1BAVP3PA.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,321
Calibration 2     90,252
Calibration 3     90,276
ssj_ops@calibrated=90,264
100% 99.2% 90,264 89,559
90% 90.8% 81,238 81,961
80% 79.4% 72,211 71,668
70% 71.2% 63,185 64,254
60% 60.3% 54,158 54,470
50% 51.8% 45,132 46,737
40% 40.4% 36,106 36,490
30% 30.0% 27,079 27,061
20% 20.1% 18,053 18,161
10% 10.0% 9,026 9,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,263
Calibration 2     89,572
Calibration 3     89,485
ssj_ops@calibrated=89,529
100% 100.1% 89,529 89,636
90% 89.6% 80,576 80,239
80% 80.1% 71,623 71,743
70% 69.7% 62,670 62,391
60% 60.2% 53,717 53,915
50% 50.1% 44,764 44,855
40% 39.5% 35,812 35,340
30% 29.7% 26,859 26,580
20% 20.0% 17,906 17,891
10% 9.9% 8,953 8,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,987
Calibration 2     90,798
Calibration 3     90,907
ssj_ops@calibrated=90,852
100% 98.9% 90,852 89,851
90% 89.9% 81,767 81,716
80% 80.0% 72,682 72,708
70% 70.7% 63,597 64,233
60% 60.5% 54,511 54,922
50% 50.4% 45,426 45,744
40% 40.5% 36,341 36,770
30% 29.7% 27,256 26,986
20% 19.9% 18,170 18,049
10% 9.5% 9,085 8,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,152
Calibration 2     87,963
Calibration 3     87,938
ssj_ops@calibrated=87,950
100% 98.8% 87,950 86,878
90% 89.5% 79,155 78,741
80% 79.2% 70,360 69,647
70% 69.4% 61,565 61,018
60% 61.1% 52,770 53,757
50% 51.4% 43,975 45,205
40% 39.8% 35,180 35,008
30% 30.0% 26,385 26,355
20% 20.2% 17,590 17,774
10% 9.6% 8,795 8,470
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,566
Calibration 2     89,479
Calibration 3     88,916
ssj_ops@calibrated=89,198
100% 99.4% 89,198 88,703
90% 89.8% 80,278 80,138
80% 79.4% 71,358 70,821
70% 69.1% 62,438 61,598
60% 60.4% 53,519 53,903
50% 50.9% 44,599 45,429
40% 39.7% 35,679 35,418
30% 30.3% 26,759 27,054
20% 19.8% 17,840 17,678
10% 9.8% 8,920 8,773
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,518
Calibration 2     91,118
Calibration 3     90,911
ssj_ops@calibrated=91,014
100% 99.9% 91,014 90,882
90% 90.3% 81,913 82,169
80% 79.8% 72,811 72,635
70% 70.5% 63,710 64,127
60% 59.1% 54,609 53,826
50% 50.0% 45,507 45,488
40% 40.2% 36,406 36,575
30% 30.0% 27,304 27,296
20% 20.1% 18,203 18,335
10% 10.0% 9,101 9,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,194
Calibration 2     90,487
Calibration 3     90,413
ssj_ops@calibrated=90,450
100% 99.8% 90,450 90,294
90% 90.6% 81,405 81,963
80% 80.2% 72,360 72,584
70% 69.4% 63,315 62,774
60% 59.4% 54,270 53,722
50% 50.8% 45,225 45,937
40% 39.2% 36,180 35,494
30% 30.1% 27,135 27,261
20% 20.0% 18,090 18,108
10% 9.9% 9,045 8,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,406
Calibration 2     87,195
Calibration 3     86,729
ssj_ops@calibrated=86,962
100% 99.7% 86,962 86,689
90% 90.8% 78,266 78,928
80% 79.0% 69,569 68,709
70% 70.1% 60,873 60,917
60% 59.6% 52,177 51,849
50% 50.5% 43,481 43,886
40% 40.4% 34,785 35,164
30% 30.1% 26,089 26,186
20% 20.5% 17,392 17,816
10% 10.0% 8,696 8,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,516
Calibration 2     90,947
Calibration 3     91,223
ssj_ops@calibrated=91,085
100% 99.6% 91,085 90,766
90% 90.4% 81,977 82,369
80% 80.3% 72,868 73,159
70% 69.8% 63,760 63,580
60% 59.9% 54,651 54,523
50% 49.8% 45,543 45,392
40% 40.5% 36,434 36,876
30% 29.9% 27,326 27,220
20% 19.3% 18,217 17,535
10% 9.9% 9,109 8,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,971
Calibration 2     90,143
Calibration 3     90,046
ssj_ops@calibrated=90,094
100% 99.1% 90,094 89,251
90% 90.7% 81,085 81,749
80% 80.3% 72,075 72,334
70% 70.6% 63,066 63,566
60% 59.5% 54,057 53,636
50% 50.7% 45,047 45,633
40% 39.7% 36,038 35,774
30% 29.9% 27,028 26,948
20% 20.0% 18,019 18,027
10% 10.1% 9,009 9,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,297
Calibration 2     90,038
Calibration 3     90,440
ssj_ops@calibrated=90,239
100% 98.9% 90,239 89,203
90% 89.8% 81,215 81,007
80% 79.8% 72,191 72,053
70% 71.4% 63,167 64,450
60% 61.0% 54,143 55,052
50% 49.7% 45,120 44,836
40% 40.1% 36,096 36,227
30% 29.6% 27,072 26,669
20% 20.4% 18,048 18,395
10% 10.1% 9,024 9,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,693
Calibration 2     91,491
Calibration 3     91,312
ssj_ops@calibrated=91,402
100% 100.7% 91,402 92,020
90% 90.2% 82,261 82,411
80% 79.8% 73,121 72,982
70% 70.0% 63,981 63,972
60% 59.2% 54,841 54,070
50% 51.0% 45,701 46,572
40% 39.5% 36,561 36,120
30% 30.5% 27,420 27,851
20% 19.9% 18,280 18,176
10% 10.1% 9,140 9,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

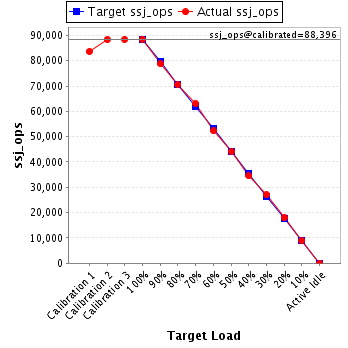

JVM 'WIN-S5D1BAVP3PA.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,623
Calibration 2     88,355
Calibration 3     88,438
ssj_ops@calibrated=88,396
100% 100.1% 88,396 88,509
90% 89.1% 79,557 78,731
80% 79.8% 70,717 70,529
70% 71.3% 61,877 63,009
60% 59.1% 53,038 52,263
50% 49.9% 44,198 44,112
40% 39.0% 35,359 34,505
30% 30.6% 26,519 27,021
20% 20.3% 17,679 17,919
10% 10.1% 8,840 8,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,932
Calibration 2     88,616
Calibration 3     87,985
ssj_ops@calibrated=88,301
100% 100.0% 88,301 88,274
90% 90.2% 79,471 79,618
80% 79.0% 70,641 69,717
70% 70.6% 61,811 62,353
60% 58.9% 52,980 52,037
50% 49.2% 44,150 43,447
40% 39.6% 35,320 34,972
30% 30.1% 26,490 26,619
20% 20.4% 17,660 18,027
10% 9.7% 8,830 8,563
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,151
Calibration 2     91,524
Calibration 3     91,112
ssj_ops@calibrated=91,318
100% 99.7% 91,318 91,072
90% 89.6% 82,186 81,791
80% 80.4% 73,054 73,422
70% 70.3% 63,922 64,207
60% 60.2% 54,791 54,982
50% 50.4% 45,659 45,990
40% 39.3% 36,527 35,931
30% 29.9% 27,395 27,264
20% 19.7% 18,264 17,957
10% 10.1% 9,132 9,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,590
Calibration 2     92,241
Calibration 3     92,255
ssj_ops@calibrated=92,248
100% 99.2% 92,248 91,471
90% 90.5% 83,023 83,492
80% 80.2% 73,798 73,980
70% 70.1% 64,574 64,648
60% 60.3% 55,349 55,668
50% 50.3% 46,124 46,357
40% 40.1% 36,899 36,982
30% 30.0% 27,674 27,669
20% 20.1% 18,450 18,530
10% 10.2% 9,225 9,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,181
Calibration 2     91,276
Calibration 3     90,884
ssj_ops@calibrated=91,080
100% 99.5% 91,080 90,600
90% 89.6% 81,972 81,612
80% 79.7% 72,864 72,583
70% 70.8% 63,756 64,530
60% 59.6% 54,648 54,296
50% 49.6% 45,540 45,152
40% 39.8% 36,432 36,273
30% 30.0% 27,324 27,298
20% 19.8% 18,216 18,054
10% 10.0% 9,108 9,094
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,156
Calibration 2     89,614
Calibration 3     89,844
ssj_ops@calibrated=89,729
100% 99.2% 89,729 89,048
90% 90.3% 80,756 81,003
80% 79.6% 71,783 71,432
70% 69.6% 62,810 62,451
60% 60.2% 53,838 54,035
50% 50.4% 44,865 45,252
40% 39.3% 35,892 35,243
30% 29.9% 26,919 26,818
20% 20.2% 17,946 18,115
10% 10.1% 8,973 9,045
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,595
Calibration 2     90,702
Calibration 3     91,115
ssj_ops@calibrated=90,908
100% 100.0% 90,908 90,905
90% 89.4% 81,818 81,312
80% 79.9% 72,727 72,617
70% 69.6% 63,636 63,282
60% 60.4% 54,545 54,933
50% 49.9% 45,454 45,360
40% 40.3% 36,363 36,601
30% 29.8% 27,273 27,136
20% 20.1% 18,182 18,228
10% 9.8% 9,091 8,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,904
Calibration 2     90,765
Calibration 3     90,837
ssj_ops@calibrated=90,801
100% 99.4% 90,801 90,263
90% 91.2% 81,721 82,842
80% 79.6% 72,641 72,302
70% 69.9% 63,561 63,467
60% 59.1% 54,481 53,698
50% 50.2% 45,401 45,548
40% 40.4% 36,320 36,648
30% 29.4% 27,240 26,690
20% 20.1% 18,160 18,266
10% 10.3% 9,080 9,383
Active Idle   0 0

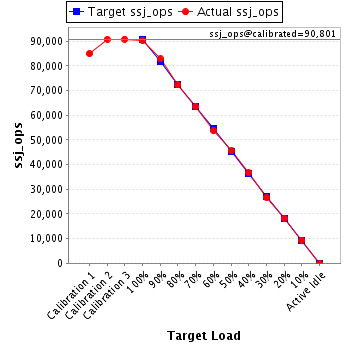

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-S5D1BAVP3PA.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,893
Calibration 2     90,854
Calibration 3     91,263
ssj_ops@calibrated=91,059
100% 100.1% 91,059 91,106
90% 89.2% 81,953 81,239
80% 80.5% 72,847 73,299
70% 70.0% 63,741 63,777
60% 60.0% 54,635 54,680
50% 50.2% 45,529 45,744
40% 40.7% 36,424 37,021
30% 30.3% 27,318 27,547
20% 20.4% 18,212 18,557
10% 10.1% 9,106 9,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
