SPECpower_ssj2008
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/RS110 (DL2) | SPECpower_ssj2008 = 3,744 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Jan 17, 2013 |
| Hardware Availability: | Nov-2012 | Software Availability: | Jun-2012 | Publication: | Mar 6, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

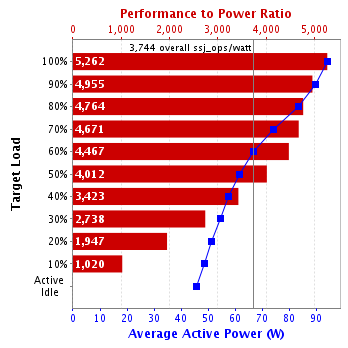

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.9% | 494,876 | 94.0 | 5,262 |
| 90% | 89.5% | 443,451 | 89.5 | 4,955 |
| 80% | 80.1% | 397,088 | 83.4 | 4,764 |
| 70% | 70.0% | 346,938 | 74.3 | 4,671 |
| 60% | 60.2% | 298,488 | 66.8 | 4,467 |
| 50% | 49.8% | 246,751 | 61.5 | 4,012 |
| 40% | 39.7% | 196,791 | 57.5 | 3,423 |
| 30% | 30.0% | 148,863 | 54.4 | 2,738 |
| 20% | 20.2% | 100,060 | 51.4 | 1,947 |
| 10% | 10.0% | 49,610 | 48.6 | 1,020 |
| Active Idle | 0 | 45.8 | 0 | |
| ∑ssj_ops / ∑power = | 3,744 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS110 (DL2) |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon E3-1280v2 |
| CPU Characteristics: | Quad Core, 3.60GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 3600 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 GB |
| Memory Details: | 4GB 2Rx8 PC3L-12800E ECC CL11; slots DIMM_#2 and DIMM_#4 populated |
| Power Supply Quantity and Rating (W): | 1 x 400 |
| Power Supply Details: | DELTA DPS-400AB-12A |
| Disk Drive: | 1 x 500GB SATA (Hitachi P/N:GQ-UH75006C) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Broadcom BCM5718 Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Power saver) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1950m -Xmx1950m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start/affinity [F,F0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1950 |
| JVM Maximum Heap (MB): | 1950 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | LU.1.00.01 |
| Management Firmware Version: | 06.33 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS110 (AH) |
| CPU Description: | Intel core i3 540 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise 32-bit SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_30-b12) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | S2012-06-50931 |
| Date of Calibration: | 12-Jun-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.5.0-ac37e4a9-20121210 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 40 mm in front of SUT main airflow intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 94.0 | 24.4 |
| 90% | 89.5 | 24.6 |
| 80% | 83.4 | 24.5 |
| 70% | 74.3 | 24.4 |
| 60% | 66.8 | 24.1 |
| 50% | 61.5 | 23.9 |
| 40% | 57.5 | 23.8 |
| 30% | 54.4 | 23.6 |
| 20% | 51.4 | 23.5 |
| 10% | 48.6 | 23.4 |
| Active Idle | 45.8 | 23.2 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 100V / 50 Hz / 1 phase / 2 wires | 23.2 | 105 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 492,312 | ||
| Calibration 2 | 496,106 | ||
| Calibration 3 | 494,899 | ||
| ssj_ops@calibrated=495,503 | |||
| 100% | 99.9% | 495,503 | 494,876 |
| 90% | 89.5% | 445,952 | 443,451 |
| 80% | 80.1% | 396,402 | 397,088 |
| 70% | 70.0% | 346,852 | 346,938 |
| 60% | 60.2% | 297,302 | 298,488 |
| 50% | 49.8% | 247,751 | 246,751 |
| 40% | 39.7% | 198,201 | 196,791 |
| 30% | 30.0% | 148,651 | 148,863 |
| 20% | 20.2% | 99,101 | 100,060 |
| 10% | 10.0% | 49,550 | 49,610 |
| Active Idle | 0 | 0 | |
