SPECpower_ssj2008
Host 'WIN-O7O6EHP5IVF' Performance Report
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/RS110 (DL2) | ssj_ops@100% = 494,876 ssj_ops@100% per JVM = 247,438 |
||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Jan 17, 2013 |
| Hardware Availability: | Nov-2012 | Software Availability: | Jun-2012 | Publication: | Mar 6, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

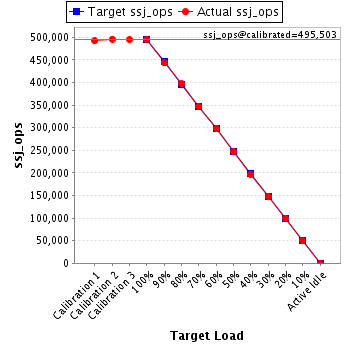

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 492,312 | ||
| Calibration 2 | 496,106 | ||
| Calibration 3 | 494,899 | ||
| ssj_ops@calibrated=495,503 | |||
| 100% | 99.9% | 495,503 | 494,876 |
| 90% | 89.5% | 445,952 | 443,451 |
| 80% | 80.1% | 396,402 | 397,088 |
| 70% | 70.0% | 346,852 | 346,938 |
| 60% | 60.2% | 297,302 | 298,488 |
| 50% | 49.8% | 247,751 | 246,751 |
| 40% | 39.7% | 198,201 | 196,791 |
| 30% | 30.0% | 148,651 | 148,863 |
| 20% | 20.2% | 99,101 | 100,060 |
| 10% | 10.0% | 49,550 | 49,610 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS110 (DL2) |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon E3-1280v2 |
| CPU Characteristics: | Quad Core, 3.60GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 3600 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 GB |
| Memory Details: | 4GB 2Rx8 PC3L-12800E ECC CL11; slots DIMM_#2 and DIMM_#4 populated |
| Power Supply Quantity and Rating (W): | 1 x 400 |
| Power Supply Details: | DELTA DPS-400AB-12A |
| Disk Drive: | 1 x 500GB SATA (Hitachi P/N:GQ-UH75006C) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Broadcom BCM5718 Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Power saver) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1950m -Xmx1950m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start/affinity [F,F0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1950 |
| JVM Maximum Heap (MB): | 1950 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | LU.1.00.01 |
| Management Firmware Version: | 06.33 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |

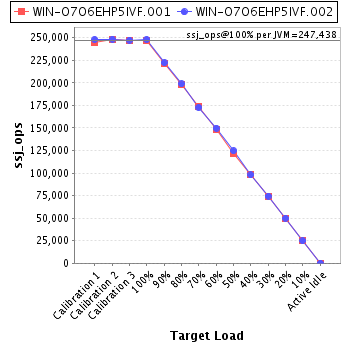

| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-O7O6EHP5IVF.001 | 246,798 |
| WIN-O7O6EHP5IVF.002 | 248,079 |
| ssj_ops@100% | 494,876 |
| ssj_ops@100% per JVM | 247,438 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 244,210 | ||
| Calibration 2 | 247,685 | ||
| Calibration 3 | 247,423 | ||
| ssj_ops@calibrated=247,554 | |||
| 100% | 99.7% | 247,554 | 246,798 |
| 90% | 89.4% | 222,799 | 221,221 |
| 80% | 80.1% | 198,043 | 198,308 |
| 70% | 70.4% | 173,288 | 174,208 |
| 60% | 60.1% | 148,532 | 148,679 |
| 50% | 49.4% | 123,777 | 122,206 |
| 40% | 40.0% | 99,022 | 98,927 |
| 30% | 30.0% | 74,266 | 74,373 |
| 20% | 20.2% | 49,511 | 49,968 |
| 10% | 10.0% | 24,755 | 24,745 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 248,102 | ||
| Calibration 2 | 248,421 | ||
| Calibration 3 | 247,476 | ||
| ssj_ops@calibrated=247,949 | |||
| 100% | 100.1% | 247,949 | 248,079 |
| 90% | 89.6% | 223,154 | 222,231 |
| 80% | 80.2% | 198,359 | 198,779 |
| 70% | 69.7% | 173,564 | 172,730 |
| 60% | 60.4% | 148,769 | 149,809 |
| 50% | 50.2% | 123,974 | 124,546 |
| 40% | 39.5% | 99,179 | 97,864 |
| 30% | 30.0% | 74,385 | 74,490 |
| 20% | 20.2% | 49,590 | 50,092 |
| 10% | 10.0% | 24,795 | 24,864 |
| Active Idle | 0 | 0 | |
