Huawei Technologies Co., Ltd BH622 V2 ssj_ops@100% = 5,271,615
ssj_ops@100% per Host = 1,317,904
ssj_ops@100% per JVM = 164,738
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 21, 2012
Hardware Availability: Aug-2012 Software Availability: Dec-2011 Publication: Sep 5, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,295,514
Calibration 2     5,275,057
Calibration 3     5,272,246
ssj_ops@calibrated=5,273,651
100% 100.0% 5,273,651 5,271,615
90% 90.1% 4,746,286 4,749,859
80% 80.0% 4,218,921 4,219,661
70% 70.0% 3,691,556 3,689,073
60% 60.0% 3,164,191 3,166,051
50% 50.0% 2,636,826 2,636,508
40% 40.1% 2,109,461 2,112,447
30% 30.0% 1,582,095 1,580,582
20% 19.9% 1,054,730 1,051,574
10% 10.0% 527,365 528,088
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 64 128 64.0 4 32
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HuaWei Tecal E6000
Form Factor: 8U
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: P/N PW98190460
Network Switch: H3C S1008A
Network Switch Details: 8-PORT H3C Aolynk S1008A
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Huawei Technologies Co., Ltd
Model: BH622 V2
Form Factor: Blade
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.00 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2, chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1 B1, E1,F1,populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000,0xF00000000,0xF000000000,0xF0000000000,0xF00000000000,0xF000000000000,0xF0000000000000,0xF00000000000000,0xF000000000000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: V030
Management Firmware Version: 3.06
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
Host Instance Summary
Host ssj_ops@100%
WIN-4D3PEDV6SHQ 1,315,789
WIN-52Q3OCDB4QT 1,322,136
WIN-8CEFKMUV9SP 1,317,290
WIN-A4HRNJEIGML 1,316,400
ssj_ops@100% 5,271,615
ssj_ops@100% per Host 1,317,904
ssj_ops@100% per JVM 164,738

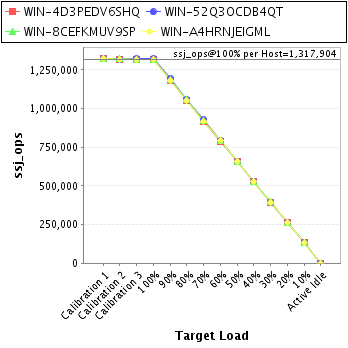

Graph of per-host results
Host 'WIN-4D3PEDV6SHQ' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,321,834
Calibration 2     1,317,128
Calibration 3     1,315,925
ssj_ops@calibrated=1,316,526
100% 99.9% 1,316,526 1,315,789
90% 89.8% 1,184,874 1,182,810
80% 80.1% 1,053,221 1,054,054
70% 69.8% 921,568 918,914
60% 60.0% 789,916 789,956
50% 50.1% 658,263 658,997
40% 40.1% 526,611 528,102
30% 30.0% 394,958 394,924
20% 19.9% 263,305 262,597
10% 10.0% 131,653 131,430
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-52Q3OCDB4QT' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,323,886
Calibration 2     1,319,038
Calibration 3     1,321,868
ssj_ops@calibrated=1,320,453
100% 100.1% 1,320,453 1,322,136
90% 90.4% 1,188,407 1,194,267
80% 79.9% 1,056,362 1,055,504
70% 70.2% 924,317 926,873
60% 59.9% 792,272 790,957
50% 49.7% 660,226 656,601
40% 39.9% 528,181 527,513
30% 29.8% 396,136 393,871
20% 19.9% 264,091 262,732
10% 10.0% 132,045 132,209
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-8CEFKMUV9SP' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,325,341
Calibration 2     1,320,630
Calibration 3     1,317,661
ssj_ops@calibrated=1,319,146
100% 99.9% 1,319,146 1,317,290
90% 90.1% 1,187,231 1,189,128
80% 80.2% 1,055,317 1,057,648
70% 70.1% 923,402 924,630
60% 60.2% 791,488 794,118
50% 50.1% 659,573 660,291
40% 40.1% 527,658 528,321
30% 30.1% 395,744 396,829
20% 20.0% 263,829 263,311
10% 10.0% 131,915 132,383
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-A4HRNJEIGML' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,324,453
Calibration 2     1,318,261
Calibration 3     1,316,792
ssj_ops@calibrated=1,317,526
100% 99.9% 1,317,526 1,316,400
90% 89.8% 1,185,774 1,183,654
80% 79.9% 1,054,021 1,052,455
70% 69.7% 922,269 918,655
60% 60.0% 790,516 791,020
50% 50.1% 658,763 660,619
40% 40.1% 527,011 528,512
30% 30.0% 395,258 394,959
20% 20.0% 263,505 262,934
10% 10.0% 131,753 132,066
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
