SPECpower_ssj2008 Host 'WIN-8CEFKMUV9SP' Performance Report

SPECpower_ssj2008

Host 'WIN-8CEFKMUV9SP' Performance Report

Huawei Technologies Co., Ltd BH622 V2			ssj_ops@100% = 1,317,290 ssj_ops@100% per JVM = 164,661
Test Sponsor:	Huawei Technologies Co., Ltd	SPEC License #:	3175	Test Method:	Multi Node
Tested By:	Huawei Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	Aug 21, 2012
Hardware Availability:	Aug-2012	Software Availability:	Dec-2011	Publication:	Sep 5, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,325,341
Calibration 2			1,320,630
Calibration 3			1,317,661
ssj_ops@calibrated=1,319,146
100%	99.9%	1,319,146	1,317,290
90%	90.1%	1,187,231	1,189,128
80%	80.2%	1,055,317	1,057,648
70%	70.1%	923,402	924,630
60%	60.2%	791,488	794,118
50%	50.1%	659,573	660,291
40%	40.1%	527,658	528,321
30%	30.1%	395,744	396,829
20%	20.0%	263,829	263,311
10%	10.0%	131,915	132,383
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	None

Hardware
Hardware Vendor:	Huawei Technologies Co., Ltd
Model:	BH622 V2
Form Factor:	Blade
CPU Name:	Intel Xeon E5-2660
CPU Characteristics:	8-Core, 2.20 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.00 GHz)
CPU Frequency (MHz):	2200
CPU(s) Enabled:	16 cores, 2 chips, 8 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1,2, chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	4 x 4 GB
Memory Details:	4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1 B1, E1,F1,populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver enabled in OS
Operating System (OS):	Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version:	R2 SP1
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options:	-server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000,0xF00000000,0xF000000000,0xF0000000000,0xF00000000000,0xF000000000000,0xF0000000000000,0xF00000000000000,0xF000000000000000]
JVM Instances:	8
JVM Initial Heap (MB):	1600
JVM Maximum Heap (MB):	1600
JVM Address Bits:	64
Boot Firmware Version:	V030
Management Firmware Version:	3.06
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Hardware prefetcher -disabled.
Adjacent Cache Line Prefetch -disabled.
DCU Streamer Prefetcher -disabled.
Intel HT Technology -enabled.
Turbo mode -enabled.
C-state -enabled.
Power Mode -Efficiency.
QPI Link Speed -6.4GT/s.
Memory Frequency Limit -1333MHz.
Demand Scrubbing -disabled.
USB configuration EHCI 2 -disabled.

Management Firmware Settings

none

System Under Test Notes

The test was started via Remote Desktop.
Minimum Processor State: 0%.
Maximum Processor State: 100%.
Turn off hard disk after 1 minute .
Each JVM instance was affinitized to four logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.

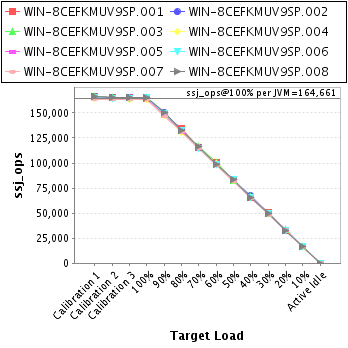

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-8CEFKMUV9SP.001	164,301
WIN-8CEFKMUV9SP.002	165,407
WIN-8CEFKMUV9SP.003	165,420
WIN-8CEFKMUV9SP.004	163,795
WIN-8CEFKMUV9SP.005	164,639
WIN-8CEFKMUV9SP.006	165,060
WIN-8CEFKMUV9SP.007	163,547
WIN-8CEFKMUV9SP.008	165,120
ssj_ops@100%	1,317,290
ssj_ops@100% per JVM	164,661

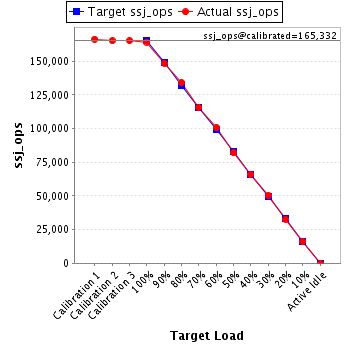

JVM 'WIN-8CEFKMUV9SP.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,436
Calibration 2			165,289
Calibration 3			165,376
ssj_ops@calibrated=165,332
100%	99.4%	165,332	164,301
90%	89.9%	148,799	148,629
80%	81.2%	132,266	134,291
70%	70.1%	115,733	115,826
60%	61.0%	99,199	100,859
50%	49.6%	82,666	82,065
40%	39.9%	66,133	65,938
30%	30.4%	49,600	50,291
20%	19.8%	33,066	32,808
10%	9.9%	16,533	16,388
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-8CEFKMUV9SP.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,600
Calibration 2			165,816
Calibration 3			165,240
ssj_ops@calibrated=165,528
100%	99.9%	165,528	165,407
90%	90.8%	148,975	150,285
80%	79.8%	132,422	132,034
70%	69.9%	115,869	115,737
60%	59.9%	99,317	99,215
50%	50.1%	82,764	82,852
40%	40.7%	66,211	67,301
30%	30.0%	49,658	49,729
20%	19.9%	33,106	32,963
10%	10.0%	16,553	16,513
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-8CEFKMUV9SP.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,527
Calibration 2			165,830
Calibration 3			165,070
ssj_ops@calibrated=165,450
100%	100.0%	165,450	165,420
90%	90.0%	148,905	148,870
80%	80.3%	132,360	132,882
70%	70.6%	115,815	116,835
60%	60.5%	99,270	100,104
50%	49.9%	82,725	82,556
40%	40.5%	66,180	66,981
30%	29.9%	49,635	49,552
20%	20.2%	33,090	33,410
10%	10.0%	16,545	16,594
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-8CEFKMUV9SP.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			164,595
Calibration 2			164,133
Calibration 3			163,664
ssj_ops@calibrated=163,899
100%	99.9%	163,899	163,795
90%	89.9%	147,509	147,352
80%	79.9%	131,119	130,902
70%	70.5%	114,729	115,610
60%	60.5%	98,339	99,105
50%	50.3%	81,949	82,424
40%	39.9%	65,560	65,344
30%	30.3%	49,170	49,684
20%	19.9%	32,780	32,685
10%	10.0%	16,390	16,353
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-8CEFKMUV9SP.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			165,781
Calibration 2			165,551
Calibration 3			164,891
ssj_ops@calibrated=165,221
100%	99.6%	165,221	164,639
90%	89.5%	148,699	147,899
80%	79.3%	132,177	131,067
70%	69.3%	115,654	114,532
60%	59.9%	99,132	98,904
50%	49.6%	82,610	81,988
40%	40.1%	66,088	66,235
30%	29.8%	49,566	49,254
20%	20.1%	33,044	33,206
10%	10.0%	16,522	16,536
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-8CEFKMUV9SP.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			164,988
Calibration 2			164,769
Calibration 3			164,537
ssj_ops@calibrated=164,653
100%	100.2%	164,653	165,060
90%	90.6%	148,188	149,247
80%	80.5%	131,722	132,621
70%	69.6%	115,257	114,634
60%	60.1%	98,792	98,985
50%	50.5%	82,327	83,073
40%	40.0%	65,861	65,919
30%	30.3%	49,396	49,818
20%	20.1%	32,931	33,141
10%	10.0%	16,465	16,480
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

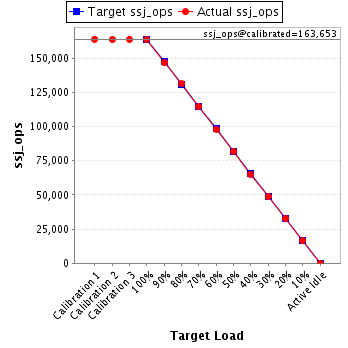

JVM 'WIN-8CEFKMUV9SP.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			163,785
Calibration 2			163,604
Calibration 3			163,702
ssj_ops@calibrated=163,653
100%	99.9%	163,653	163,547
90%	89.6%	147,287	146,620
80%	80.1%	130,922	131,028
70%	70.0%	114,557	114,573
60%	59.9%	98,192	97,991
50%	50.0%	81,826	81,773
40%	39.9%	65,461	65,225
30%	29.7%	49,096	48,610
20%	20.1%	32,731	32,863
10%	10.1%	16,365	16,457
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-8CEFKMUV9SP.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,629
Calibration 2			165,639
Calibration 3			165,182
ssj_ops@calibrated=165,410
100%	99.8%	165,410	165,120
90%	90.8%	148,869	150,227
80%	80.3%	132,328	132,822
70%	70.7%	115,787	116,883
60%	59.8%	99,246	98,955
50%	50.5%	82,705	83,561
40%	39.5%	66,164	65,378
30%	30.2%	49,623	49,891
20%	19.5%	33,082	32,235
10%	10.3%	16,541	17,061
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
