Fujitsu PRIMERGY TX100 S3p (Intel Xeon E3-1240V2) SPECpower_ssj2008 = 6,008 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jul 24, 2012
Hardware Availability: Aug-2012 Software Availability: Feb-2012 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.0% 467,481 72.5 6,450
90% 90.9% 424,747 66.6 6,375
80% 80.3% 375,400 54.1 6,936
70% 70.0% 327,257 44.0 7,437
60% 60.2% 281,359 39.3 7,158
50% 50.1% 234,401 35.1 6,669
40% 40.3% 188,429 31.7 5,937
30% 30.2% 141,085 27.9 5,065
20% 20.0% 93,414 24.1 3,869
10% 9.8% 46,010 19.9 2,317
Active Idle 0 14.1 0
∑ssj_ops / ∑power = 6,008

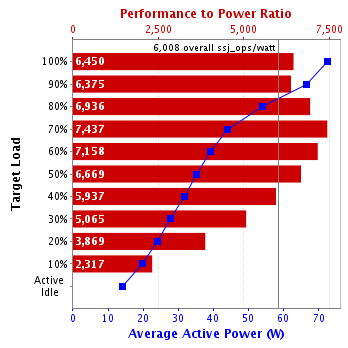

Graph of results
System Under Test
Set: 'TX100 S3p'
Set Identifier: TX100 S3p
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX100 S3p (Intel Xeon E3-1240V2)
Form Factor: Tower
CPU Name: Intel Xeon E3-1240V2
CPU Characteristics: Quad-Core, 3.40GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
CPU Frequency (MHz): 3400
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-12800E ECC CL11; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 250
Power Supply Details: Fujitsu Technology Solutions S26113-E565-V70-01
Disk Drive: 1 x 250GB, HDD, 3.5" SATA, S26361-F3701-E250
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82574L and 1 x Intel 82579LM Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise with SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_31
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0x03,0x0C,0x30,0xC0]
JVM Instances: 4
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.7.0
Management Firmware Version: None
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX100 S3
CPU Description: Pentium D 950
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2003 Enterprise Edition + SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32)
CCS Version: 1.2.5
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11080967
Date of Calibration: 03-Aug-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 8 due to a known inconsistency in processor reporting with this Java version.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 72.5 21.3
90% 66.6 21.3
80% 54.1 21.3
70% 44.0 21.3
60% 39.3 21.3
50% 35.1 21.3
40% 31.7 21.4
30% 27.9 21.4
20% 24.1 21.4
10% 19.9 21.4
Active Idle 14.1 21.4
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 21.3 117
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     467,596
Calibration 2     467,123
Calibration 3     467,862
ssj_ops@calibrated=467,492
100% 100.0% 467,492 467,481
90% 90.9% 420,743 424,747
80% 80.3% 373,994 375,400
70% 70.0% 327,245 327,257
60% 60.2% 280,495 281,359
50% 50.1% 233,746 234,401
40% 40.3% 186,997 188,429
30% 30.2% 140,248 141,085
20% 20.0% 93,498 93,414
10% 9.8% 46,749 46,010
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
