Fujitsu PRIMERGY TX140 S1p (Intel Xeon E3-1265LV2) SPECpower_ssj2008 = 5,887 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jun 14, 2012
Hardware Availability: May-2012 Software Availability: Feb-2012 Publication: Jul 11, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 417,806 55.3 7,552
90% 90.5% 379,054 52.8 7,181
80% 79.9% 334,346 46.9 7,128
70% 69.6% 291,224 40.2 7,239
60% 59.4% 248,867 36.0 6,905
50% 49.9% 209,078 33.4 6,259
40% 40.2% 168,269 30.5 5,516
30% 29.8% 124,943 28.1 4,452
20% 20.2% 84,388 25.5 3,307
10% 9.9% 41,606 22.9 1,816
Active Idle 0 18.9 0
∑ssj_ops / ∑power = 5,887

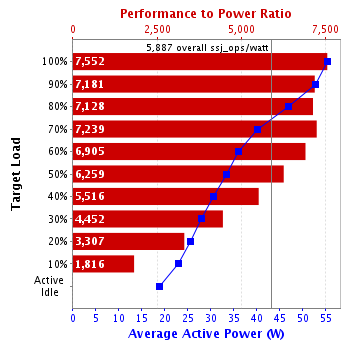

Graph of results
System Under Test
Set: 'TX140 S1p'
Set Identifier: TX140 S1p
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX140 S1p (Intel Xeon E3-1265LV2)
Form Factor: Tower
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-12800E ECC CL11; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Fujitsu Technology Solutions S26113-E581-V50-02
Disk Drive: 1 x 160GB, HDD, 2.5" SATA, S26361-F3297-E160
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82574L and 1 x Intel 82579LM Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise with SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_31
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0x03,0x0C,0x30,0xC0]
JVM Instances: 4
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.10.0
Management Firmware Version: 6.51A
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX100 S3
CPU Description: Pentium D 950
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2003 Enterprise Edition + SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32)
CCS Version: 1.2.5
Measurement Devices
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11111753
Date of Calibration: 14-Nov-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 8 due to a known inconsistency in processor reporting with this Java version.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 55.3 20.1
90% 52.8 20.1
80% 46.9 20.1
70% 40.2 20.2
60% 36.0 20.1
50% 33.4 20.1
40% 30.5 20.1
30% 28.1 20.1
20% 25.5 20.1
10% 22.9 20.1
Active Idle 18.9 20.1
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 20.1 117
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     418,955
Calibration 2     419,612
Calibration 3     417,722
ssj_ops@calibrated=418,667
100% 99.8% 418,667 417,806
90% 90.5% 376,800 379,054
80% 79.9% 334,934 334,346
70% 69.6% 293,067 291,224
60% 59.4% 251,200 248,867
50% 49.9% 209,333 209,078
40% 40.2% 167,467 168,269
30% 29.8% 125,600 124,943
20% 20.2% 83,733 84,388
10% 9.9% 41,867 41,606
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
