Fujitsu PRIMERGY TX140 S1p (Intel Xeon E3-1265LV2) ssj_ops@100% = 417,806
ssj_ops@100% per JVM = 104,452
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jun 14, 2012
Hardware Availability: May-2012 Software Availability: Feb-2012 Publication: Jul 11, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     418,955
Calibration 2     419,612
Calibration 3     417,722
ssj_ops@calibrated=418,667
100% 99.8% 418,667 417,806
90% 90.5% 376,800 379,054
80% 79.9% 334,934 334,346
70% 69.6% 293,067 291,224
60% 59.4% 251,200 248,867
50% 49.9% 209,333 209,078
40% 40.2% 167,467 168,269
30% 29.8% 125,600 124,943
20% 20.2% 83,733 84,388
10% 9.9% 41,867 41,606
Active Idle   0 0
Graph of results
System Under Test
Set: 'TX140 S1p'
Set Identifier: TX140 S1p
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX140 S1p (Intel Xeon E3-1265LV2)
Form Factor: Tower
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-12800E ECC CL11; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Fujitsu Technology Solutions S26113-E581-V50-02
Disk Drive: 1 x 160GB, HDD, 2.5" SATA, S26361-F3297-E160
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82574L and 1 x Intel 82579LM Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise with SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_31
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0x03,0x0C,0x30,0xC0]
JVM Instances: 4
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.10.0
Management Firmware Version: 6.51A
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 8 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-RPMHJC10L3A.001 104,723
WIN-RPMHJC10L3A.002 105,392
WIN-RPMHJC10L3A.003 104,248
WIN-RPMHJC10L3A.004 103,443
ssj_ops@100% 417,806
ssj_ops@100% per JVM 104,452
Graph of per-instance results
JVM 'WIN-RPMHJC10L3A.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,455
Calibration 2     104,841
Calibration 3     104,325
ssj_ops@calibrated=104,583
100% 100.1% 104,583 104,723
90% 90.0% 94,125 94,106
80% 80.0% 83,666 83,647
70% 69.3% 73,208 72,485
60% 59.6% 62,750 62,287
50% 49.5% 52,291 51,760
40% 40.9% 41,833 42,786
30% 29.6% 31,375 30,956
20% 20.2% 20,917 21,145
10% 10.3% 10,458 10,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

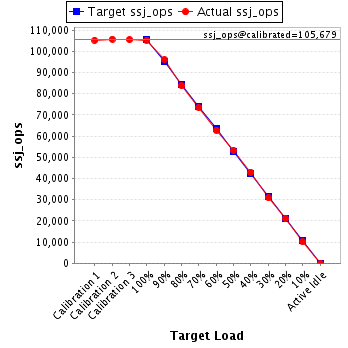

JVM 'WIN-RPMHJC10L3A.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,273
Calibration 2     105,800
Calibration 3     105,558
ssj_ops@calibrated=105,679
100% 99.7% 105,679 105,392
90% 91.0% 95,111 96,136
80% 79.3% 84,543 83,796
70% 69.7% 73,975 73,674
60% 59.4% 63,408 62,776
50% 50.5% 52,840 53,338
40% 40.7% 42,272 43,004
30% 29.3% 31,704 30,961
20% 20.0% 21,136 21,170
10% 9.6% 10,568 10,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RPMHJC10L3A.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,594
Calibration 2     104,756
Calibration 3     104,225
ssj_ops@calibrated=104,491
100% 99.8% 104,491 104,248
90% 90.7% 94,042 94,729
80% 80.4% 83,592 84,002
70% 69.7% 73,143 72,848
60% 58.9% 62,694 61,498
50% 49.8% 52,245 51,994
40% 40.2% 41,796 42,007
30% 30.3% 31,347 31,693
20% 20.1% 20,898 21,053
10% 9.8% 10,449 10,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RPMHJC10L3A.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,633
Calibration 2     104,215
Calibration 3     103,614
ssj_ops@calibrated=103,914
100% 99.5% 103,914 103,443
90% 90.5% 93,523 94,082
80% 79.8% 83,131 82,901
70% 69.5% 72,740 72,216
60% 60.0% 62,349 62,306
50% 50.0% 51,957 51,986
40% 38.9% 41,566 40,471
30% 30.2% 31,174 31,332
20% 20.2% 20,783 21,020
10% 10.1% 10,391 10,504
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
